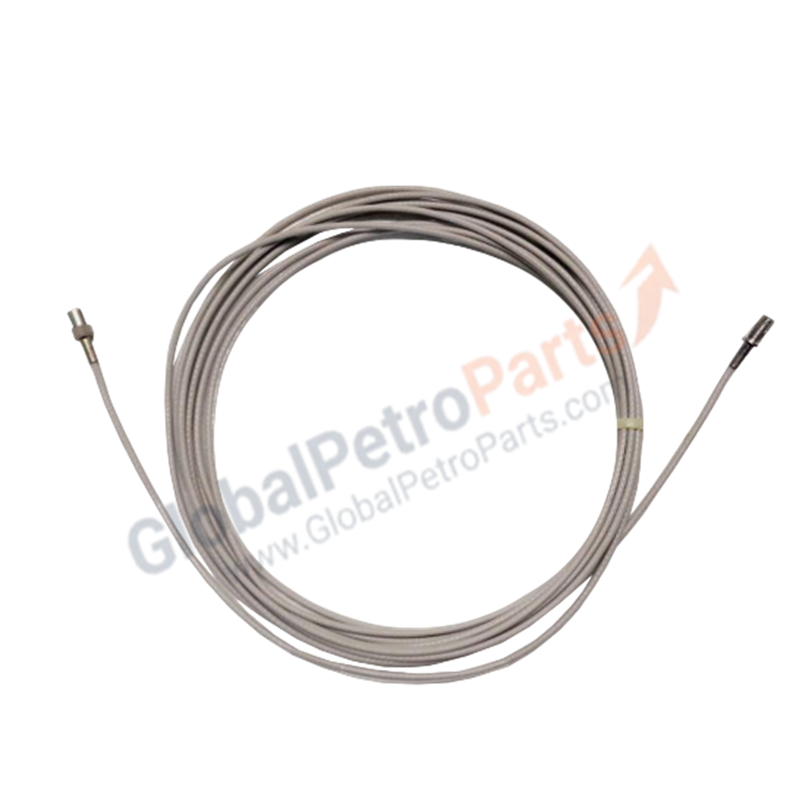

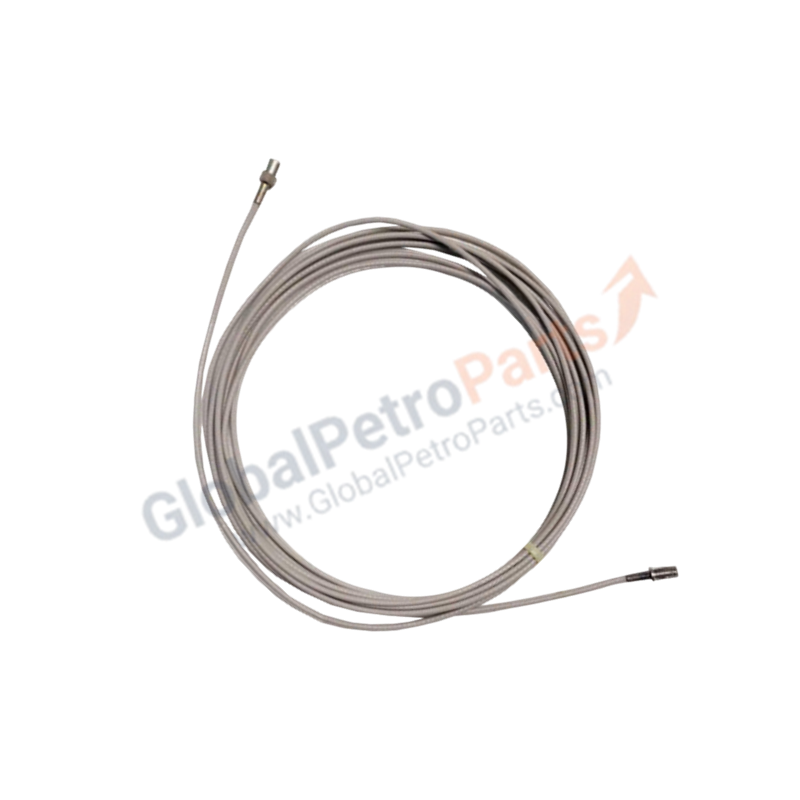

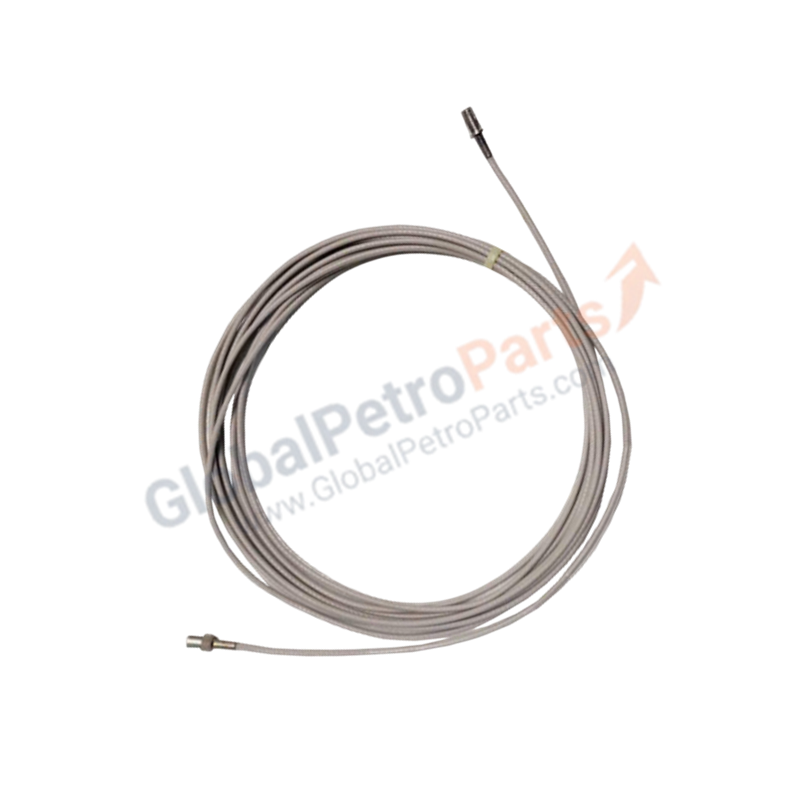

Bently Nevada 330930-045-03-CN 3300 NSv Extension Cable

Configured for signal transmission between proximity probes and monitoring instrumentation in machinery protection systems, the Bently Nevada 330930-045-03-CN (3300 NSv Extension Cable) provides direct electrical connectivity for eddy-current transducer chains.

Hardware Specifications

Rotor Dynamics and Signal Integrity

The 3300 NSv system requires precise impedance matching to maintain the integrity of the eddy-current probe scaling. This extension cable is engineered to maintain a characteristic impedance of 75 Ohm, which is critical for minimizing signal reflections that could otherwise result in erroneous gap voltage readings. Proper maintenance of the cable path is essential for accurate rotor position and vibration data acquisition. When integrating these cables into a monitoring loop, verify that the total length—inclusive of the probe lead and extension cable—aligns with the system calibration requirements to ensure the output remains within the linear range of the -10 VDC target.

Frequently Asked Questions

Q: Can the 330930-045-03-CN cable be shortened in the field?

A: No. Altering the length of the coaxial cable will change the electrical characteristics of the transducer system, specifically the capacitance and resistance. This will invalidate the system calibration and result in inaccurate vibration or position data.

Q: How should the cable connectors be protected during installation?

A: This model includes connector protectors. Ensure these are securely tightened to prevent the ingress of contaminants or oil into the connection point, which can cause signal noise or drift in the gap voltage.

Field Installation Guidelines

• Routing: Avoid running extension cables in parallel with high-voltage AC power lines to prevent electromagnetic interference (EMI). Maintain a minimum separation distance as defined by site safety standards.
• Termination: Ensure that all connections are hand-tightened. Do not use pliers or other tools that may damage the connector threads or the coaxial cable integrity.
• Grounding: Ensure the probe system is properly grounded at the monitor interface to prevent ground loops that interfere with the low-level eddy-current signals.
• Bend Radius: Maintain a minimum bend radius of 25 mm to prevent mechanical fatigue of the FEP insulation and the center conductor.
