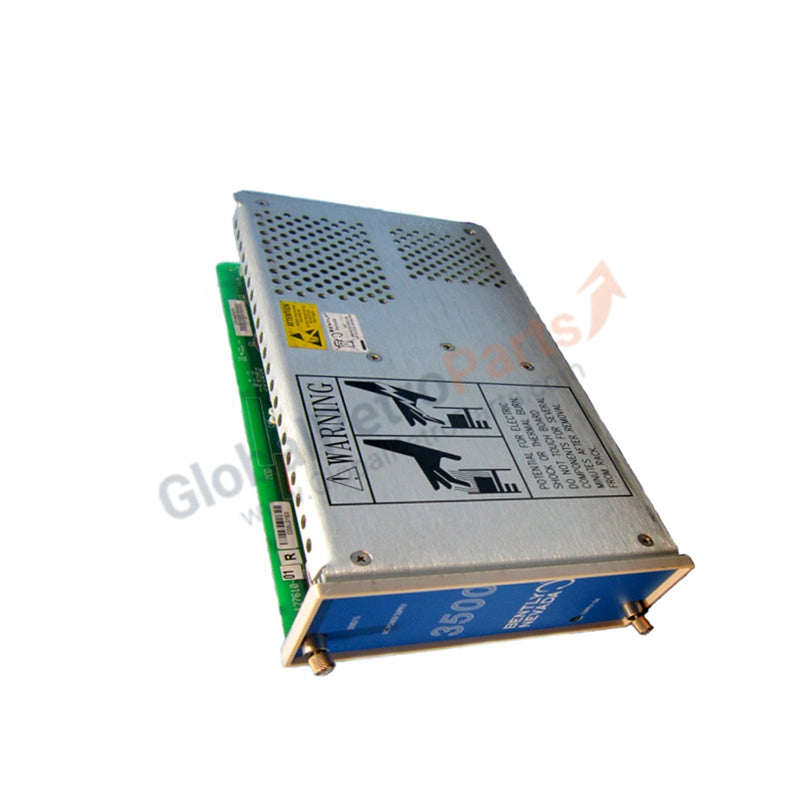

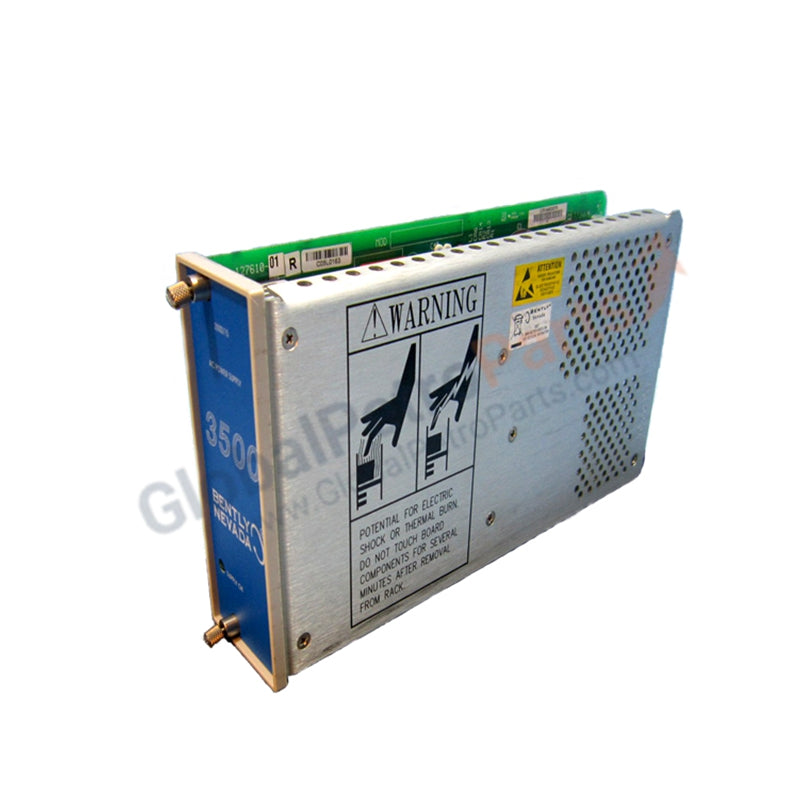

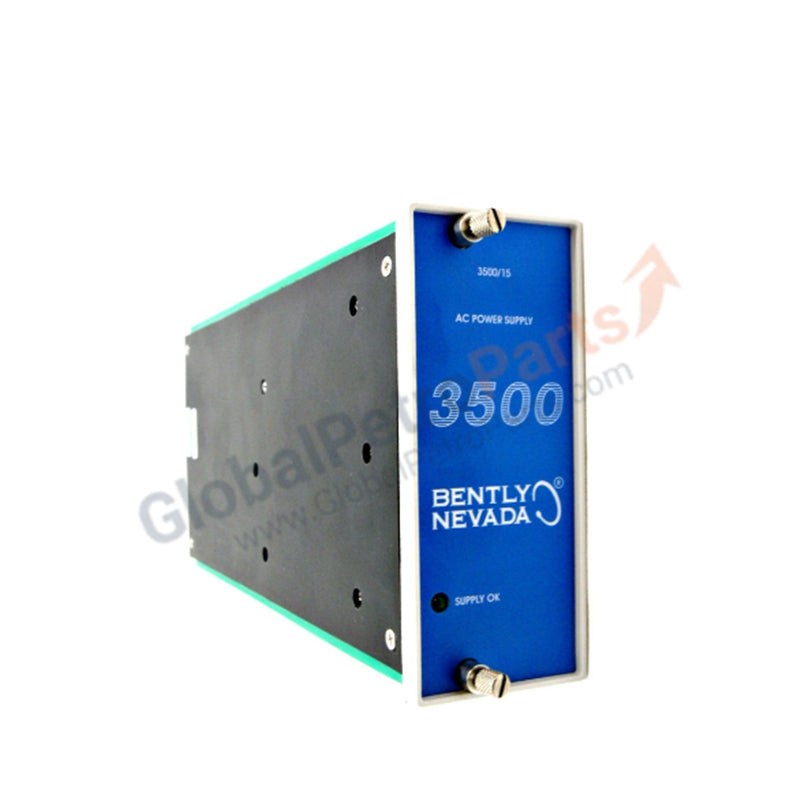

Bently Nevada 3500/15 127610-01 AC Power Supply Module

Overview

The 127610-01 AC Power Supply Module by Bently Nevada is designed for the 3500/15 Machinery Protection System. Each 3500 rack can host one or two power modules, supporting both AC and DC configurations for redundancy and reliability.

Technical Specifications

• Model: 3500/15

• Part Number: 127610-01

• Manufacturer: Bently Nevada

• Operating Voltage: 24 VDC

• Power Consumption: ~12 W

• Input Type: 4–20 mA current loop

• Input Impedance: 250 Ω

• Input Range: Adjustable

• Output: 4–20 mA current loop

• Communication Interface: Modbus RTU

• Sampling Rate: 50 Hz

• Operating Temperature Range: -20 °C to +70 °C

• Storage Temperature Range: -40 °C to +85 °C

• Protection Rating: IP20

• Dimensions (HxWxD): 13 × 26 × 6 cm

• Weight: 2 kg

• Form Factor: Half-height module

• Country of Manufacture: United States (USA)

Key Features

• Supports single or dual power module installation in 3500 racks

• Half-height design allows installation in compact rack spaces

• Adjustable input range with 4–20 mA loop ensures compatibility with various instrumentation

• Reliable operation in industrial temperature and humidity conditions

Applications

• Powers 3500/15 series machinery protection systems

• Provides redundant power for critical monitoring and protection

• Ideal for industrial plants requiring precise current loop input/output control

FAQ

Q: Can this module operate with both AC and DC racks?
A: Yes, the rack supports mixed AC/DC power module configurations.

Q: What is the recommended communication interface?
A: This module uses Modbus RTU for integration with rack monitoring systems.
