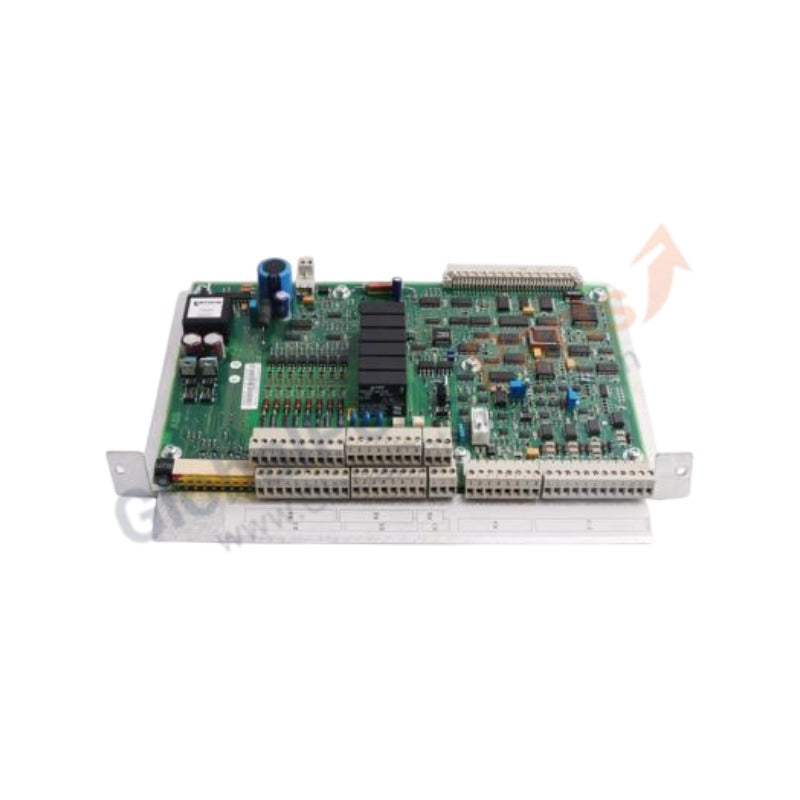

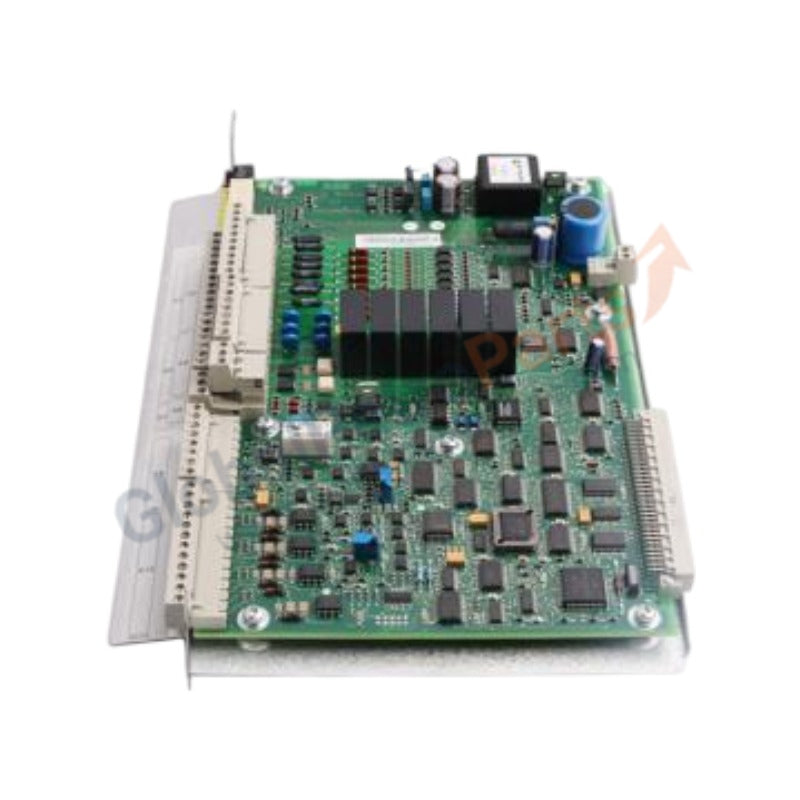

Communication Boards ABB Drive Control Systems YPQ110A 3ASD573001A5

Configured for high-speed industrial data processing and master-slave channel interfacing in ABB drive control systems, the ABB YPQ110A 3ASD573001A5 (YPQ110A Communication Board) provides direct physical/electrical execution. It coordinates parallel backplane bus transaction routines and sequences digital signal communication vectors between the main processing core and peripheral I/O links.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Flash Compatibility

The hardware subsystem interfaces directly with the processing rack through an integrated multi-pin gold-plated connector array. It maintains synchronous data frames across the internal channels by matching the exact microsecond thresholds required by backplane bus communication velocity parameters. To eliminate parity initialization blocks or buffer overflows during high-volume transfers, the card requires matching configuration rules governed by the drive assembly firmware flash compatibility baseline, preventing runtime execution faults between distributed logic levels.

Frequently Asked Questions

Q: Is the YPQ110A 3ASD573001A5 module designed to support hot-swap exchange methods?

A: No. Hot-swapping this communication card is strictly prohibited. Removing or seating the board while the backplane bus is under electrical load will interrupt systemic clock synchronization and risk permanent data degradation or driver circuit breakdown.

Q: How are transmission failure metrics monitored directly on the hardware?

A: The board features integrated diagnostic watchdog registers that monitor error-frame counters. If transmission timeouts exceed the internal timeout limit, the module triggers an interrupt line across the backplane and alters local LED fault states.

Field Installation Guidelines

• Electrostatic Mitigation Protocols: Technicians must secure an approved, grounded ESD wrist strap to a verified bare-metal chassis grounding tab before unboxing or inserting the circuit card.

• Guide Track Seating Mechanics: Align the board edges perfectly inside the chassis guide tracks. Slide the unit perpendicularly into the rack until the rear pins seal into the backplane, then lock the faceplate retention screws to 1.0 Nm.

• Signal Cable Management: Route high-speed fiber-optic linkages and copper communication cables through isolated conduit trays separated from high-voltage AC motor lines by a minimum clearance of 100 mm to suppress electromagnetic cross-talk.
