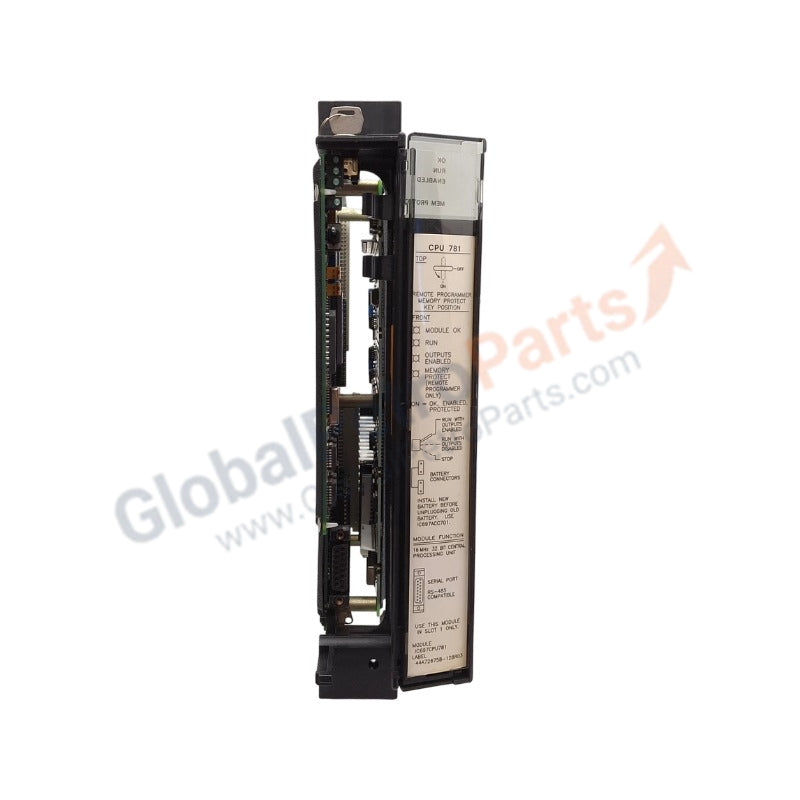

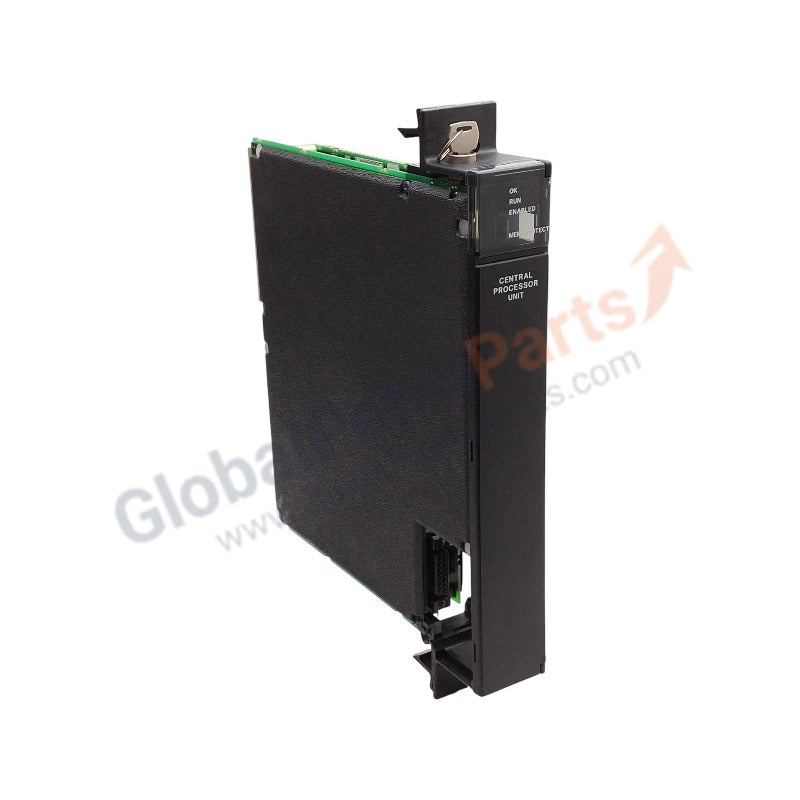

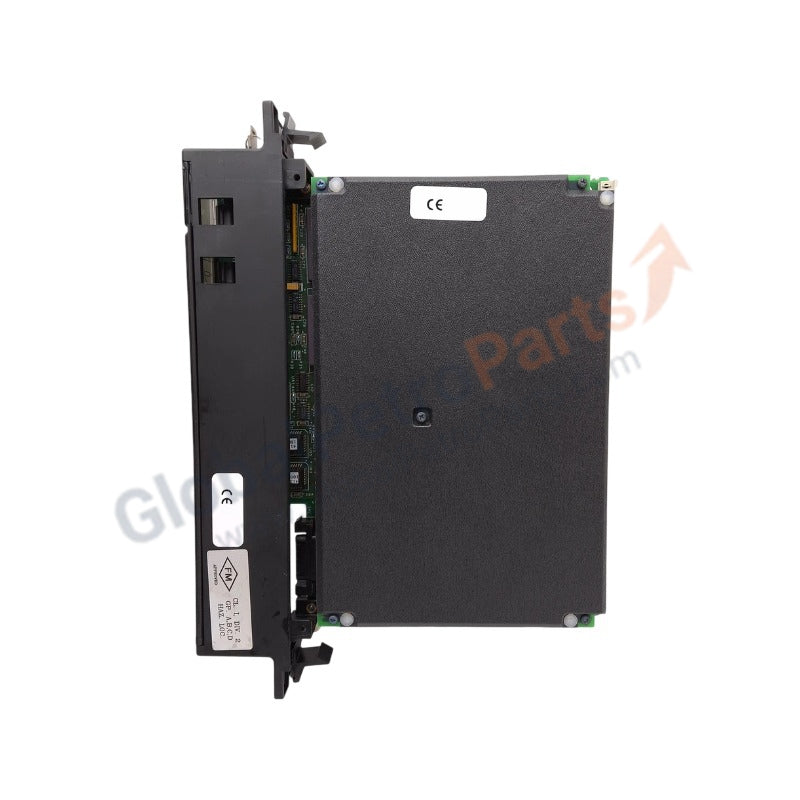

CPU Processors GE Fanuc Series 90-70 IC697CPU781

The GE Fanuc IC697CPU781 serves as the primary IC697CPU781 Central Processing Unit utilized to execute real-time control algorithms and floating-point calculations across IC697 PLC platforms. The hardware establishes direct instruction execution sequences and monitors diagnostic error registers via the parallel backplane structure while managing volatile and non-volatile application memory spaces.

Hardware Specifications

Backplane Bus Communication Velocity and Density Scaling

This processing unit interfaces directly with the parallel VME backplane structure to maximize backplane bus communication velocity during high-density I/O sweeps. The execution engine supports expanded I/O density scaling by referencing up to 12 K discrete points and 8 K analog channels without inducing scanning delays. Configuration parameters are parsed electronically upon system initialization, matching the saved hardware profile with peripheral communication nodes. The native memory map architecture maintains parallel operational execution paths, using onboard firmware flash compatibility to synchronize local logic blocks with remote distributed racks without manual hardware configuration changes.

Frequently Asked Questions

Q: What are the strict hot-swap limitations governing the insertion of the IC697CPU781 card?

A: The module lacks active hot-swap circuitry. Attempting to extract or insert the processor while the rack power supply module is active will induce transient voltage arcs across the logic pins, risking permanent erasure of volatile memory and physical degradation of the VME bus connection interfaces.

Q: How is the volatile program structure maintained during an AC supply failure?

A: Program storage relies on an external lithium battery connection routed through the front-access keyway plug. When the rack voltage drops below the 5 VDC monitoring threshold, the controller cuts off execution threads and sets volatile RAM into a low-current retention mode sustained by the battery line.

Q: What diagnostic actions occur if the lower front panel LED activates?

A: The lower LED indicates a system configuration or hardware fault sequence. When active, the processor writes specific error codes to the internal fault table and stops executing logic blocks, forcing all connected discrete outputs to their designated safe states.

Field Installation Guidelines

• Slot Allocation: The processor module must be locked exclusively into slot 1 of the primary IC697 rack assembly to enable proper VME bus arbitration and timing control.
• Ground Verification: Secure the top and bottom mechanical faceplate screws to the metallic chassis frame, verifying that a low-impedance ground path is maintained between the module enclosure and the backpanel.
• Battery Activation: Verify the voltage level of the external lithium battery pack and connect it to the front connector before applying external power to the system power supply.
• Thermal Clearance Constraints: Maintain a minimum vertical gap of 50 mm above and below the rack chassis to permit continuous convection airflow and prevent heat pocket buildup behind the module faceplate.
