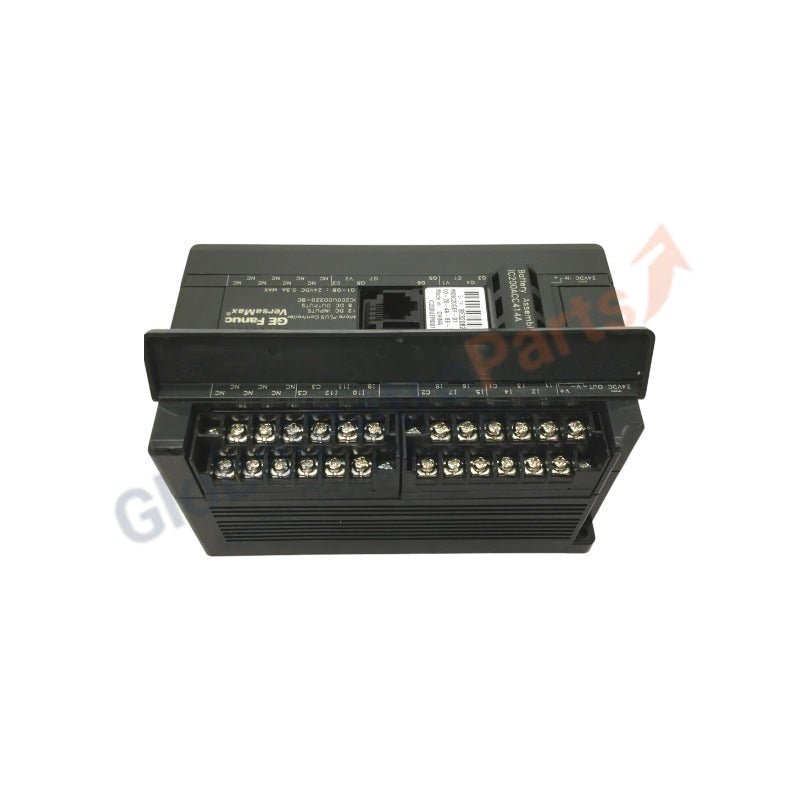

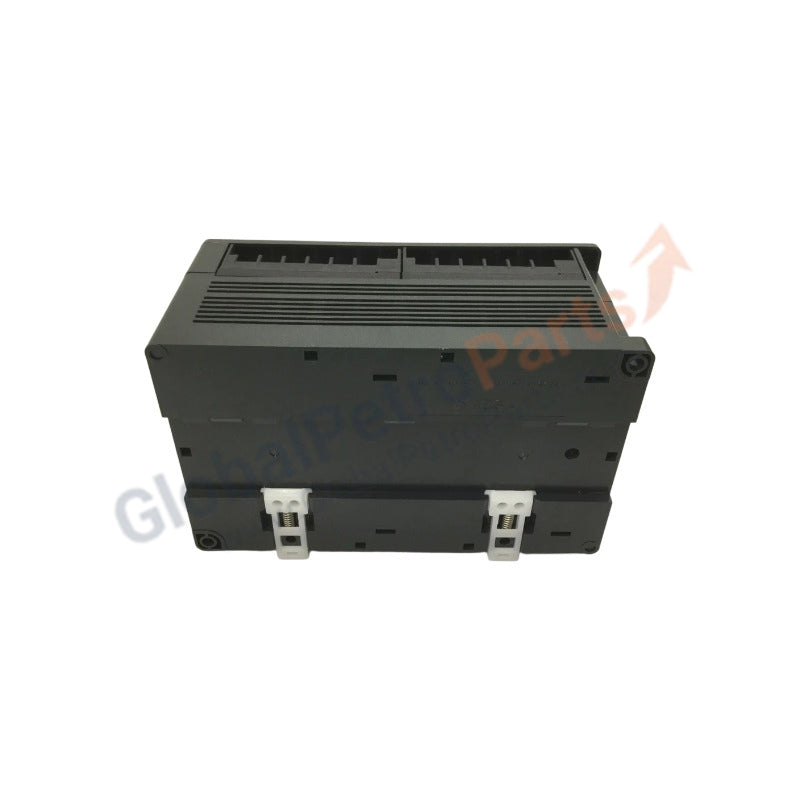

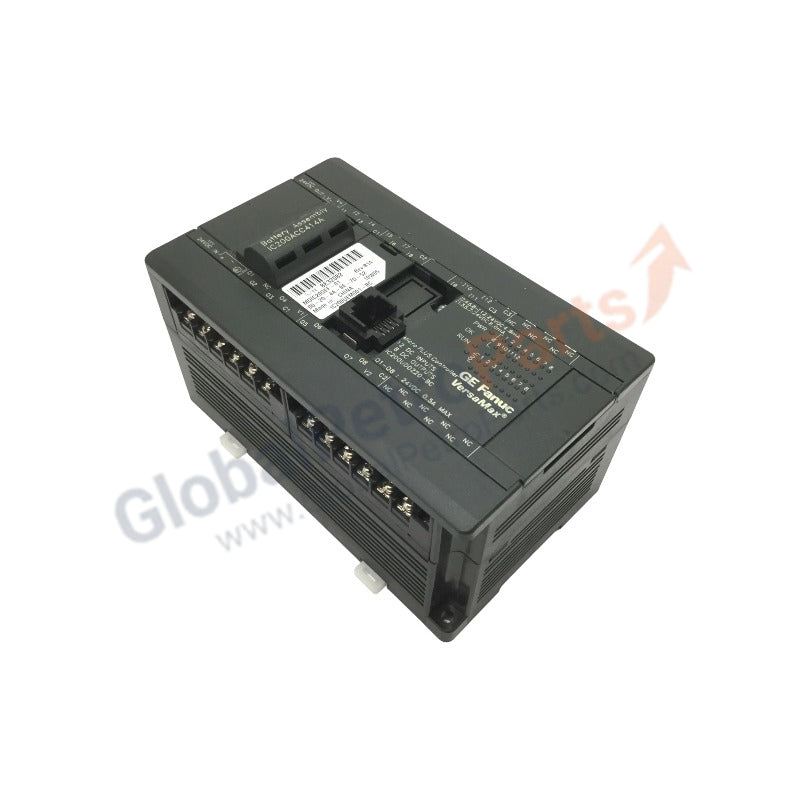

CPU Processors GE VersaMax Micro IC200UDD220

The GE IC200UDD220, also cataloged as the IC200UDD220 Micro Controller, operates as a dedicated hardware component for discrete logic processing within VersaMax Micro platforms. The hardware framework samples discrete input loops and sequences transistor output circuits, executing localized control decisions and managing state transitions across embedded memory registries.

Hardware Specifications

Deterministic Networks and Firmware Flash Compatibility

The architectural interface of the control assembly handles internal binary tracking values, enabling physical distribution onto Profinet / EtherNet/IP deterministic networks via external network expansion blocks. This communication setup facilitates modular I/O density scaling across standalone localized arrays without impacting the standard logic sweep rate. The primary processing engine relies on exact firmware flash compatibility rules implemented inside the master node to verify configuration files and sustain high-speed data transmission over localized drops.

Frequently Asked Questions

Q: Does the compact frame of the IC200UDD220 support hot-swap hardware modifications under active electrical load?

A: No. The monolithic chassis shares a direct interface across the terminal layout and internal processor paths. All auxiliary and main 24 VDC power branches must be disconnected before starting component extraction or wiring changes to prevent overcurrent degradation.

Q: How does the controller respond if the incoming power loop falls below specified operational thresholds?

A: When internal voltage validation circuits detect a line drop below 19.2 VDC, the system blocks further processing sweeps. The controller forces all 12 source transistor outputs into an off-state to prevent invalid state tracking.

Q: What mechanisms protect the processing firmware against code corruption during network configuration writes?

A: Memory write operations remain locked until a direct firmware flash compatibility handshake is validated between the diagnostic tool and the system boot sector, preventing half-written blocks or parameter logic misalignments.

Field Installation Guidelines

• Mechanical Enclosure Anchoring: Seat the controller base vertically on standard 35 mm symmetric DIN rails. Verify that the integrated spring-loaded locking clips latch completely onto the rail surface to counteract industrial vibration profiles.
• Conductor Wire Metric Constraints: Strip the outer insulation of all sensor and actuator copper wires back by exactly 5 mm before running them into the terminal block cages.
• Terminal Screw Tightening Torque: Tighten all termination screws to a uniform mechanical torque specification of 0.5 Nm to prevent high contact resistance.
• Signal Duct Layout Separation: Route low-voltage serial communications and discrete DC instrumentation lines within separate wireways isolated by at least 10 cm from inductive high-voltage AC lines.
