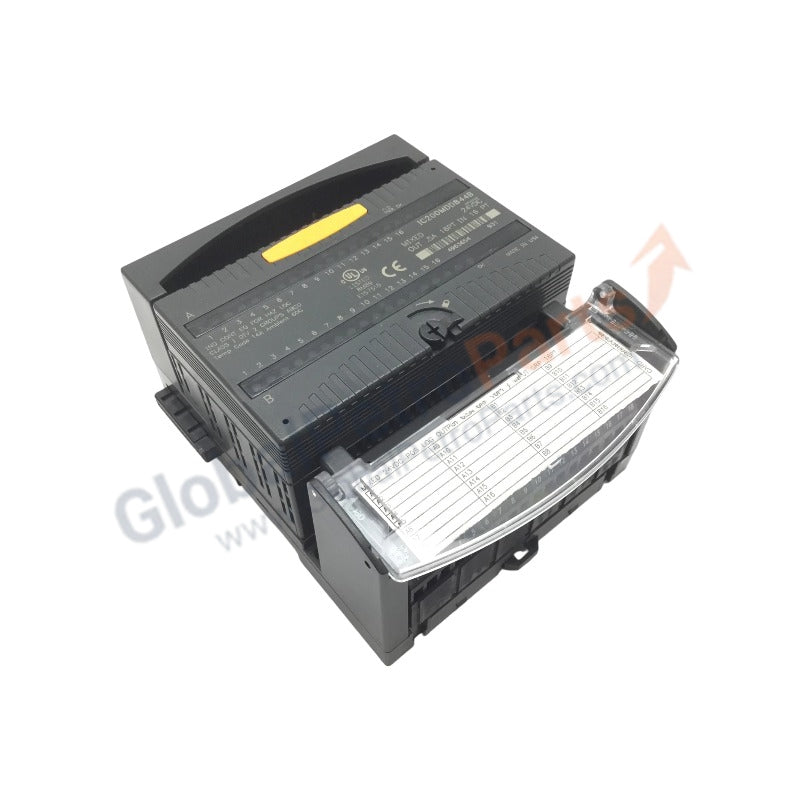

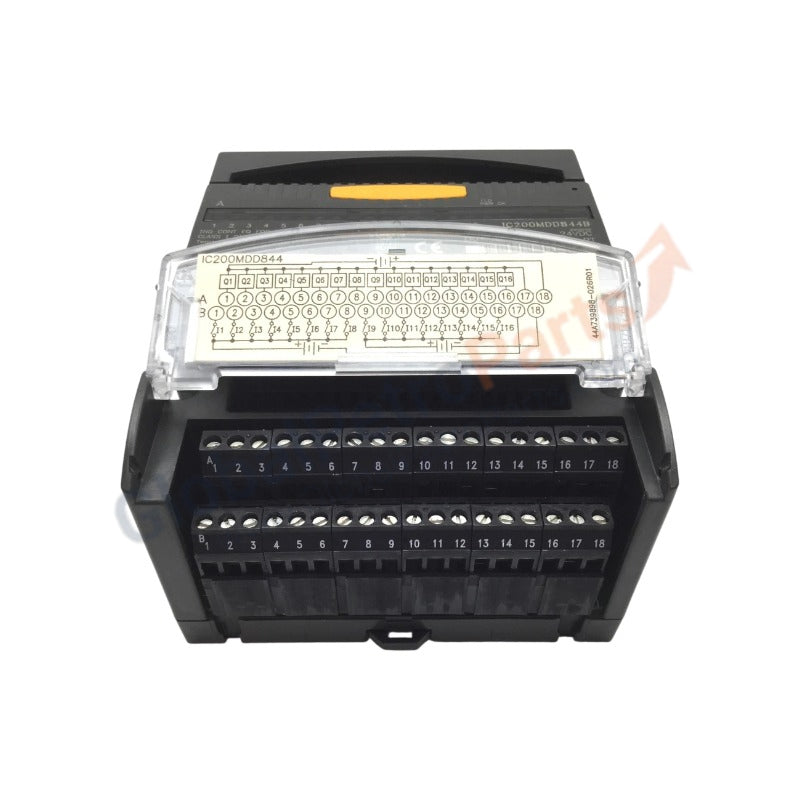

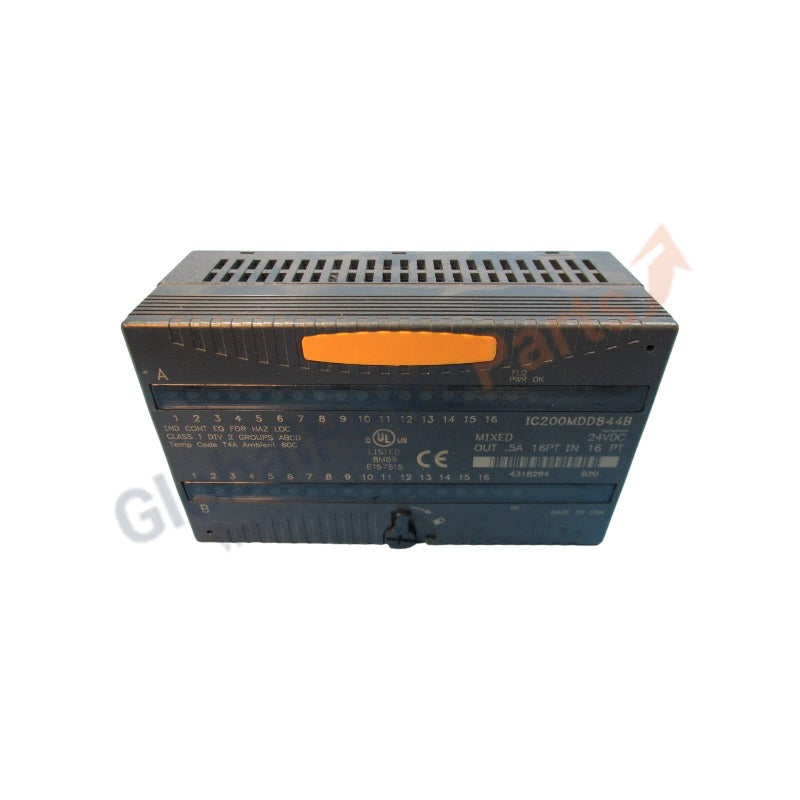

Digital I/O Cards GE VersaMax IC200MDD844 GE

The GE IC200MDD844, also cataloged as the IC200MDD844 Mixed I/O Module, operates as a dedicated hardware component for discrete signal processing within VersaMax I/O station platforms.

Hardware Specifications

Backplane Bus Communication Velocity and Determinism

The hardware platform utilizes a parallel backplane architecture to maintain fast data transmission rates between the processing unit and the I/O matrix. This design ensures strict deterministic networks during multi-channel execution sweeps, allowing simultaneous update patterns across all 16 input and 16 output nodes. The module integrates specialized logic components that maintain high I/O density scaling configuration rules, aligning data registers directly with the host PLC processor map while managing firmware flash compatibility parameters without execution latency.

Frequently Asked Questions

Q: Can the input channels be wired for both sink and source field devices?

A: Yes. The 16 discrete inputs are divided into isolated groups, allowing configuration for either positive logic (sink) or negative logic (source) wiring by matching the corresponding common terminal connection to the field power supply rail.

Q: What protection elements are integrated into the transistor output circuitry?

A: Each transistor output channel incorporates internal thermal shutdown and electronic short-circuit current limiting. If an external overload condition occurs, the affected channel disables its output path until the fault is cleared and logic resets.

Q: Is hot-swapping permitted for this mixed I/O module configuration?

A: Hot-swapping is supported only when the module is installed on a compatible VersaMax expansion carrier that explicitly provides hot-plug capabilities. The external field-side terminal block must be detached before unseating the module framework to prevent voltage transients on the backplane.

Field Installation Guidelines

• Carrier Seating Procedure: Align the module housing with the corresponding slots on the VersaMax I/O carrier base. Press firmly until the latch mechanisms click into position on the 35 mm DIN-rail assembly, verifying that the integrated grounding spring contacts the metallic rail surface.
• Shield and Wiring Control: Route all 24 VDC field input and output cabling through dedicated low-voltage wiring ducts. Maintain a physical separation of at least 100 mm from high-voltage AC lines or heavy motor drive wires to prevent cross-talk and electromagnetic interference.
• Terminal Screw Tightening: Secure all connection points on the removable terminal block assembly using a calibrated terminal driver, applying a uniform torque configuration limit of 0.5 Nm to prevent contact degradation.
