Digital I/O Cards GE VersaMax IC200MDL330

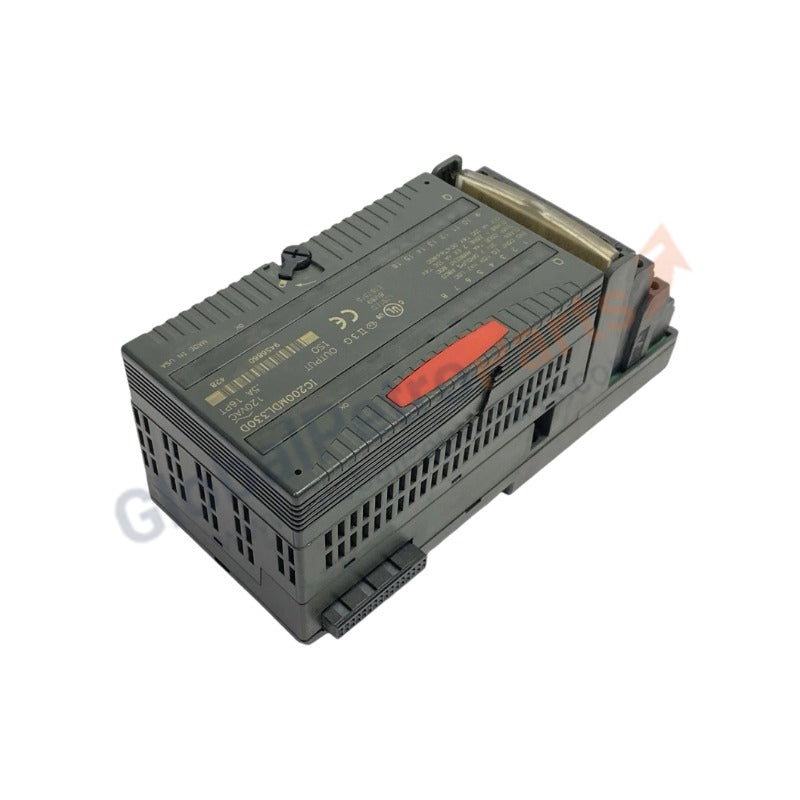

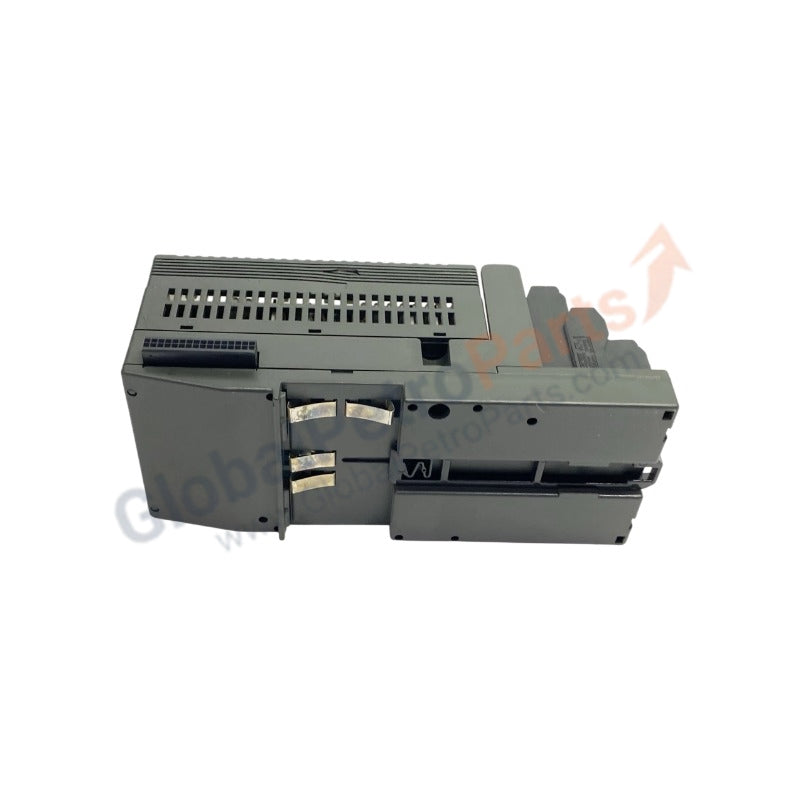

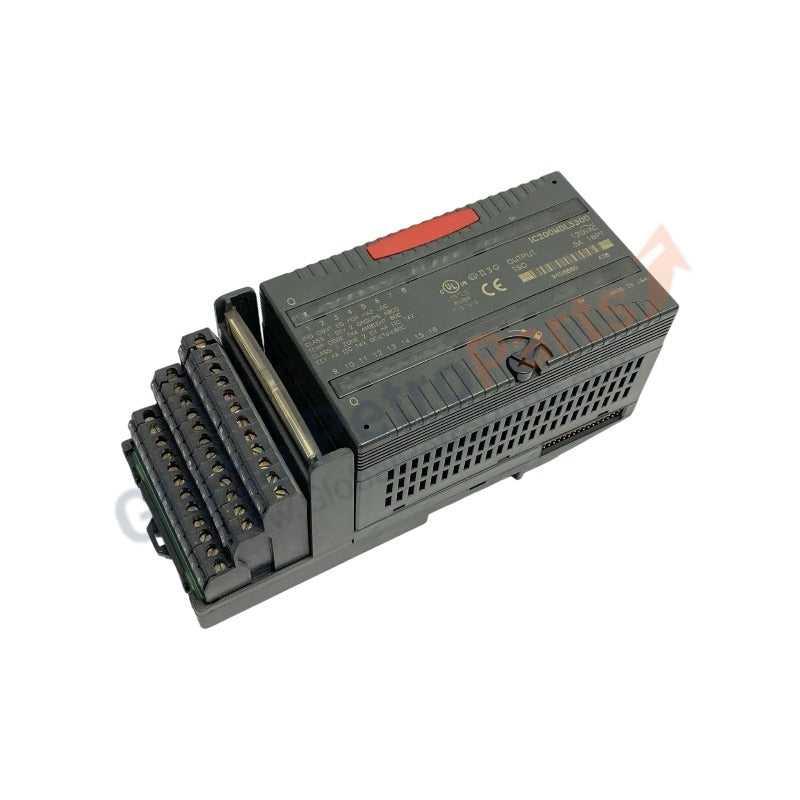

The GE IC200MDL330, also cataloged as the IC200MDL330 Discrete Output Module, operates as a dedicated hardware component for discrete load switching within VersaMax I/O station architectures.

Hardware Specifications

Backplane Bus Communication Velocity and Determinism

The hardware framework utilizes an integrated parallel connection line to interface with the active carrier backplane, maintaining data transmission synchronization during high-density scaling deployment profiles. Real-time register execution updates all 16 transistor output bits concurrently within each controller sweep, securing deterministic networks across the system sub-tier. The internal gate circuitry supports firmware flash compatibility protocols, tracking configuration changes and module status parameters directly through the primary processor register map without inserting computational scan latency.

Frequently Asked Questions

Q: How does the module handle external inductive voltage spikes from field loads?

A: Each transistor channel incorporates an internal free-wheeling clamping diode to redirect voltage transients generated during inductive load switch-off events. External suppression components are recommended for heavy inductive loads to prevent long-term hardware degradation.

Q: What are the continuous backplane current limitations under peak output switching configurations?

A: The internal logic circuits draw a maximum of 90 mA from the 5 VDC backplane bus. All load switching currents are sourced directly from the external 24 VDC field power supply connected to the terminal block.

Q: Is hot-swapping supported for this discrete output module?

A: Hot-swapping is permitted only when the hardware is installed on a compatible VersaMax carrier frame that provides hot-plug capabilities. The external field wiring terminal assembly must be unlatched and detached before removing the module to isolate field-side power from the backplane.

Field Installation Guidelines

• Carrier Mounting Sequence: Snap the module housing vertically onto the matching VersaMax I/O carrier structure secured to a standard 35 mm DIN-rail. Ensure the mechanical clip locks fully to verify that the integrated earthing tab makes solid electrical contact with the metallic rail frame.
• External Power and Common Terminal Interconnections: Connect the external 12/24 VDC field power source directly to the designated DC+ terminal and wire the system negative line to the DC common terminal on the removable terminal strip. Apply a maximum tightening torque limit of 0.5 Nm to the screw terminals.
• Cabling Layout Control: Route all discrete output control loops within isolated low-voltage cable paths. Maintain a minimum physical spacing separation boundaries of 100 mm from high-voltage AC mains lines or heavy variable frequency drive wiring to prevent inductive cross-talk.
