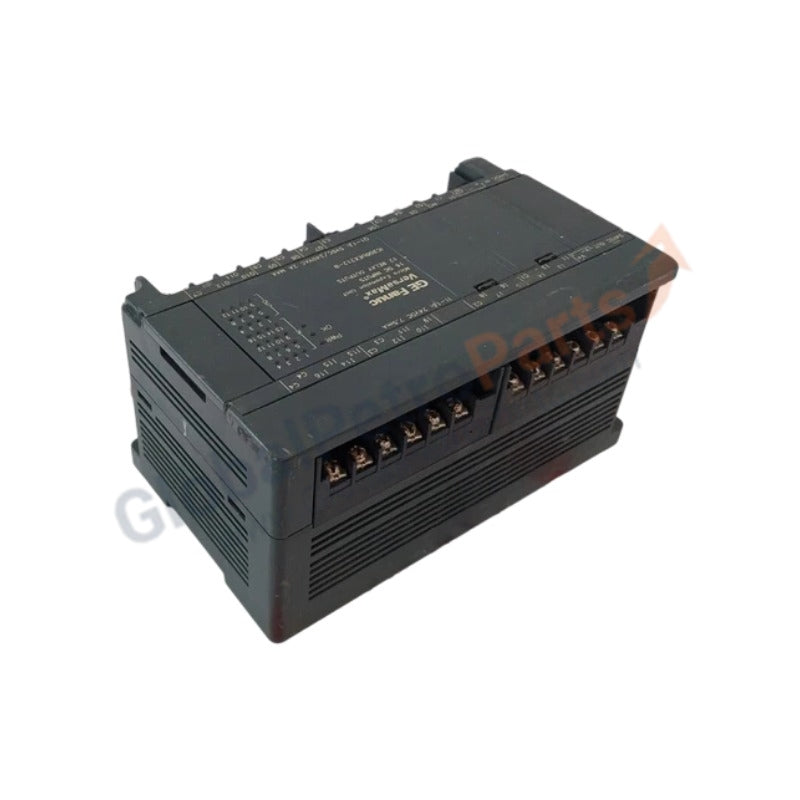

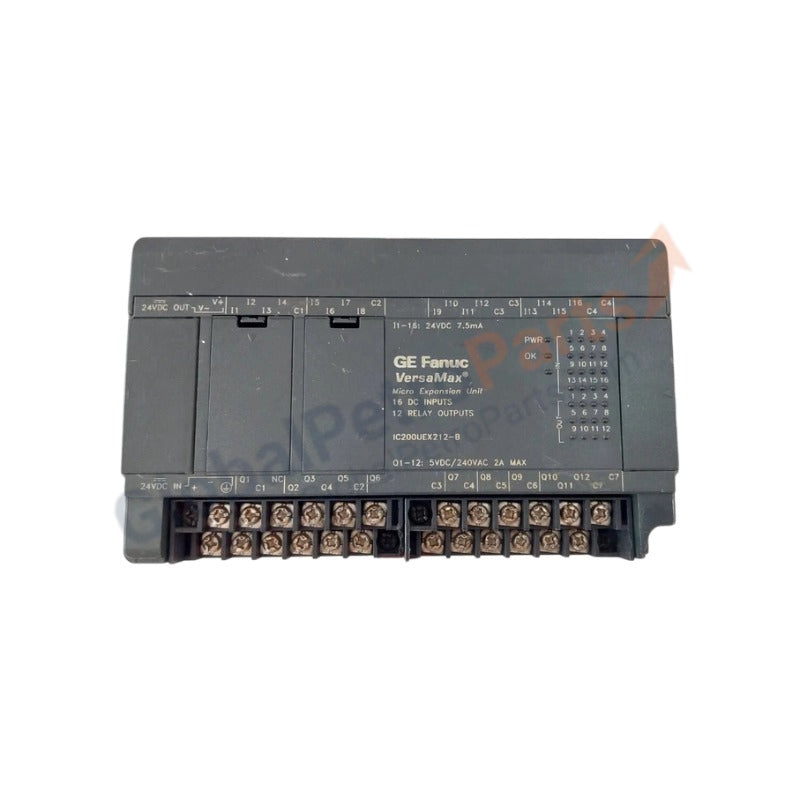

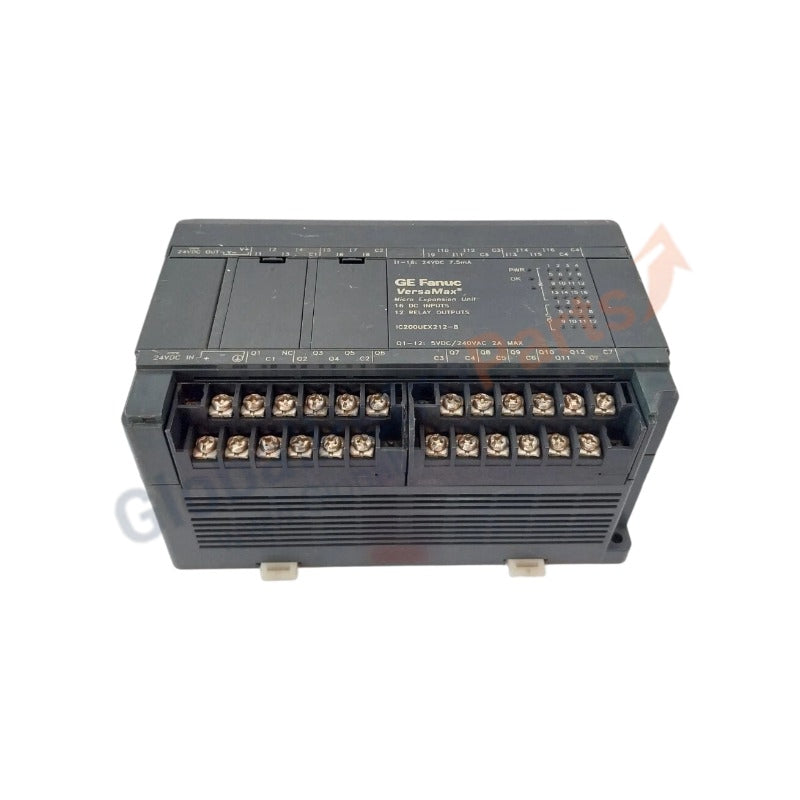

Digital I/O Cards IC200UEX212 GE VersaMax Micro

Configured for discrete signal density expansion in VersaMax Micro PLC topologies, the GE IC200UEX212 (IC200UEX212 Expansion Module) provides direct physical/electrical execution.

Hardware Specifications

Backplane Bus Communication Velocity and Determinism

The expansion module links directly to the host micro controller via the proprietary expansion bus interface, maintaining high-frequency data throughput and strict input/output density scaling. The module utilizes localized registers synchronized to the controller execution sweep to minimize loop latency. Onboard firmware flash compatibility permits verified synchronization with newer generation CPU logic blocks while preserving determinism across the local I/O bus network without hardware degradation.

Frequently Asked Questions

Q: Does the expansion bus interface support hot-swapping while the host controller is powered?

A: No, the local expansion interface does not support hot-plugging. Disconnecting or seating the expansion cable while power is applied to the host PLC or the expansion base will cause backplane data corruption and trip an internal configuration fault.

Q: What protection elements are integrated into the solid-state transistor output paths?

A: Each transistor output channel incorporates internal electronic short-circuit current limiting and thermal shutdown loops. If an external overload condition occurs, the affected channel disables its path until the fault is cleared and logic resets.

Q: How is the local I/O status indicated on the physical module chassis?

A: The housing incorporates a front-facing LED matrix containing discrete channel diagnostic lamps. Individual green indicators map out the active on/off logic states of each input point and output loop to assist during site debugging loops.

Field Installation Guidelines

• Chassis Fixation Method: Mount the module securely onto a standard 35 mm DIN-rail or execute panel mounting using the built-in screw holes. Verify that the metal chassis earthing element creates a solid low-impedance connection with the grounded mounting plate.
• Wiring Configurations: Separate the 24 VDC discrete sensor lines and transistor circuit paths from heavy 3-phase AC motor power routing inside the ducting. Use the integrated screw-clamp terminal blocks and apply a uniform torque limit of 0.5 Nm.
• Inductive Load Suppression: When switching external inductive configurations such as solenoid valve coils, deploy a parallel reverse-biased free-wheeling diode across the DC load to eliminate inductive kickback interference and protect the transistor gates.
