DO840 3BSE020838R1 | ABB S800 I/O Redundant Digital Output Module

Product Overview

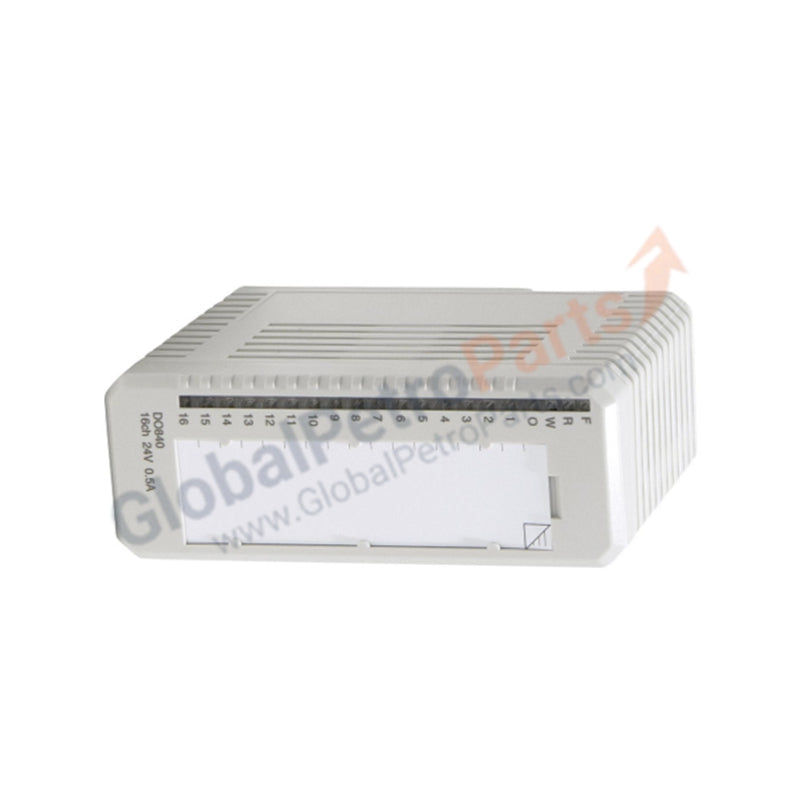

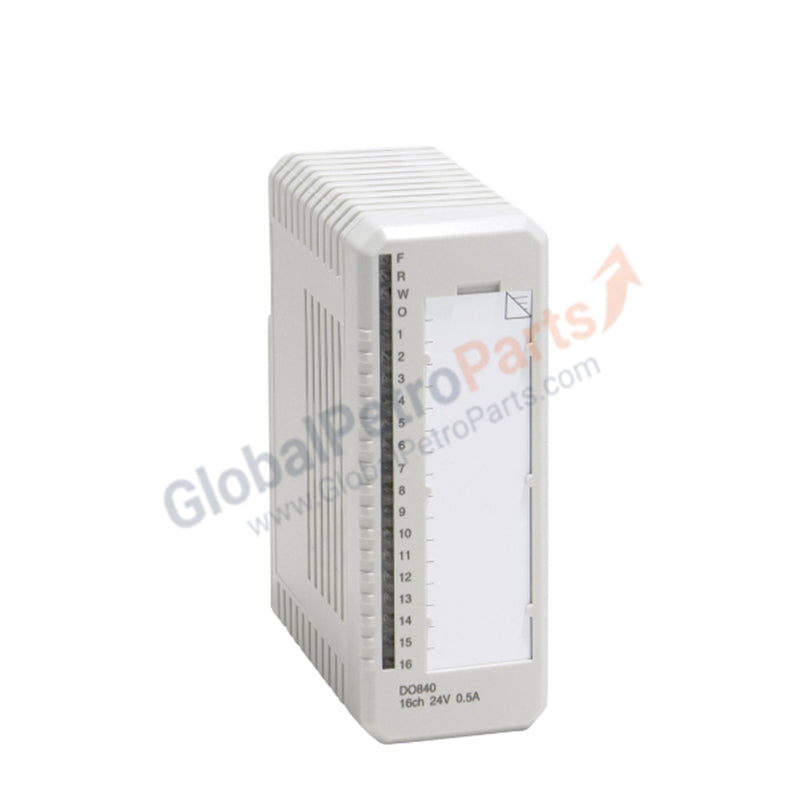

The ABB DO840 (3BSE020838R1) acts as a high-integrity 16-channel Digital Output (DO) module within the S800 I/O system. This module manages discrete signals for solenoids, relays, and motor starters with advanced precision. We supply this unit as 100% Brand New and Original, featuring built-in support for both single and redundant configurations. It provides the essential interface for AC 800M controllers to execute critical commands while maintaining continuous system availability through sophisticated internal monitoring.

Technical Specifications

The DO840 organizes 16 independent channels into two isolated groups to ensure signal purity and electrical safety:

Engineering Advantages

• Native Hardware Redundancy: The DO840 supports full hardware redundancy when paired on a compatible Module Termination Unit (MTU). If the primary module detects an internal failure, the standby module takes over the output state instantly. This eliminates process interruptions in mission-critical applications like Emergency Shutdown (ESD) or continuous chemical dosing.

• Dual-Group Electrical Isolation: The architecture isolates the 16 channels into two distinct groups of eight. This separation prevents a localized electrical fault in one field segment from propagating across the entire module, significantly improving fault tolerance in complex wiring environments.

• Advanced On-Board Diagnostics: Integrated sensors monitor the health of each output circuit in real-time. The module detects open circuits, short circuits, and over-temperature conditions, reporting these specific errors to the DCS. This allows maintenance teams to pinpoint field issues without manual point-to-point testing.

• Compact High-Density Design: The 45 mm slim profile maximizes the utilization of DIN-rail space. This design allows for high-density I/O clusters, reducing the required number of control cabinets and lowering the overall installation cost of the distributed control system.

• Versatile Termination Interface: This module interfaces with a broad range of MTUs, including the TU810, TU812, TU842, and TU852. This flexibility allows engineers to implement various termination styles—from simple screw terminals to fully redundant, fused configurations—to match specific project standards.

FAQs

• What is required to implement redundancy with the DO840?

  To utilize redundancy, you must install two DO840 modules onto a redundant Module Termination Unit, such as the TU842 or TU843. The S800 system then manages the module pairing and switchover logic automatically.

• Does the module protect against short circuits in the field?

  Yes. The DO840 includes intelligent short-circuit protection. It limits the output current and triggers a diagnostic alarm if it detects a shorted load, protecting the internal transistors and the 24V DC power supply.

• Is this a refurbished or surplus unit?

  Absolutely not. We guarantee this DO840 (3BSE020838R1) is 100% Brand New original hardware. It arrives in the original ABB factory-sealed packaging with all security labels, serial numbers, and technical documentation intact.

• Can I replace a DO840 without shutting down the controller?

  Yes. When mounted on a compatible MTU, the DO840 supports "Hot-Swap" functionality (Removal and Insertion Under Power). You can replace a faulty module while the rest of the I/O cluster remains fully operational.
