Drive Brake Chopper Modules ABB ACS800 Drives NBRA-659C

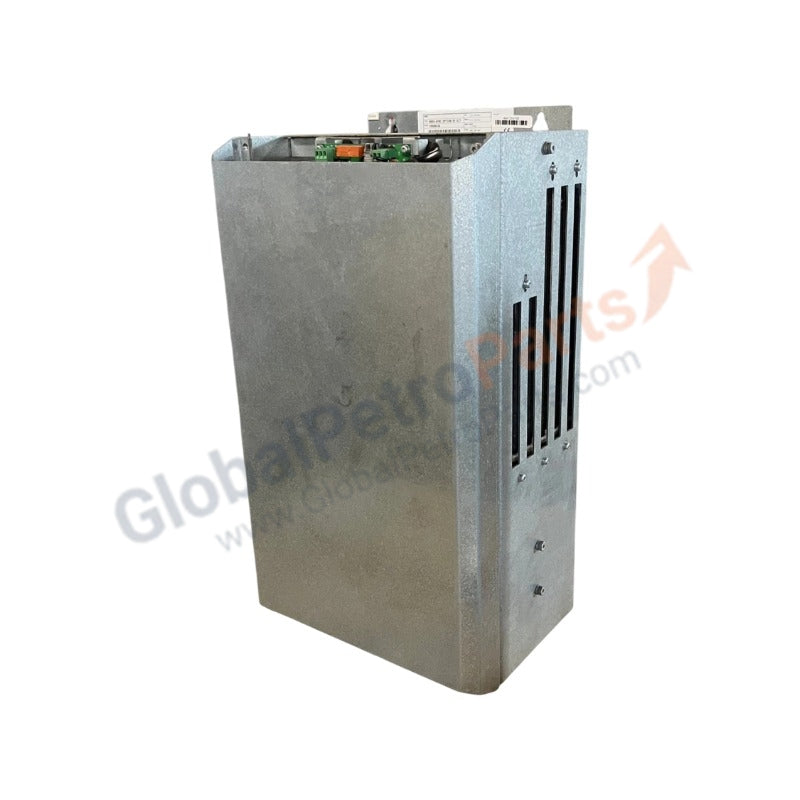

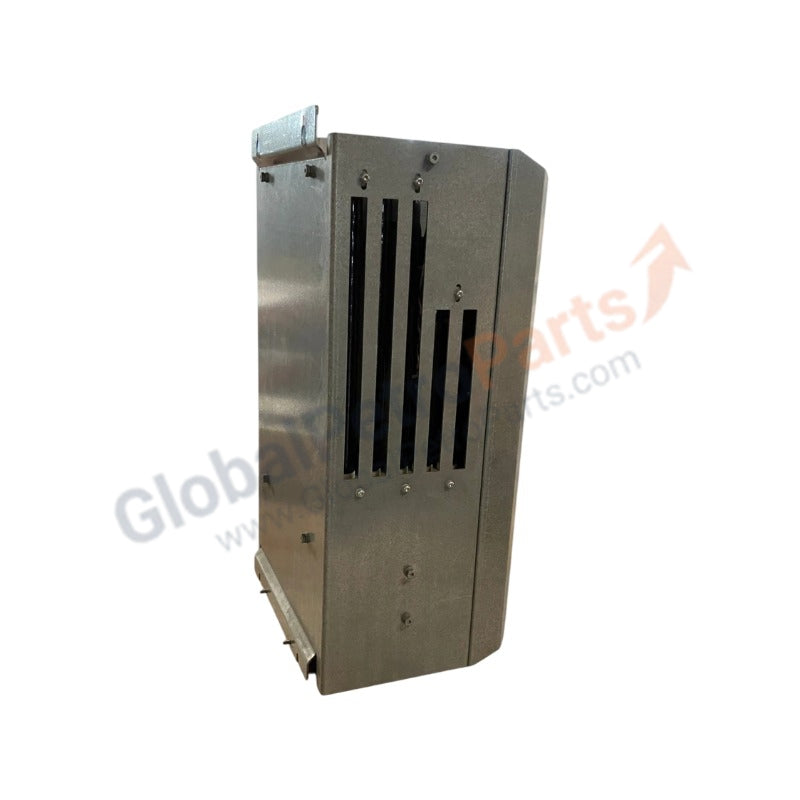

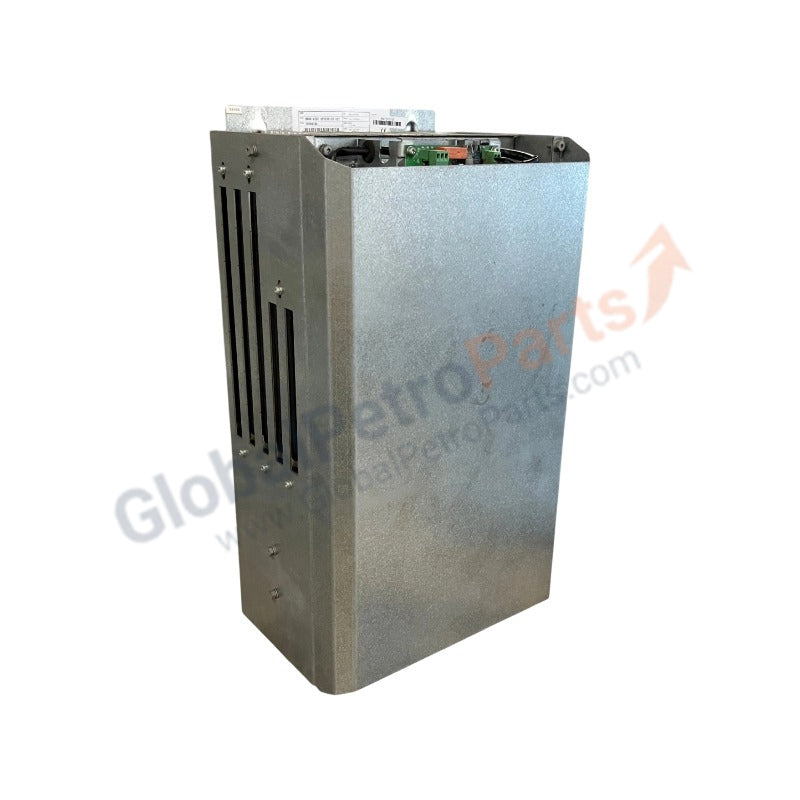

The ABB NBRA-659C, also cataloged as the NBRA-659C Drive Brake Chopper Module, operates as a dedicated hardware component for overvoltage energy dissipation across ACS800 drive platforms. It monitors the direct current intermediate circuit voltage and switches an external braking resistor into the DC bus link loop when predefined voltage thresholds are exceeded.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The internal gate drive circuit executes microsecond-level switching sequences based on physical voltage sensor triggers located on the intermediate rail. For complex engineering structures with high I/O density scaling profiles, the module transmits operational fault bits, thermal status telemetry, and active state registers to the primary industrial controller through the drive backplane interconnect interface. This telemetry integrates directly into high-tier fieldbus links, allowing monitoring stations over Profinet / EtherNet/IP deterministic networks to log dynamic braking cycles and manage total plant power quality parameters.

Frequently Asked Questions

Q: Can the NBRA-659C module be hot-swapped while the drive intermediate DC bus is energized? A: No. Hot-swapping is strictly prohibited. The DC bus link stores high-voltage energy via heavy capacitor banks. Auxiliary and main supply sources must be completely isolated, and a verified discharge wait time of at least 5 minutes must be observed before servicing the unit.

Q: How does the chopper handle an external braking resistor insulation fault? A: The module contains dedicated short-circuit detection circuitry. If an insulation breakdown or low-resistance short-circuit occurs across the resistor terminals during a firing cycle, the chopper immediately inhibits the gate pulses and asserts a local latching fault output to trip the upstream drive breaker.

Field Installation Guidelines

• Electrostatic Grounding Measures: Technicians must secure an approved ESD grounding wrist strap to the unpainted metallic sub-panel before handling internal configuration links or control terminal strips.
• Mechanical Orientation and Airflow: Mount the module vertically inside the drive bay enclosure. Maintain a minimum free workspace clearance of 100 mm above and below the housing ventilation grilles to ensure proper thermal convection.
• Power Conductor Shielding Protocols: Connect the external braking resistor using twisted, shielded power cables. Terminate the cable shield at both ends using 360-degree high-frequency grounding clamps to suppress high-voltage electromagnetic radiation fields.
