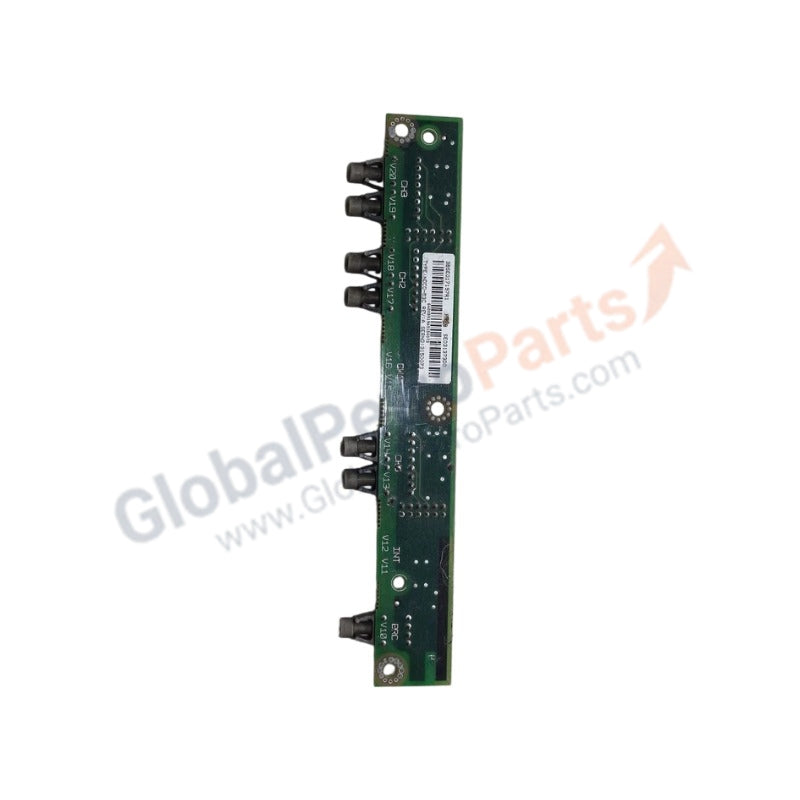

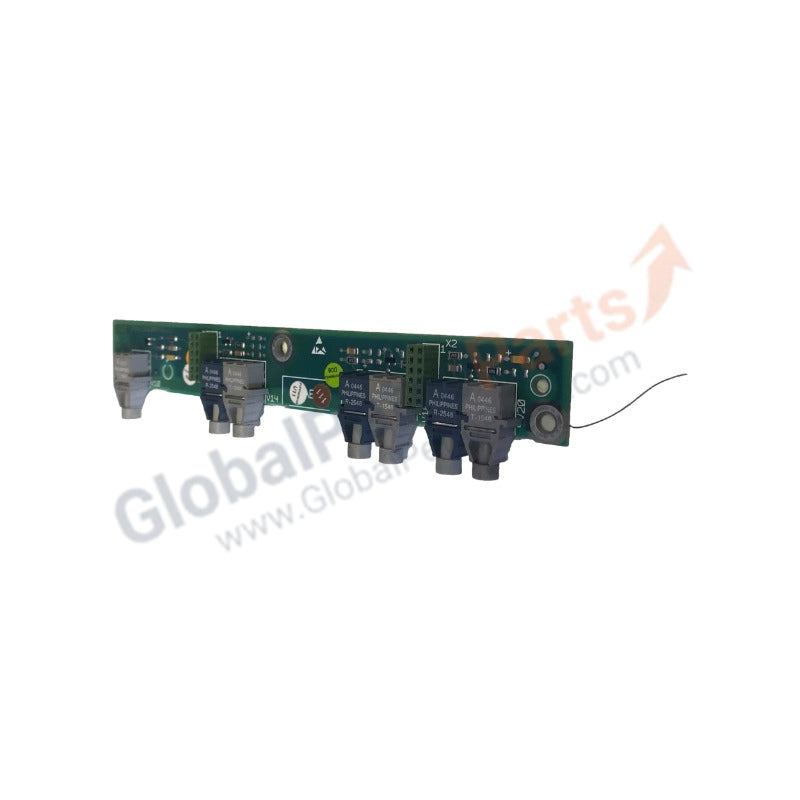

Drive Control Boards ABB Drive Systems NDCO-03C

The ABB NDCO-03C, also cataloged as the NDCO-03C Drive Control Board, operates as a dedicated hardware component for microprocessing and serial communication execution within ABB Drive Systems.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The electronic assembly routes continuous data packets over integrated DDCS (Distributed Drives Communication System) channels via fiber optic transceivers. This architecture manages high-speed local processing data linked to upper-level control architectures, aligning bus signals with Profinet / EtherNet/IP deterministic networks through external adapter configuration. The layout supports high I/O density scaling profiles inside the drive inverter module, maintaining synchronous update cycles across the internal drive logic without generating digital signal phase distortions.

Frequently Asked Questions

Q: Does the NDCO-03C board support live insertion or hot-swap procedures?

A: No. The board requires complete isolation of the 24 VDC auxiliary power supply before installation or removal. Inserting the module under load can cause electrical damage to the logic gates.

Q: How is a data loop error isolated on the DDCS communication channels?

A: Channel verification requires monitoring the embedded status LEDs. If a transmitter or receiver loop suffers attenuation beyond standard parameters, the drive logs a communication fault and executes a localized safety stop.

Field Installation Guidelines

• Electrostatic Discharge Mitigation: Technicians must utilize a verified, grounded ESD wrist strap before handling the circuit board assembly to prevent passive breakdown of the surface-mounted devices.

• Fiber Optic Connection Constraints: Ensure clean mating faces on all fiber optic lines. Observe a minimum bend radius limit of 35 mm to prevent signal attenuation or physical fracturing of the core material.

• Mechanical Retention: Mount the module into its designated chassis slot using the specified grounding screws, torquing them to 0.8 Nm to establish a low-impedance path to ground.
