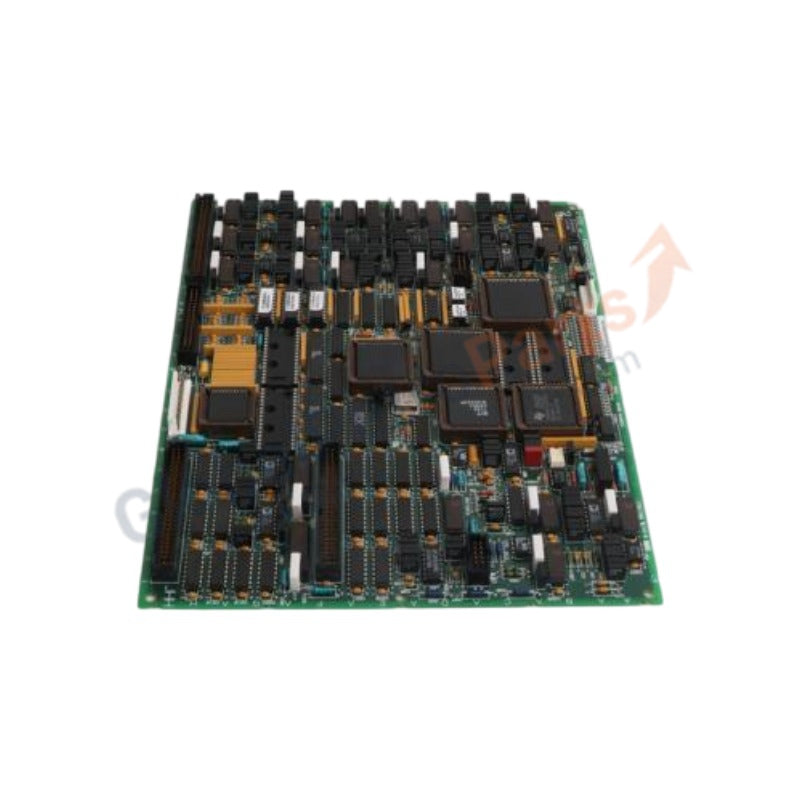

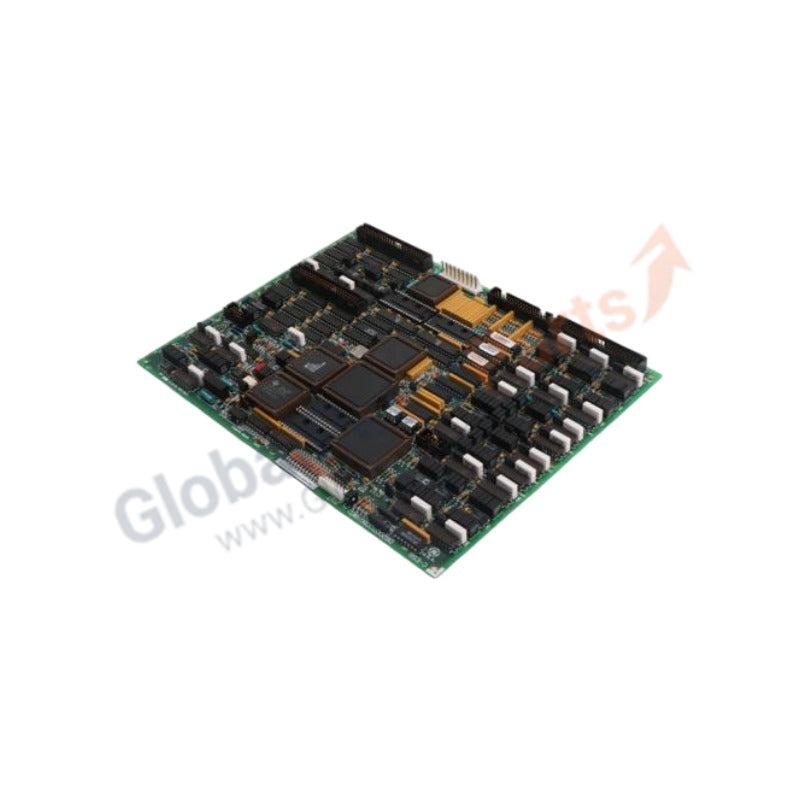

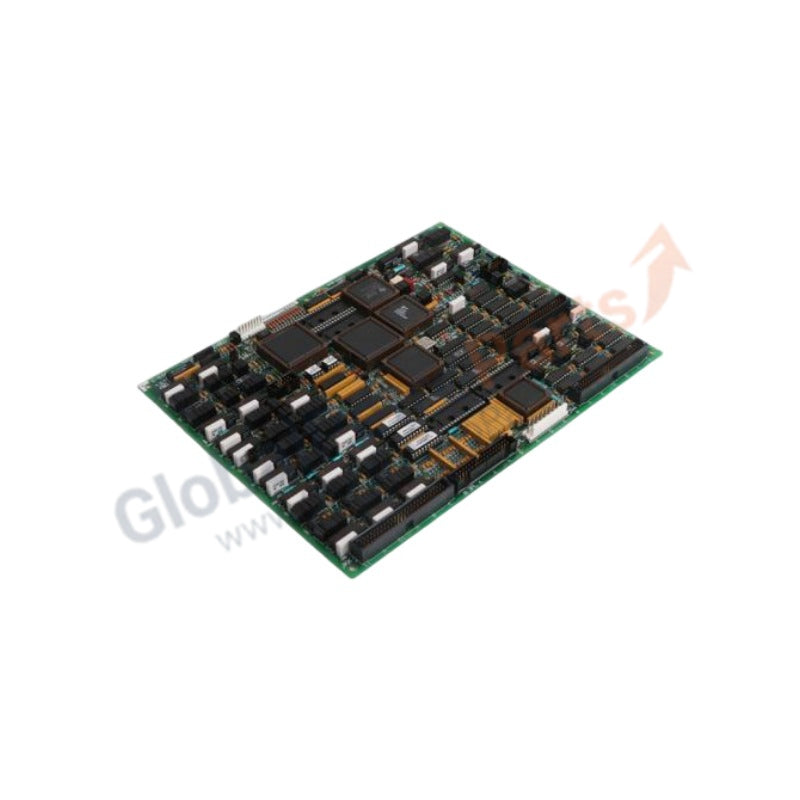

DS200TCCBG1BED GE Mark V Common Extended Analog I/O Board

Product Overview

The GE DS200TCCBG1BED serves as the Common Extended Analog I/O Board (TCCB) within the GE Speedtronic Mark V turbine control system. Functioning as an essential expansion to the primary TCCA board, the TCCB increases the system's capacity to process complex analog signals, specifically focused on high-density RTD inputs and thermocouple data. This module operates within the  core and manages the interface between field-side terminal boards (such as the TBQA) and the central I/O engine. We provide this board as 100% Brand New, ensuring factory-sealed reliability for critical utility-scale power generation and industrial turbine operations.

Technical Specifications

The DS200TCCBG1BED leverages a dedicated microprocessor and high-resolution A/D converters to maintain deterministic data acquisition.

Engineering Advantages

• Expanded Sensor Density: The TCCB board adds significant RTD and thermocouple processing channels. This expansion allows for detailed thermal mapping of the turbine combustion chambers and bearing assemblies, which is vital for predictive maintenance and stall prevention.

• Active Signal Conditioning: The board converts raw millivolt signals from thermocouples into digitized engineering units locally. This decentralized processing reduces the load on the main control processor and prevents signal degradation over long internal ribbon cable runs.

• Socketed PROM Architecture: Like other Mark V boards, the DS200TCCBG1BED features socketed EPROM chips. This allows engineers to migrate site-specific configuration and firmware from a failed board to a brand-new replacement effortlessly, preserving original tuning parameters.

• Noise-Hardened PCB Design: The "BED" revision signifies an optimized hardware layer designed to filter out electromagnetic interference (EMI) common in power plant environments. This ensures stable readings even in close proximity to high-power exciters and generators.

FAQs

• Can I use the DS200TCCBG1BED to replace a TCCA board?

  No. The TCCA (Common Analog) and TCCB (Common Extended Analog) have different functional roles and hardware layouts. While they work together in the  core, they are not interchangeable.

• Do I need to calibrate this board upon installation?

  The board performs self-diagnostics and uses fixed-precision resistors. However, you must verify the I/O Configuration Constants in the HMI software (such as  or ) to ensure the inputs correctly match your specific field sensor types.

• What is the purpose of the 3PL connector?

  The 3PL connector provides the high-speed data path to the I/O Engine (TCEA board). If this cable is loose or damaged, the system will trigger a "Loss of I/O" alarm for all extended analog points.

• What does the "BED" suffix indicate?

  The suffix represents the specific revision history (B-E-D). It confirms that this board includes the latest engineering updates for component longevity and improved voltage regulation compared to earlier "A" or "B" revisions.
