FC-TELD-0001 | Honeywell | UIO Earth Leakage Detector

Product Overview

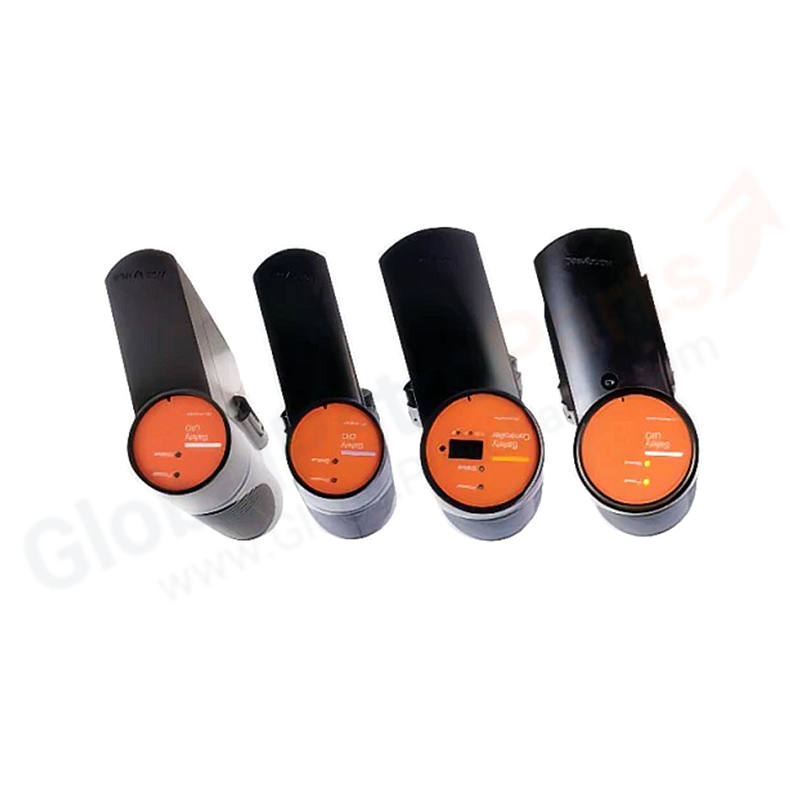

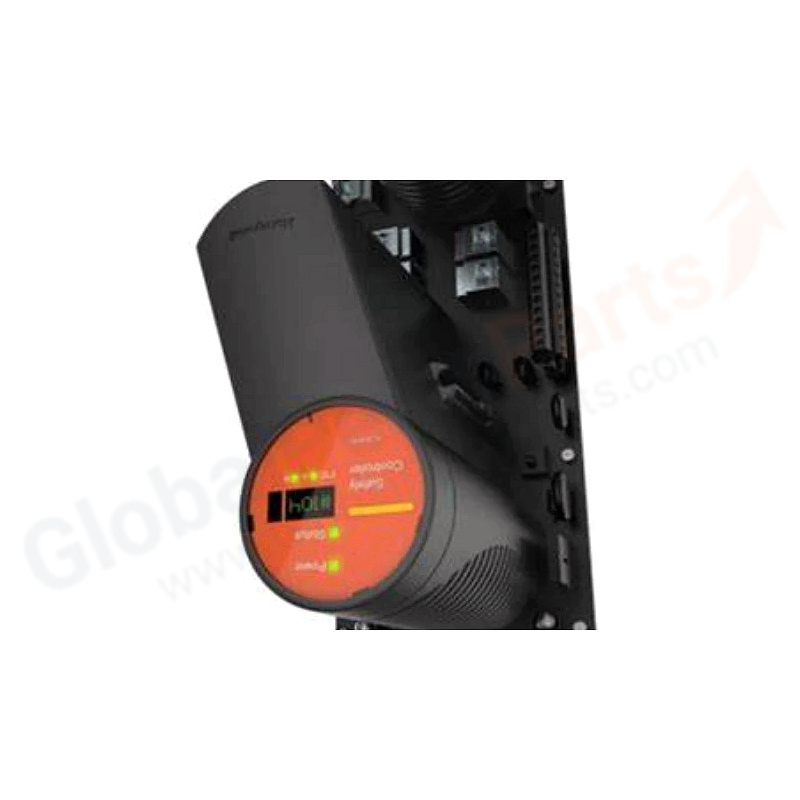

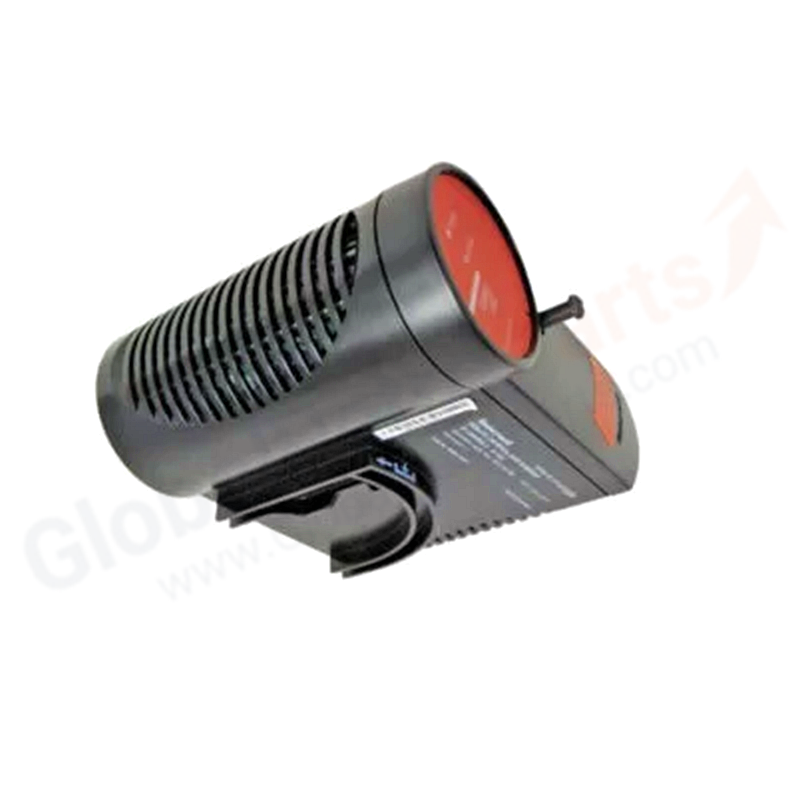

The Honeywell FC-TELD-0001 is a UIO Earth Leakage Detector designed for Honeywell Safety Manager systems. Operating on 24 VDC, this module detects residual current (earth leakage) in electrical systems, providing critical protection against electrical shock hazards and potential fire risks. As a Universal Input/Output (UIO) device, it integrates seamlessly with Safety Manager I/O architectures to monitor electrical safety in industrial installations, switchgear, and power distribution systems.

Key Features

• Earth Leakage Detection: Monitors residual current to prevent electrical shock and fire hazards
• 24 VDC Operation: Standard industrial voltage compatibility
• UIO Interface: Universal Input/Output compatibility with Safety Manager systems
• Fast Response Time: Rapid detection of leakage currents for immediate safety response
• Compact & Rugged Design: Suitable for installation in tight spaces and harsh environments
• Wide Temperature Range: Reliable operation across industrial temperature extremes
• Multiple Mounting Options: Flexible installation for diverse system requirements

Technical Specifications

• Model: FC-TELD-0001
• Type: UIO Earth Leakage Detector / Earth Leakage Sensor
• Operating Voltage: 24 VDC
• Detection Principle: Residual current (earth leakage) detection
• Input Type: Universal Input/Output (UIO), compatible with Safety Manager control systems
• Response Time: Fast detection for immediate safety response
• Housing: Compact and rugged industrial enclosure
• Mounting: Multiple mounting options (DIN rail or panel mount, verify variant)
• Weight: 0.8 kg (800 g)
• Environmental Suitability: Built for harsh industrial conditions
• Operating Temperature: Wide industrial range (verify specific rating in system documentation)
• Approvals: CE, UL, CSA (verify specific certifications for application)

Installation Guide

1. Mounting: Install FC-TELD-0001 in electrical panel or switchgear using appropriate mounting hardware
2. Power Connection: Connect 24 VDC supply to power terminals
3. Current Transformer: Install residual current transformer (CT) on monitored power circuit:
   • Pass all live conductors (phases + neutral) through the CT window
   • Ensure proper CT ratio and sensitivity for application
4. UIO Connection: Connect UIO signal to Safety Manager input module
5. Threshold Setting: Configure leakage current alarm threshold via Safety Manager engineering software or local adjustment
6. Testing: Perform injection test to verify proper detection and alarm response

FAQ

Q: What is earth leakage detection and why is it important?
A> Earth leakage detection monitors the difference between current flowing to a load and returning from it. Any imbalance indicates current leaking to earth, which can cause electric shock, equipment damage, or fire. The FC-TELD-0001 provides early warning of these hazardous conditions.

Q: What leakage current threshold should I set?
A> Threshold depends on application and local electrical codes. Typical settings: 30 mA for personnel protection (residual current devices), 100-300 mA for fire protection, 10-30 mA for medical/sensitive equipment. Consult local electrical regulations and system safety requirements.

Q: Does this module include the current transformer?
A> The FC-TELD-0001 is the detector module. Current transformers (CTs) are typically ordered separately based on the monitored circuit current rating and conductor size. Verify system documentation for compatible CT models.

Q: Can this be used in Safety Manager SIL-rated loops?
A> The FC-TELD-0001 provides earth leakage monitoring as a safety function. For SIL-rated applications, verify the complete safety loop calculation including this detector, the UIO input module, and the Safety Manager controller.

Q: What is the difference between earth leakage detection and ground fault detection?
A> Earth leakage detection monitors small residual currents (mA range) for personnel and fire protection. Ground fault detection typically monitors larger fault currents (A range) for equipment protection. The FC-TELD-0001 is designed for sensitive residual current monitoring.

Selection Tips

• CT Selection: Order compatible residual current transformer based on monitored circuit current rating and physical conductor size
• Threshold Planning: Define alarm and trip thresholds based on:
  • Personnel safety requirements (typically ≤ 30 mA)
  • Fire protection requirements (typically 100-300 mA)
  • Equipment protection requirements
• System Integration: Verify UIO input module compatibility in Safety Manager chassis
• Redundancy: For critical applications, consider dual earth leakage detectors with redundant monitoring
• Testing: Ensure periodic testing capability (test button or injection test equipment) for maintenance verification
• Environmental: Verify operating temperature and enclosure rating match installation environment
