GE | DS200TCQAG1A | Mark V Analog I/O Board

Product Overview

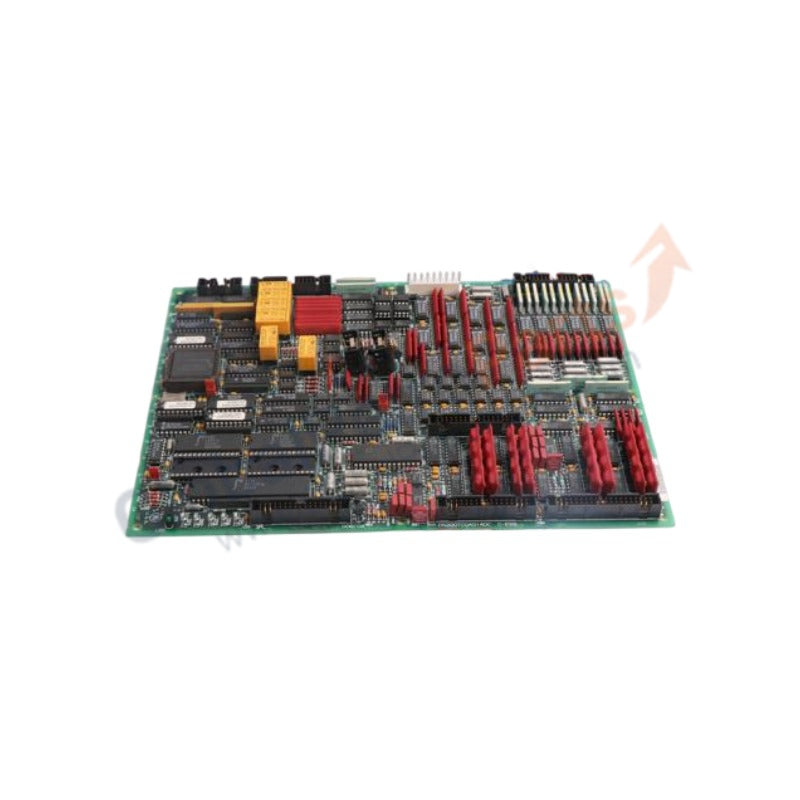

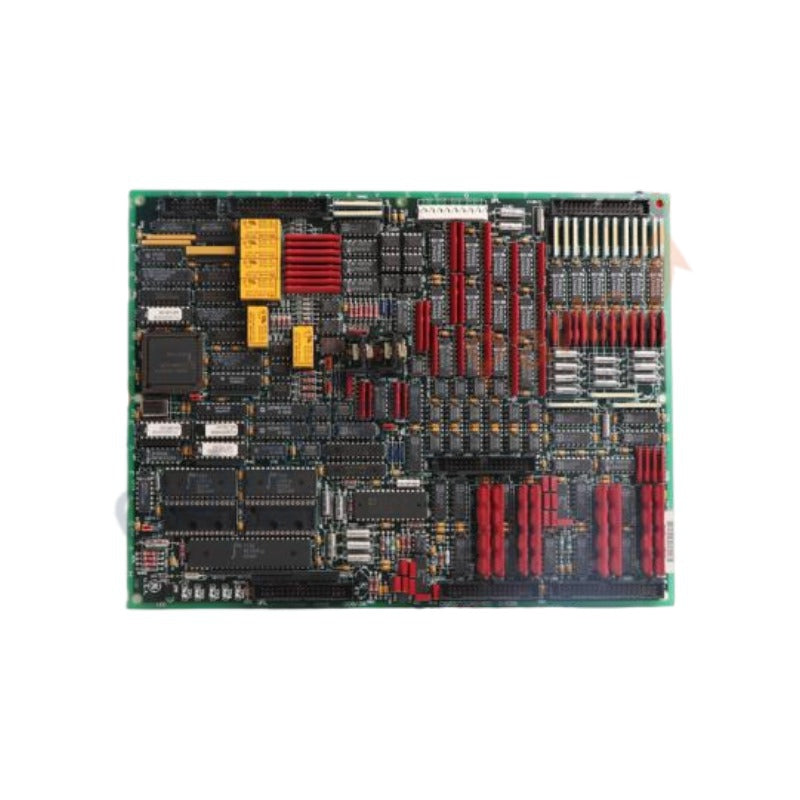

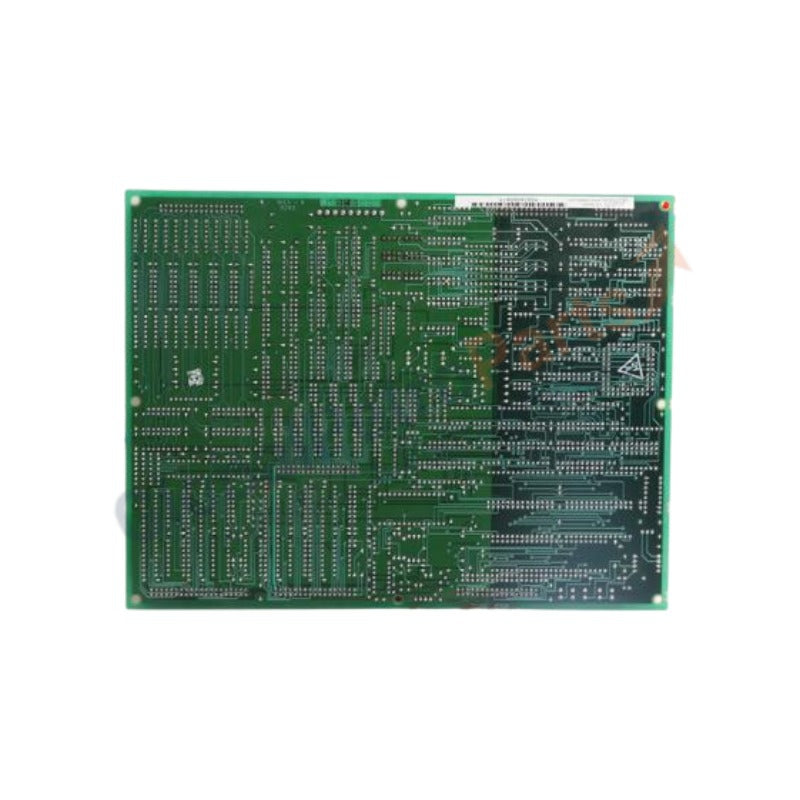

The GE DS200TCQAG1A (DS200TCQAG1A) functions as the primary analog signal processing engine within the GE Mark V Speedtronic turbine control system. This board scales, filters, and digitizes a vast array of critical sensor data, including LVDT position feedback, thermocouple temperature readings, and 4-20 mA process variables. We supply this module as 100% Brand New original equipment. The DS200TCQAG1A occupies a central role in the , , and  cores, converting raw physical inputs into high-precision digital data. By managing the high-speed computational requirements of turbine feedback loops, this board ensures the control system maintains stable combustion and precise fuel-to-air ratios during transient and steady-state operations.

Technical Specifications

The DS200TCQAG1A integrates high-performance A/D converters and precision reference circuits to maintain signal purity in high-voltage environments.

Engineering Advantages

The DS200TCQAG1A overcomes the specific challenges of analog data acquisition in power generation settings:

• Advanced Noise Filtering and Signal Scaling: GE engineers equipped the TCQAG1A with active hardware filters that eliminate common-mode noise and 50/60Hz interference. This ensures that sensitive low-millivolt thermocouple signals remain accurate even when routed near high-voltage motor starters.

• Integrated LVDT Demodulation: The board features dedicated demodulator circuits that convert AC LVDT feedback into linear DC position data. This localized processing reduces the computational load on the main core processor and eliminates phase-shift errors common in long field cable runs.

• High-Speed Servo Loop Execution: The board manages the analog output drivers for servo valves with millisecond latency. This high-speed response prevents "hunting" in fuel valves and ensures the turbine responds instantly to grid frequency changes.

• Onboard Self-Diagnostics: The DS200TCQAG1A continuously monitors its own internal voltage rails and A/D converter health. If a component drifts out of calibration, the board triggers a diagnostic alarm on the HMI, allowing operators to schedule maintenance before a functional failure occurs.

FAQs

• How does the DS200TCQAG1A interface with the terminal boards?

  The TCQAG1A connects to terminal boards like the TBCAG1 or TBQCG1 via high-density ribbon cables. These cables carry the conditioned signals from the terminal blocks to the A/D converters on the TCQA. Always ensure the cables are shielded and properly seated to prevent signal jitter.

• Is it necessary to calibrate the board after installation?

  While the DS200TCQAG1A features factory-calibrated precision resistors, you must perform a "Loop Calibration" through the Mark V software. This process synchronizes the software scaling with the physical field sensor range to ensure the HMI displays accurate engineering units.

• Can the TCQAG1A be used in both Gas and Steam turbine frames?

  Yes. The DS200TCQAG1A is a versatile analog processing board used across the Mark V platform. However, you must verify that the onboard jumpers (J-jumpers) match the specific I/O configuration defined in your site's "Control Sequence Program" (CSP).

• What is the best way to prevent damage during board replacement?

  Always wear a grounded ESD wrist strap and handle the board only by its edges or the plastic pull tabs. Furthermore, verify that the 125VDC and 24VDC power supplies are isolated before disconnecting the ribbon cables to avoid transient spikes that can damage the CMOS components.
