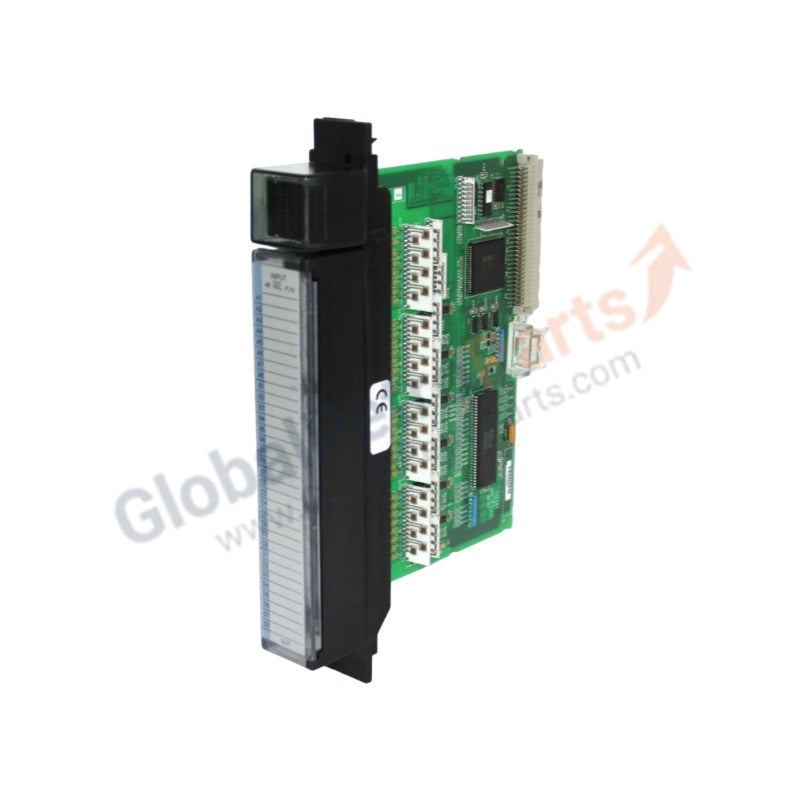

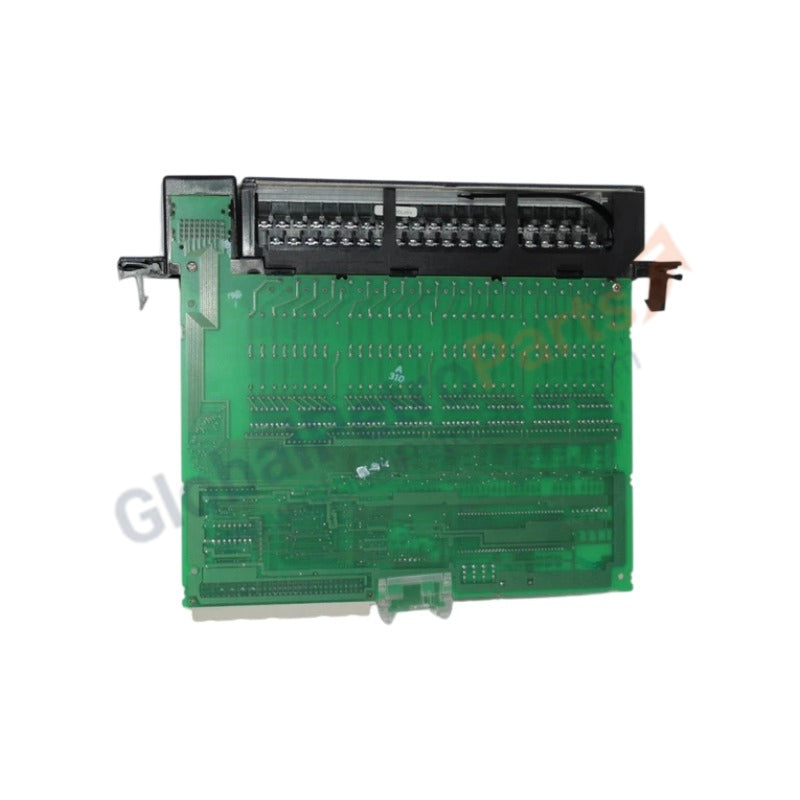

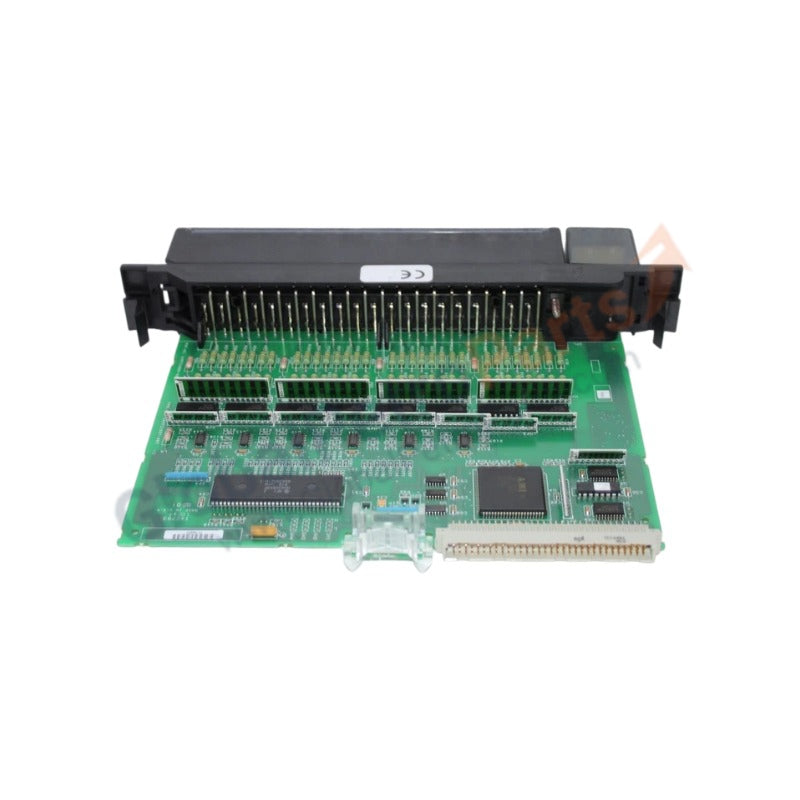

GE Fanuc Discrete Input Modules Series 90-70 IC697MDL654

The GE Fanuc IC697MDL654, also cataloged as the IC697MDL654 Discrete Input Module, operates as a dedicated hardware component for physical voltage sensing and digital state acquisition within Series 90-70 PLC platforms. The module converts multi-channel external discrete field signals into logic-level binary data accessible via the system controller.

Hardware Specifications

Backplane Bus Communication Velocity and Deterministic Input Scaling

The IC697MDL654 interfaces with the high-speed logic framework via the internal parallel chassis architecture, allowing continuous verification of input status at peak backplane bus communication velocity. Featuring dense physical channel separation, the module supports optimized I/O density scaling across 32 individual execution points. System integrators must maintain firmware flash compatibility across matching baseplate controller configurations to prevent data parity faults during asynchronous bus access cycles, ensuring deterministic status reporting under maximum input signal switching frequency.

Frequently Asked Questions

Q: Does the IC697MDL654 support hot-swap replacement or removal under active power?

A: No. The Series 90-70 backplane architecture does not feature live hot-swap capabilities. System power must be entirely isolated and turned off before removing or executing insertion procedures for the IC697MDL654 module to prevent hardware failure.

Q: What is the rated logic switching threshold for an input channel to change state from Off to On?

A: The physical input circuitry registers a logic High state when the external field terminal potential transitions above 11 VDC, while dropping below 5 VDC forces a logic Low state.

Field Installation Guidelines

• Field Wiring Terminations: Connect all signal lines to the designated detachable front terminal connector. Ensure proper torque execution on retention mechanisms to mitigate thermal scaling under high mechanical vibration.
• Electrical Isolation Framework: Maintain separate conduit routing for high-current power execution cables and low-voltage input lines to eliminate cross-talk and spurious induction transients.
• Chassis Ground Configuration: Ensure the host Series 90-70 rack is bonded to the main enclosure ground bar via a low-impedance copper strap to optimize internal signal common reference performance.
