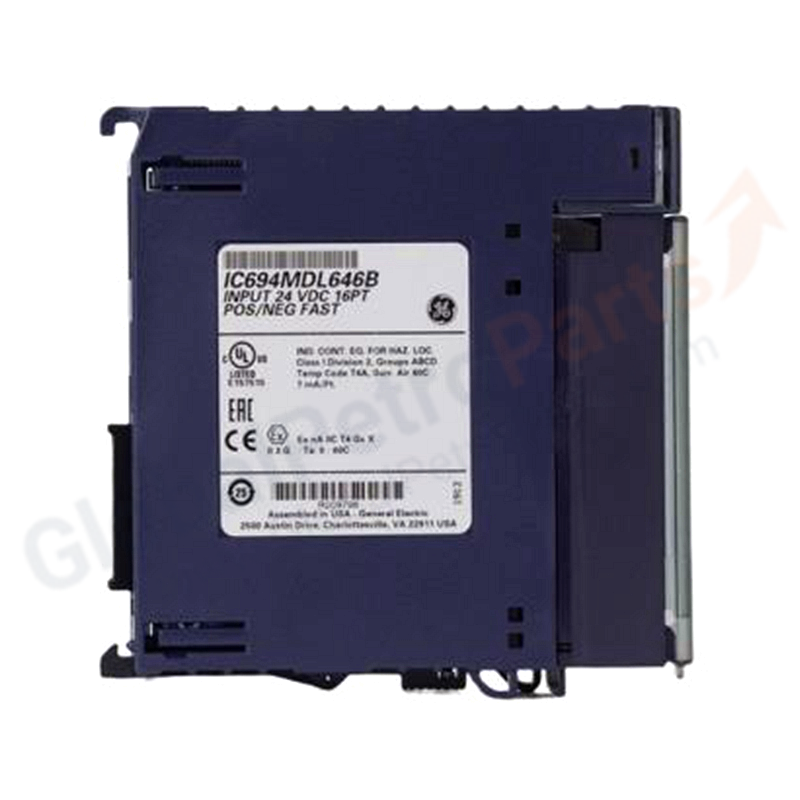

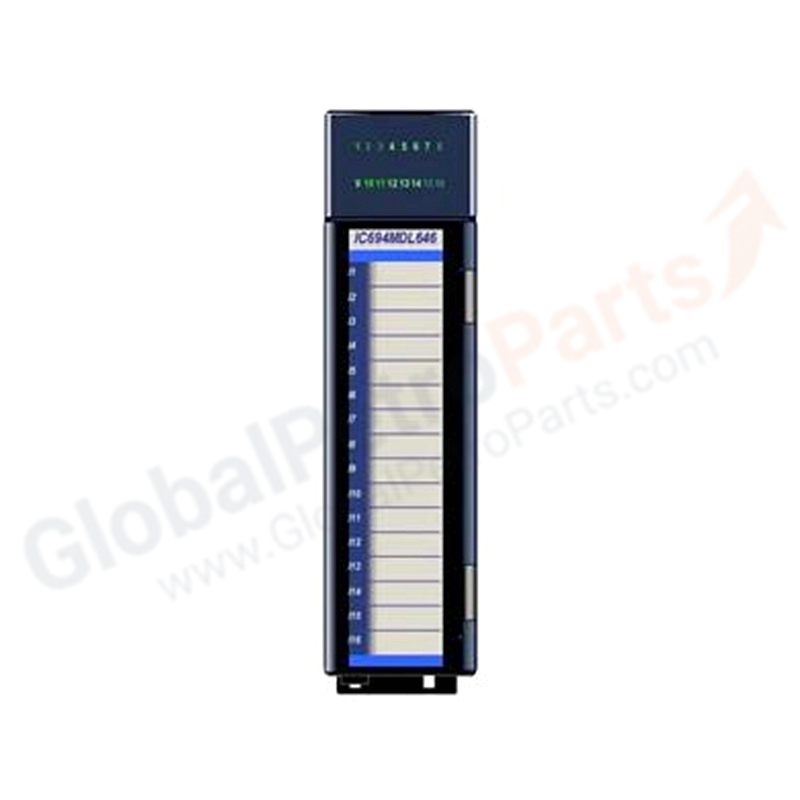

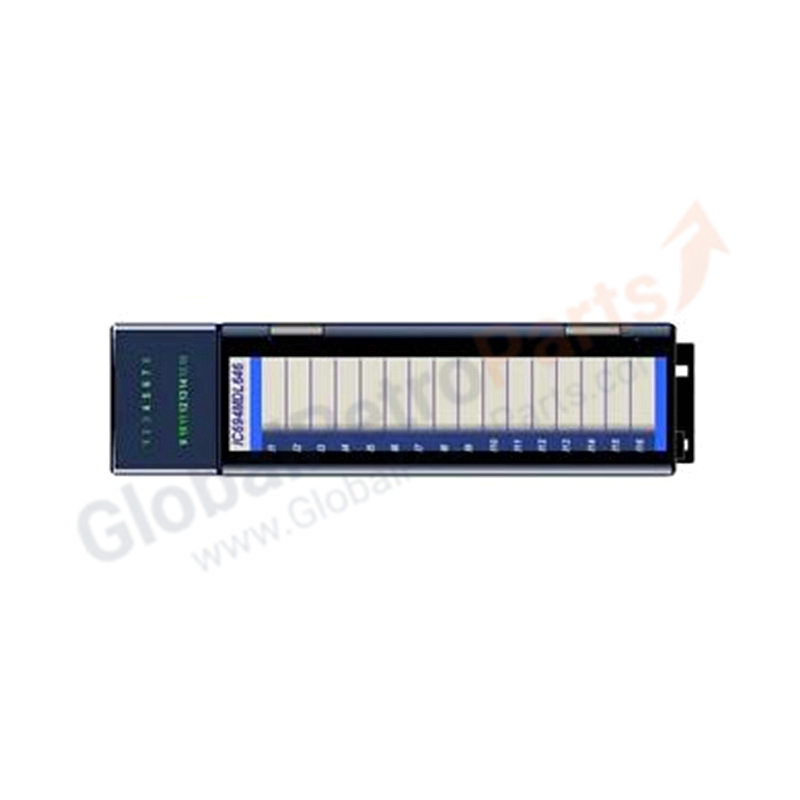

GE Fanuc IC694MDL646 Digital Input Module

Product Overview

The GE IC693MDL645 is a 16-Point 24 VDC Input Module for the GE Fanuc Series 90-30 programmable logic controller system. It supports both positive and negative logic wiring configurations, providing flexible digital input acquisition for industrial control applications.

Key Specifications

• Model Number: IC693MDL645
• Series: Series 90-30
• Product Type: 16-Point Discrete Input Module
• Input Voltage: 24 VDC
• Logic Type: Positive/Negative Logic (configurable)
• Channels: 16 points
• Compatibility: Series 90-30 baseplates

Core Features

• 16-point high-density digital input
• Dual logic support (positive and negative) for flexible wiring
• Standard Series 90-30 form factor
• Reliable industrial-grade input circuitry

Applications

• Series 90-30 PLC digital input expansion
• Sensor and switch signal acquisition
• Industrial control panel input modules

FAQ

Q: What is the difference between IC693MDL645 and IC693MDL646?
A: The IC693MDL645 is a 16-point 24VDC input module. The IC693MDL646 adds a 1ms filter for noise immunity.

Q: Can this module be used with RX3i systems?
A: No, the IC693MDL645 is for Series 90-30 only. For RX3i 24VDC inputs, use IC694MDL646 or IC694MDL655.

Selection Tips

• Verify Series 90-30 baseplate compatibility.
• For 32-point input, consider IC693MDL655.
• For RX3i systems, migrate to IC694MDL646 or IC694MDL655.
