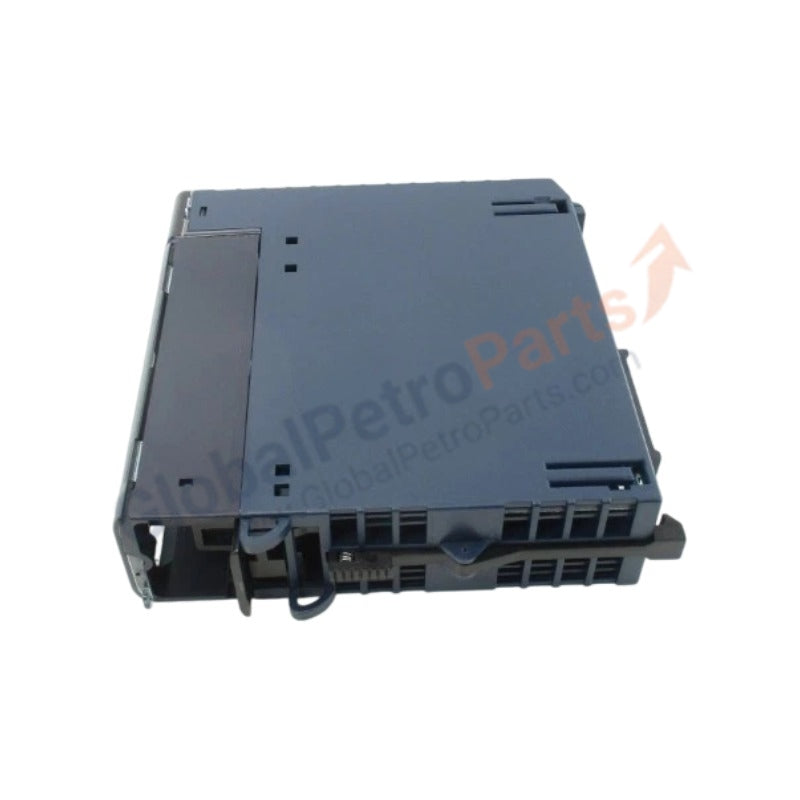

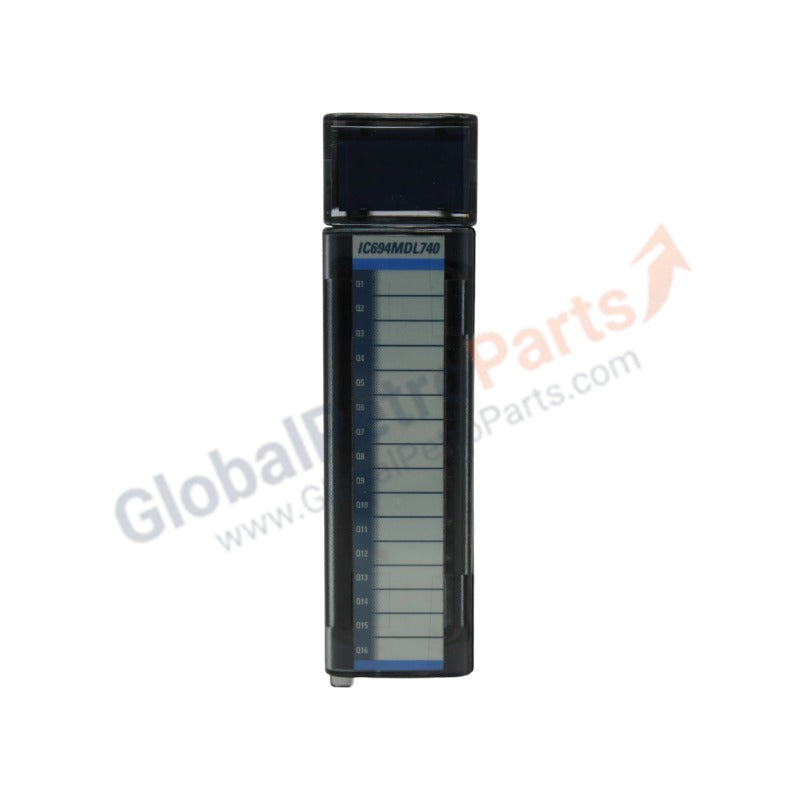

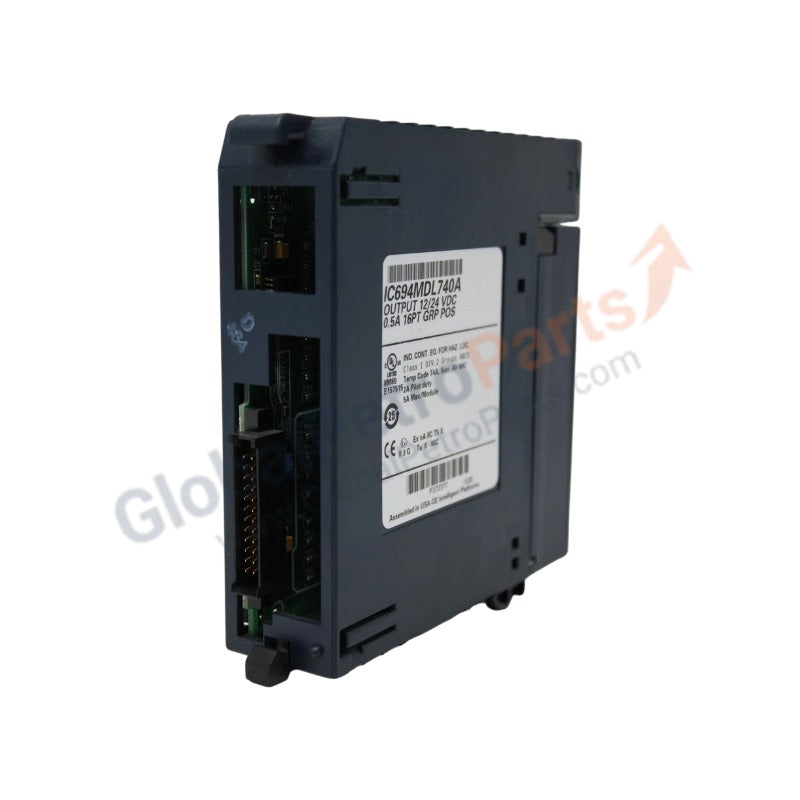

GE Fanuc IC694MDL740 Digital I/O Cards PACSystems RX3i

The GE Fanuc IC694MDL740 serves as the primary IC694MDL740 Digital Output Module utilized to execute discrete solid-state DC signal switching across PACSystems RX3i platforms.

Hardware Specifications

Backplane Bus Communication Velocity and Density Scaling

The module circuit board links directly with the PACSystems RX3i backplane, enabling deterministic peripheral scans that synchronize with the processor loop. The 16 high-density output channels operate with an isolated matrix layout to secure dynamic I/O density scaling capabilities without dropping voltage potentials on neighboring backplane pins. Internal logic paths match default firmware flash compatibility profiles across standard RX3i control chassis configurations. This layout preserves high backplane bus communication velocity and eliminates timing delays, ensuring stable signaling when linked alongside Profinet or EtherNet/IP deterministic networks.

Frequently Asked Questions

Q: Does the IC694MDL740 support online insertion and removal (hot-swap) functionality?

A: Yes, this hardware module supports hot-swapping within a powered RX3i universal backplane rack. However, field-side terminal block connections must be isolated from their 24 VDC external power sources during insertion or removal to prevent transient inductive arcing across the output pins.

Q: What protection elements are included on the transistor outputs to handle overcurrent faults?

A: Each isolated channel group contains electronic short-circuit and thermal overload monitoring pathways. If a field-side fault occurs, the module automatically trips the group execution state to protect the internal solid-state source switches from damage.

Field Installation Guidelines

• Insert the module into any available I/O slot within the RX3i chassis rack, verifying that the top and bottom structural retention hooks engage the baseplate securely.
• Wire external DC power loops to the removable 20-terminal front connector frame using 14 AWG to 22 AWG solid or stranded industrial copper conductors.
• Group field wiring bundles by voltage levels and route them through dedicated cabinet wire ducts separated from high-voltage AC motor control conductors.
• Maintain a minimum physical ventilation boundary clearance of 102 mm at the top and bottom borders of the module chassis to facilitate passive convective heat dissipation.
