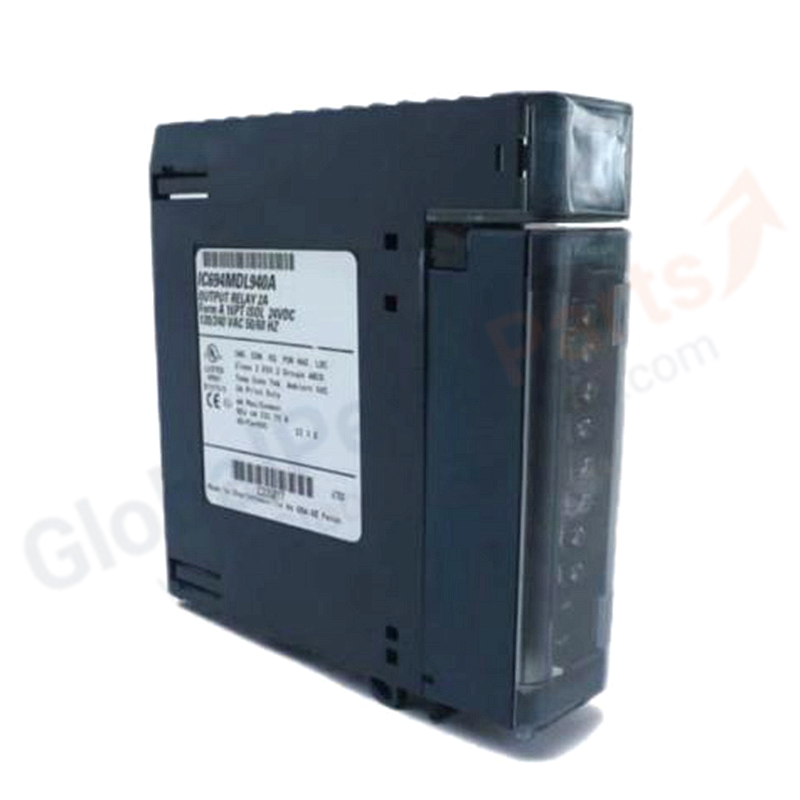

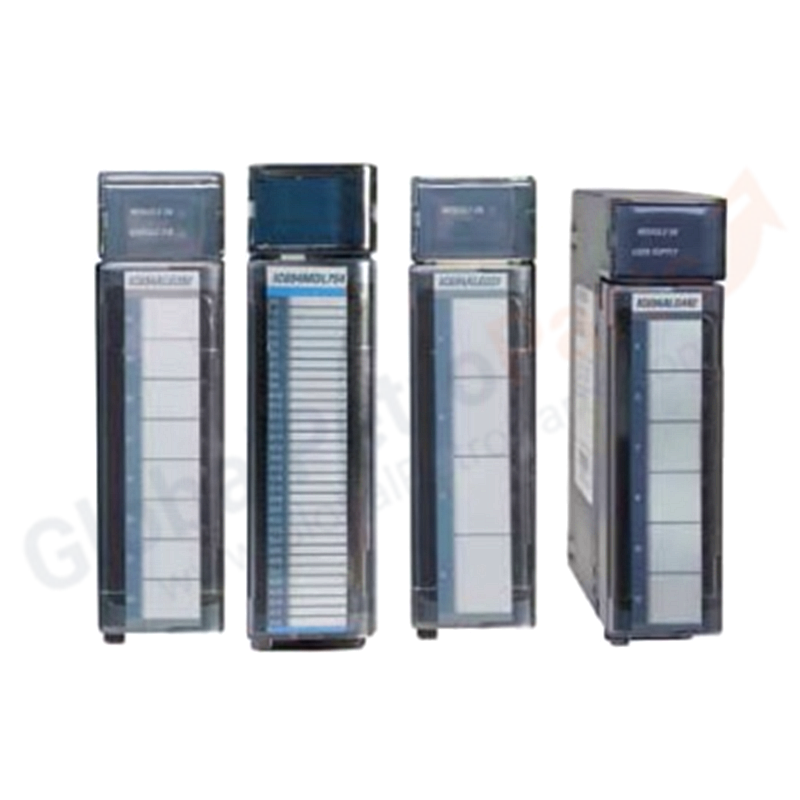

GE Fanuc IC694MDL940 16-Point Relay Output Module

Product Overview

The GE IC694MDL940 is a 16-Point Relay Output Module for the Emerson PACSystems RX3i programmable automation controller platform. It provides 16 normally open (N.O.) relay contacts organized in 4 groups of 4 outputs each, supporting both AC and DC loads for versatile industrial control applications.

Key Specifications

• Model Number: IC694MDL940
• Series: PACSystems RX3i
• Product Type: Relay Output Module
• Output Points: 16 normally open (N.O.) contacts
• Output Groups: 4 groups of 4 outputs each
• Output Voltage (DC): 5–30 VDC (nominal 24 VDC)
• Output Voltage (AC): 5–250 VAC at 47–63 Hz (nominal 120/240 VAC)
• Output Current per Point: 2 Amps (pilot duty)
• Output Current per Group: 4 Amps maximum
• Minimum Load: 10 mA
• Maximum Inrush Current: 5 Amps
• Response Time: 15 ms (typical)
• Power Consumption: 7 mA @ 5VDC (all outputs on); 24 mA @ relay 135V bus (all outputs on)
• Isolation:
  • Field to Backplane: 250 VAC continuous; 1500 VAC for 1 minute
  • Channel to Channel: 250 VAC continuous; 1500 VAC for 1 minute
• LED Indicators: 16 status LEDs (one per channel)
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C

Core Features

• 16 relay outputs with isolated N.O. contacts
• Supports both AC (5-250V) and DC (5-30V) loads
• 4 isolated groups of 4 outputs each
• Individual LED status indication for each channel
• No built-in fuse — external fuse protection recommended

Applications

• AC/DC relay-based device control
• Motor starter and contactor control
• Alarm and signaling systems
• Isolated output switching for safety circuits

FAQ

Q: What is the maximum load per group?
A: The maximum load per group of 4 outputs is 4 Amps.

Q: Does the module have built-in fuses?
A: No. The IC694MDL940 does not have built-in fuses. Users should install external fuses for channel protection.

Selection Tips

• For 8-point relay output, consider IC694MDL930.
• For solid-state DC output, use IC694MDL740 or IC694MDL741.
• Install external fuses (2A recommended) for each output channel.
