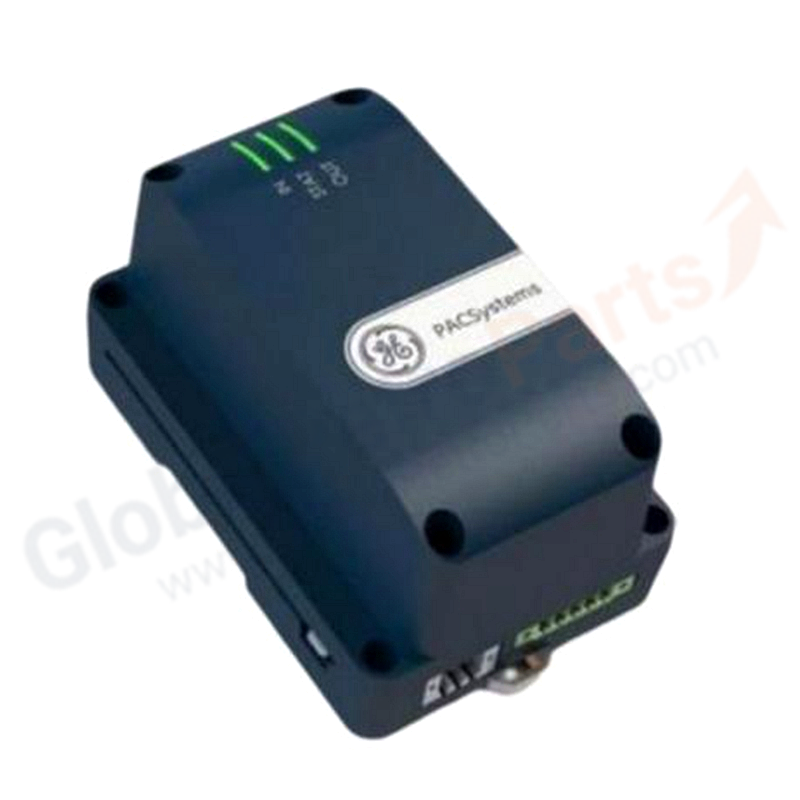

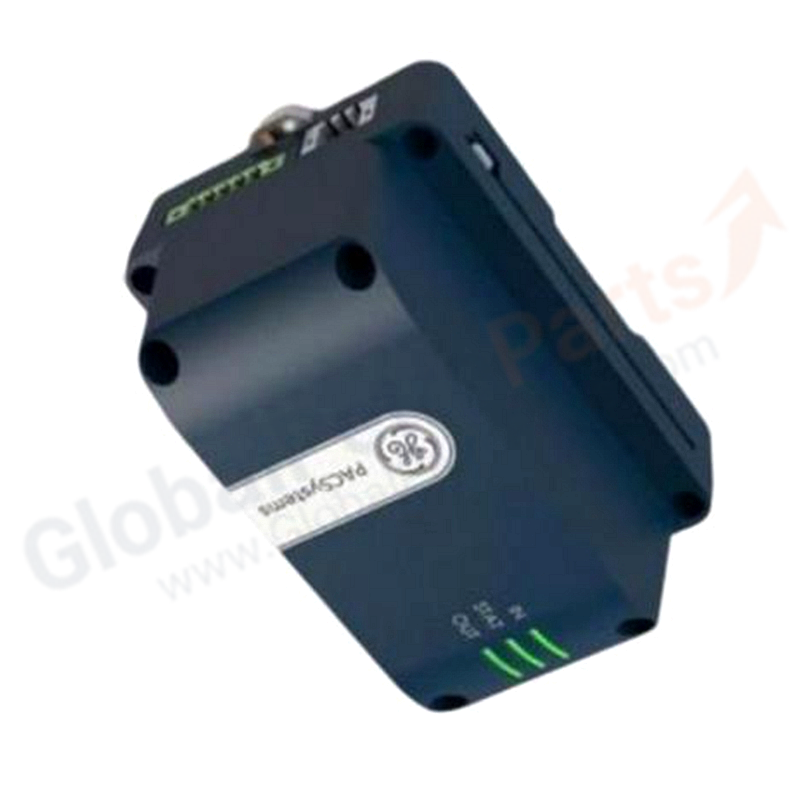

GE Fanuc IC695ACC402 PACSystems RX3i Energy Pack

Product Overview

The GE IC695ACC402 is a PACSystems RX3i Energy Pack designed for use with the IC695CPE330 CPU. In the event of system power loss, it maintains power long enough for the CPU to write its user memory contents to non-volatile (flash) memory, ensuring data integrity and preventing program loss during unexpected shutdowns. The IC695ACC402 is NOT compatible with CPE302, CPE305, or CPE310 CPUs — those require the IC695ACC400 instead.

Key Specifications

• Model Number: IC695ACC402
• Series: PACSystems RX3i
• Product Type: Energy Pack (Capacitor-Based Memory Backup)
• Compatible CPU: IC695CPE330 ONLY
• Part Number: IC695ACC402-AA
• Input Voltage Range: 18–30 Vdc
• Input Power, Maximum: 24 W
• Output Voltage Range: 18–30 Vdc
• Output Power, Maximum: 45 W
• Output Current, Maximum: 2.25 A
• Backup Trip Voltage: 16.7 Vdc ± 4%
• Capacitor Pack Life Expectancy: 5 years
• Dimensions: 114.05 × 77.47 × 63.75 mm (4.49" H × 3.05" D × 2.51" W)
• Operating Temperature: -25°C to 60°C (-13°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 5% to 95%, non-condensing

Kit Contents

• IC695ACC402 Energy Pack: Includes base, Cap Pack module, and Energy Pack-to-Controller cable
• IC695ACC412: Replacement Cap Pack module (ordered separately)
• IC695CBL002: Replacement 1.0 m (39") Energy Pack-to-CPE330 Controller cable (ordered separately)

LED Indicators

• IN LED: Indicates input power status
• STAT LED: Displays module status (charging, fault, low capacitance, charged)
• OUT LED: Shows output power status

Status Definitions

• Charging: The Energy Pack is charging; not yet fully charged
• Fault: A hardware fault exists in the Energy Pack
• Low Capacitance: The Energy Pack is near end of life and should be replaced
• Charged: The Energy Pack is fully charged and ready to support CPU operation

Core Features

• Capacitor-based energy storage (no battery maintenance required)
• Automatic user memory backup to non-volatile flash on power loss
• 5-year capacitor pack life expectancy
• LED status indication for easy diagnostics
• Compact design mounts on left side of RX3i module
• Ground strap included

Applications

• IC695CPE330 CPU memory protection
• Critical automation systems requiring data integrity
• Applications where battery maintenance is undesirable

FAQ

Q: What is the difference between IC695ACC400 and IC695ACC402?
A: IC695ACC400 is for CPE302, CPE305, and CPE310 CPUs. IC695ACC402 is for CPE330 ONLY. They are NOT interchangeable.

Q: How long does the capacitor pack last?
A: The capacitor pack has a life expectancy of 5 years. When the STAT LED indicates "Low Capacitance," replace the Cap Pack module (IC695ACC412).

Q: Can the Energy Pack be replaced while the CPU is running?
A: Yes, the Energy Pack can be replaced while the CPU is in operation. However, if power loss occurs while the Energy Pack is disconnected or not fully charged, memory loss may occur.

Q: What cable is required?
A: The IC695ACC402 includes a cable. For replacement, order IC695CBL002 (1.0 m / 39" cable).

Installation Guide

1. Mount the Energy Pack on the left side of the RX3i CPE330 CPU module.
2. Ensure 25 mm clearance around the unit for heat dissipation.
3. Connect the Energy Pack to the CPU using the included IC695CBL002 cable.
4. Verify LED indicators show "Charged" status after power-up.
5. Monitor STAT LED periodically for "Low Capacitance" warning.

Selection Tips

• Mandatory: Verify CPU model is CPE330 before ordering IC695ACC402.
• For CPE302/CPE305/CPE310, order IC695ACC400 instead.
• Order replacement Cap Pack IC695ACC412 proactively before 5-year life expires.
• Order replacement cable IC695CBL002 if original cable is damaged.
• The IC695ACC402 is also available as part of the IC695CPK330 kit (bundles CPE330 + Energy Pack).
