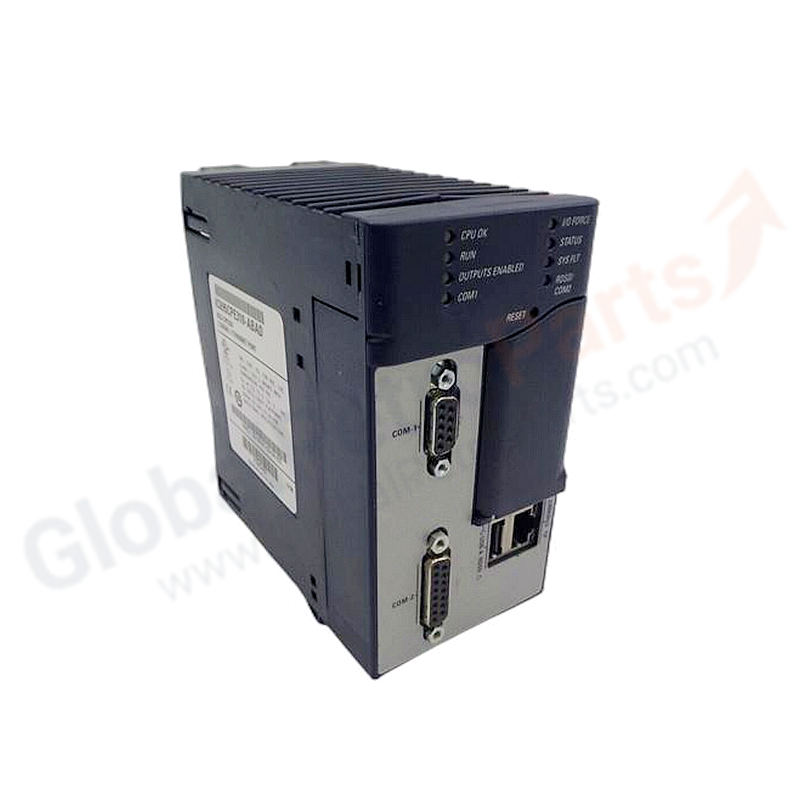

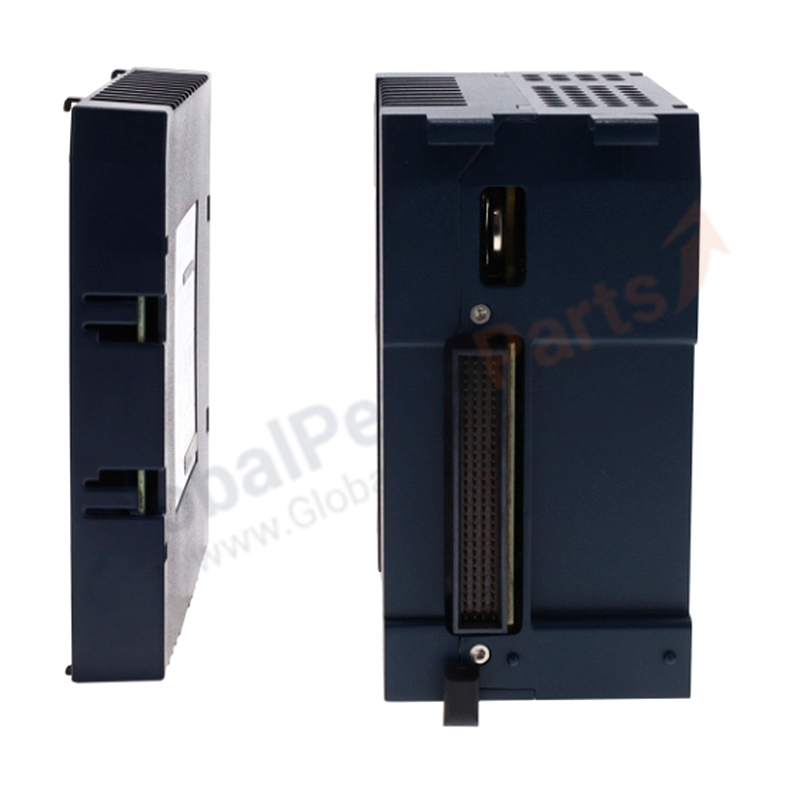

GE Fanuc IC695CPE310 RX3i 1.1 GHz CPU Module

Product Overview

The GE IC695CPE310 is a high-performance mid-range CPU for the Emerson PACSystems RX3i programmable automation controller platform.

Key Specifications

• Model Number: IC695CPE310
• Series: PACSystems RX3i
• Product Type: Central Processor Unit (CPU)
• Processor: 1.1 GHz Intel Atom
• User Logic Memory: 10 MB (SRAM and non-volatile Flash)
• Discrete I/O Memory: 32 KB
• Analog I/O Memory: 32 KB
• Program Storage: 10 MB
• Boolean Execution Speed: 0.72 ms/k
• Floating Point Support: Yes
• Number of Local Racks: Up to 8

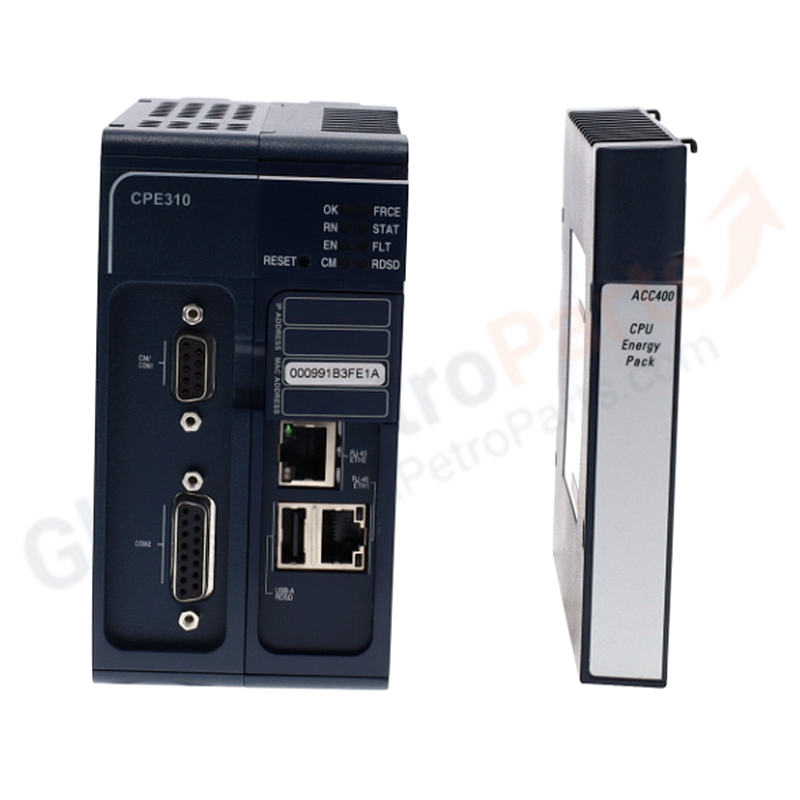

• Communication Ports:
  • 1 × Ethernet (RJ-45, 10/100 Mbps)
  • 1 × RS-232
  • 1 × RS-485
  • 1 × USB Master (USB-A 2.0)
• Supported Protocols: SNP, Serial I/O, Modbus Master, Modbus Slave, SRTP Client/Server, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3, Modbus RTU Slave
• Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, C Language
• Power Requirement: 1 A @ +5V / +3.3V DC; 0.5 A @ +24V DC
• Slots Required: 2 slots
• Backplane: Universal RX3i Backplane
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Firmware: Upgradable (e.g., v8.65, v9.90)
• Dimensions: Standard RX3i rack size
• Weight: 3.75 lbs
• Certifications: CE, UL, RoHS

Core Features

• High-speed 1.1 GHz Intel Atom processor for complex automation logic
• 10 MB user memory for large-scale applications
• Multiple communication interfaces (Ethernet, RS-232, RS-485, USB)
• Supports up to 8 local racks for scalable I/O configurations
• Floating-point calculations for advanced control operations
• Field-upgradable firmware for security and OPC UA stability
• Compatible with SRTP, Modbus TCP/IP, OPC UA, EGD, PROFINET protocols

Applications

• Mid-size industrial process automation
• Turbine and energy control systems
• Factory floor monitoring and control
• Mission-critical control requiring high availability

FAQ

Q: What is the difference between IC695CPE310 and IC695CPU315?
A: The IC695CPE310 is a 2-slot CPU with 1.1 GHz Atom processor and 10 MB memory. The IC695CPU315 is a 1-slot CPU with 1 GHz Celeron-M processor and 20 MB memory. The CPE310 is newer and supports more modern protocols like OPC UA.

Q: Is the IC695CPE310 compatible with IC695ACC400 Energy Pack?
A: No. The IC695CPE310 requires the IC695ACC402 Energy Pack (if applicable). Verify compatibility with specific CPU revision.

Installation Guide

1. Insert the IC695CPE310 into two adjacent slots of the RX3i universal backplane.
2. Connect Ethernet cable to the RJ-45 port for network communication.
3. Connect serial cables to RS-232/RS-485 ports if needed.
4. Load application program via Machine Edition software.
5. Configure I/O addressing and communication parameters.

Selection Tips

• For higher performance, consider IC695CPE330 (with IC695ACC402 Energy Pack).
• For redundancy, pair with IC695RMX128 and IC695PNC001.
• Verify firmware version supports required protocols (OPC UA requires v8.65+).
• Order IC695ACC402 Energy Pack for memory retention (not IC695ACC400).
