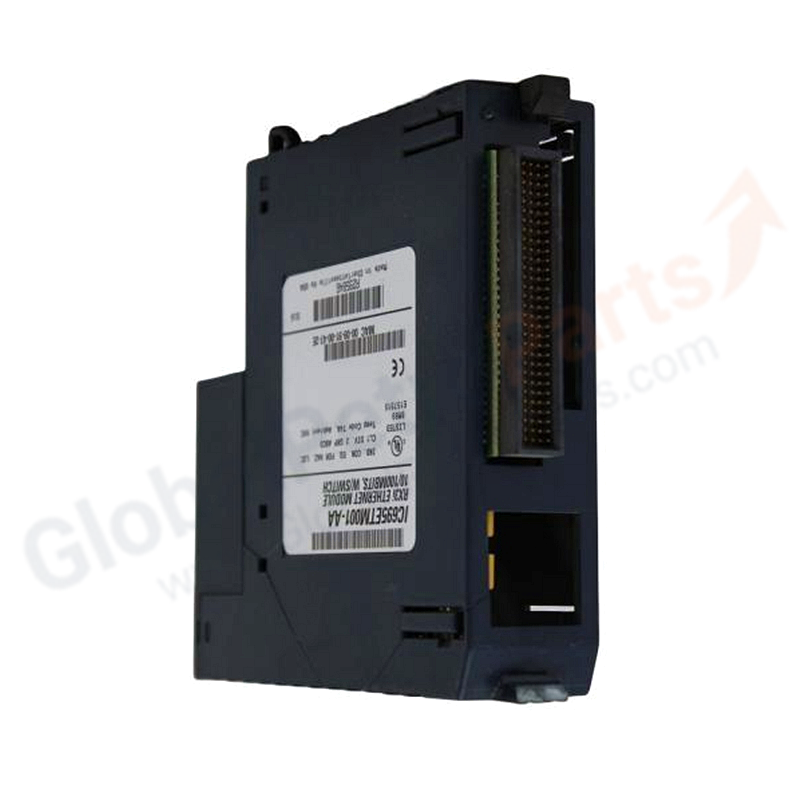

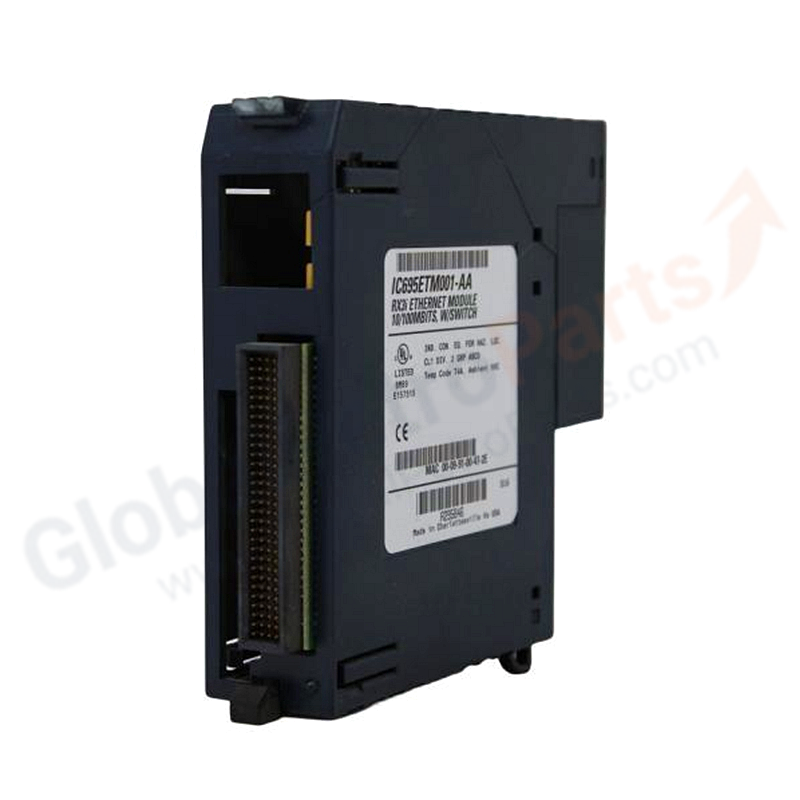

GE Fanuc IC695ETM001 PACSystems RX3i Ethernet Module

Product Overview

The GE IC695ETM001 is an Ethernet Interface Module for the Emerson PACSystems RX3i programmable automation controller platform. It connects the RX3i controller to an Ethernet network, enabling communication with other PACSystems equipment, Series 90 controllers, and VersaMax controllers via TCP/IP protocols including SRTP, Modbus TCP, and Ethernet Global Data (EGD).

Key Specifications

• Model Number: IC695ETM001
• Series: PACSystems RX3i
• Product Type: Ethernet Interface Module
• Processing Speed: 200 MHz
• Bus Speed: 10/100 Mbaud (auto-sensing)
• Ethernet Ports: 2 × RJ-45 shielded twisted-pair ports
• Network Support: 10BaseT / 100BaseTX IEEE 802.3 (auto-negotiate, speed, crossover detection)
• Protocols: SRTP, Modbus TCP, Ethernet Global Data (EGD)
• Serial Port: RS-232 Station Manager port
• Serial Data Rates: 1200 bps to 115,200 bps
• Redundant IP: Configurable stand-alone redundant IP addressing for redundant controller pairs
• Time Synchronization: SNTP time server (with CPU firmware 5.00 or later)

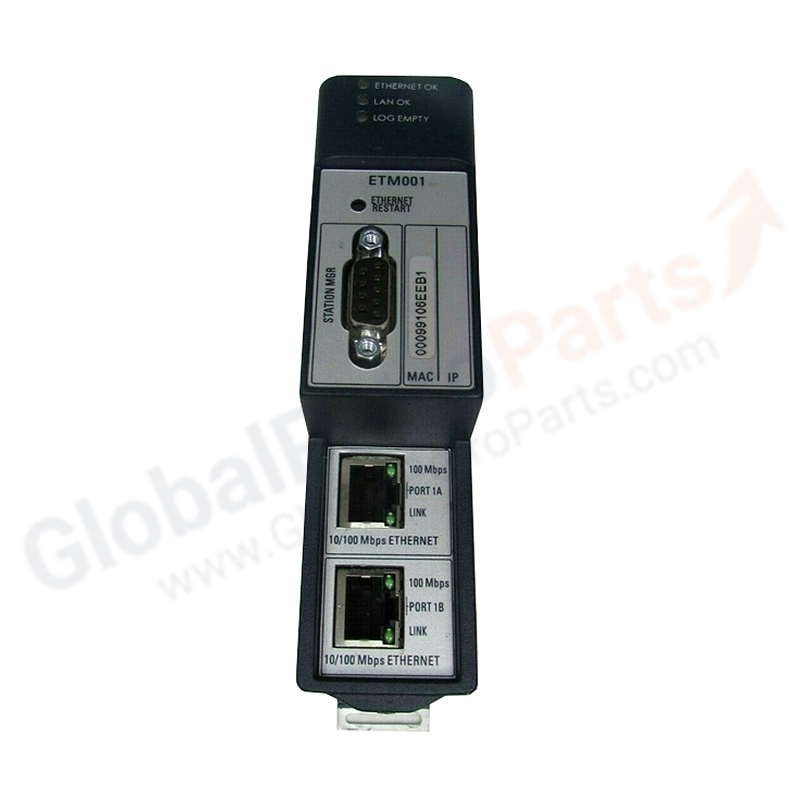

• LED Indicators: Ethernet OK, LAN OK, Log Empty, individual port activity and speed LEDs
• Dimensions: 1.5" × 5.3" × 5.5" (3.8 × 13.3 × 14.0 cm)
• Weight: 0.2 kg (8.0 oz)
• Slots Required: 1 slot
• Origin: USA

Core Features

• Dual auto-sensing 10/100 Mbps Ethernet ports with internal network switch
• Supports SRTP channels, Modbus/TCP Server, and Modbus/TCP Client
• Ethernet Global Data (EGD) for periodic data exchange
• Built-in Station Manager for online supervisory access via dedicated port
• Embedded Ethernet restart pushbutton for firmware restart without power cycling
• Redundant IP addressing for hot standby controller configurations
• Firmware upgradeable via WinLoader utility from RX3i CPU

Applications

• RX3i controller Ethernet network integration
• SCADA and HMI communication
• Remote programming and diagnostics
• Redundant controller Ethernet connectivity
• Time-synchronized distributed control systems

FAQ

Q: Is the IC695ETM001 just a backplane terminator?
A: No. The IC695ETM001 is a full-featured Ethernet Interface Module with 200 MHz processor, dual RJ-45 ports, and complete TCP/IP communication capabilities. It is NOT a passive terminator.

Q: What is the difference between IC695ETM001 and IC695ETM001-CD?
A: The -CD suffix indicates a specific firmware or hardware revision. Both provide identical Ethernet communication functionality.

Installation Guide

1. Insert the IC695ETM001 into any slot of the RX3i universal backplane.
2. Connect Ethernet cable to either RJ-45 port (auto-sensing, no crossover cable needed).
3. Configure IP address via RX3i programming software.
4. For redundant IP, configure stand-alone redundant IP address in addition to normal unique IP.
5. Verify Ethernet OK and LAN OK LEDs are illuminated.

Selection Tips

• For newer Ethernet applications, consider IC695ETM001-EK with enhanced firmware.
• Verify CPU firmware version supports EGD and SNTP features.
• Use shielded CAT5e or better cable for reliable 100 Mbps operation.
