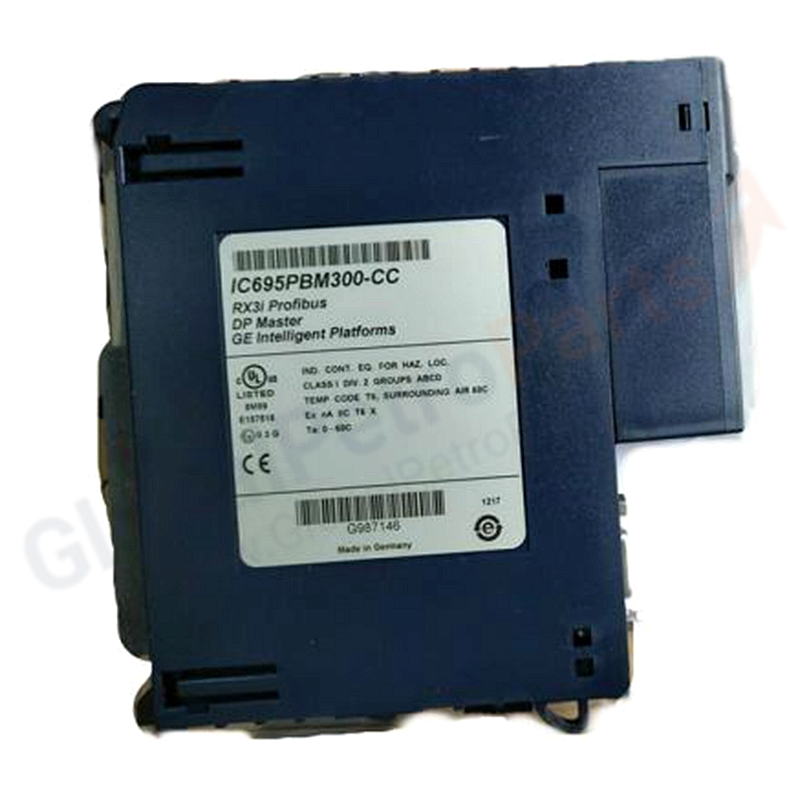

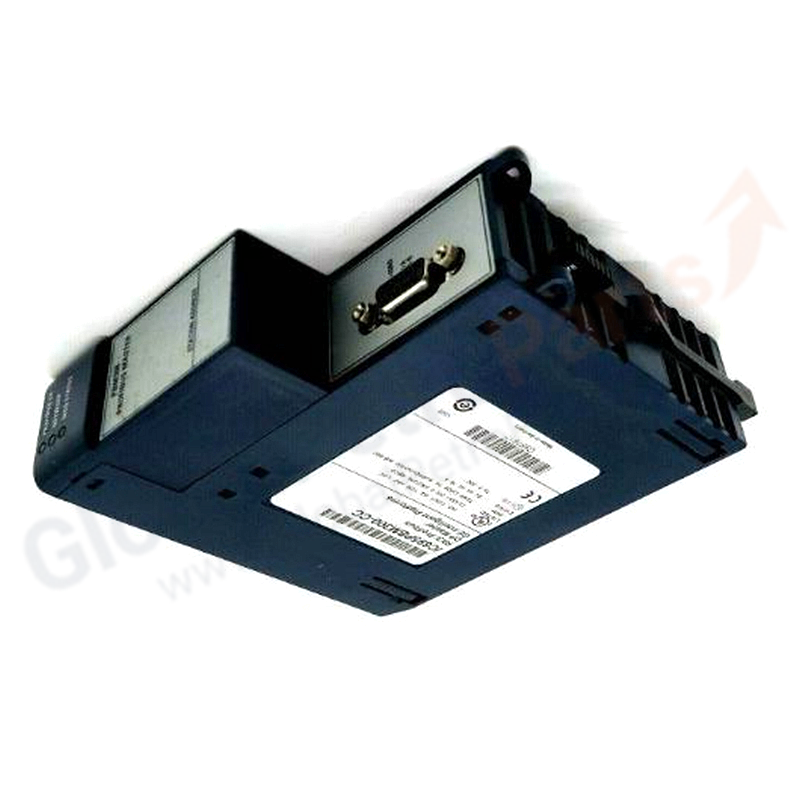

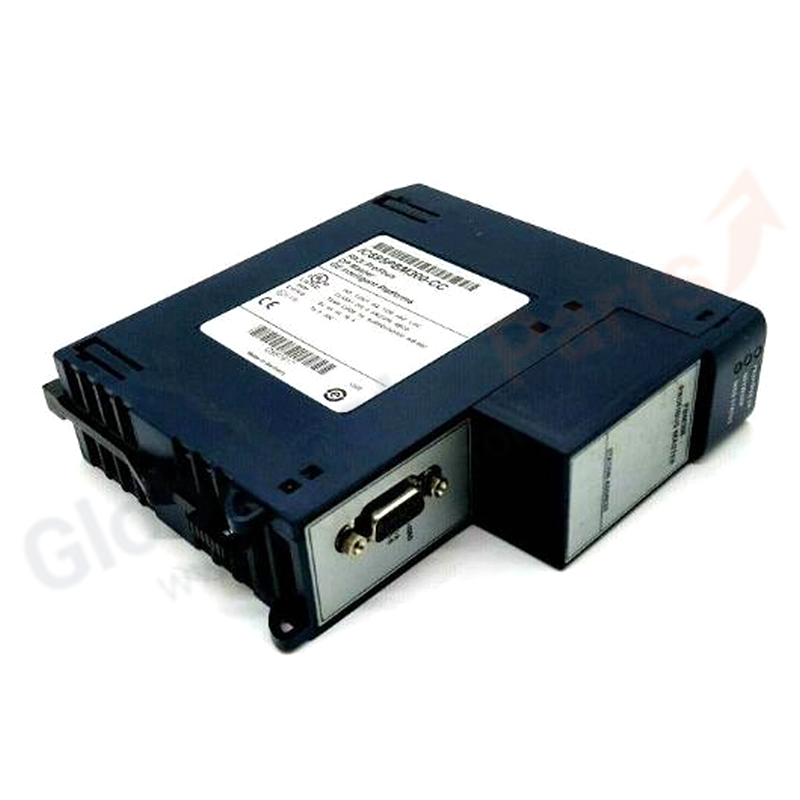

GE Fanuc IC695PBM300 RX3i Profibus DP Master Module

Product Overview

The GE IC695PBM300 is a PROFIBUS-DP Master Module for the Emerson PACSystems RX3i programmable automation controller platform. It enables the RX3i controller to act as a DP-Master Class 1 on a PROFIBUS-DP network, managing up to 125 slave devices with deterministic high-speed communication for distributed control systems.

Key Specifications

• Model Number: IC695PBM300
• Series: PACSystems RX3i
• Product Type: PROFIBUS-DP Master Module
• Supported DP Slaves: Up to 125 slaves
• I/O Size per Slave: Up to 244 bytes input / 244 bytes output
• Total I/O Capacity: 3,584 bytes input / 3,584 bytes output
• Supported Baud Rates: 9.6 k, 19.2 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M bps
• Protocol Support: DP, DP-V1 (Read/Write, Alarms), Sync/Freeze modes
• Communication Port: 1 × RS-485 PROFIBUS Master port (9-pin Sub-D)
• Power Consumption: ~440 mA @ 3.3 VDC
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Slot Requirement: 1 slot in RX3i universal backplane
• Hot-Swap Capability: Yes (in non-hazardous zones)
• Firmware Upgrade: Via host RX3i CPU using WinLoader utility
• Weight: 0.141 kg (141g)
• Software Requirements: Machine Edition Logic Developer v5.0 or later
• CPU Firmware: Version 2.9 or later required

Core Features

• DP-Master Class 1 for up to 125 PROFIBUS-DP slave devices
• Supports all standard PROFIBUS baud rates from 9.6 kbit/s to 12 Mbit/s
• DP-V1 read/write and alarm messaging for intelligent device integration
• Sync and Freeze modes for synchronized multi-device control
• Comprehensive diagnostics: slave status array, network counters, diagnostic addresses
• Hot-swappable for online maintenance
• Firmware upgradeable via WinLoader without module removal

Applications

• PROFIBUS-DP network integration with RX3i PACSystems
• Distributed I/O control in manufacturing automation
• Variable frequency drive (VFD) control via PROFIBUS
• Process instrumentation and smart device integration
• Retrofit of legacy PROFIBUS networks into RX3i architecture

FAQ

Q: Is the IC695PBM300 a CPU?
A: No. The IC695PBM300 is a communication interface module, not a processor. It occupies one backplane slot and is programmed by the host RX3i CPU.

Q: What is the difference between IC695PBM300-BA, -CC, and -EC?
A: These are different hardware/firmware revisions. The -CC and -EC versions include enhanced features and firmware improvements. Verify compatibility with your application before ordering.

Q: What is the maximum cable length?
A: At 12 Mbit/s: 100 m; at 1.5 Mbit/s: 200 m; at 93.75 kbit/s: 1,200 m (per PROFIBUS EN 50170).

Installation Guide

1. Power down the RX3i rack (or use hot-swap in non-hazardous zones).
2. Insert the IC695PBM300 into any slot of the RX3i universal backplane.
3. Connect the PROFIBUS-DP cable to the 9-pin Sub-D connector.
4. Install termination resistors at both ends of the PROFIBUS network.
5. Configure slave device parameters via Machine Edition software.
6. Verify network communication using module status LEDs.

Selection Tips

• For PROFINET networks, consider IC695PNC001 instead.
• Verify all PROFIBUS slave devices support the selected baud rate.
• Ensure CPU firmware is version 2.9 or later.
• Use shielded twisted-pair PROFIBUS cable for reliable communication.
• Enable termination only at the two electrical ends of the network segment.
