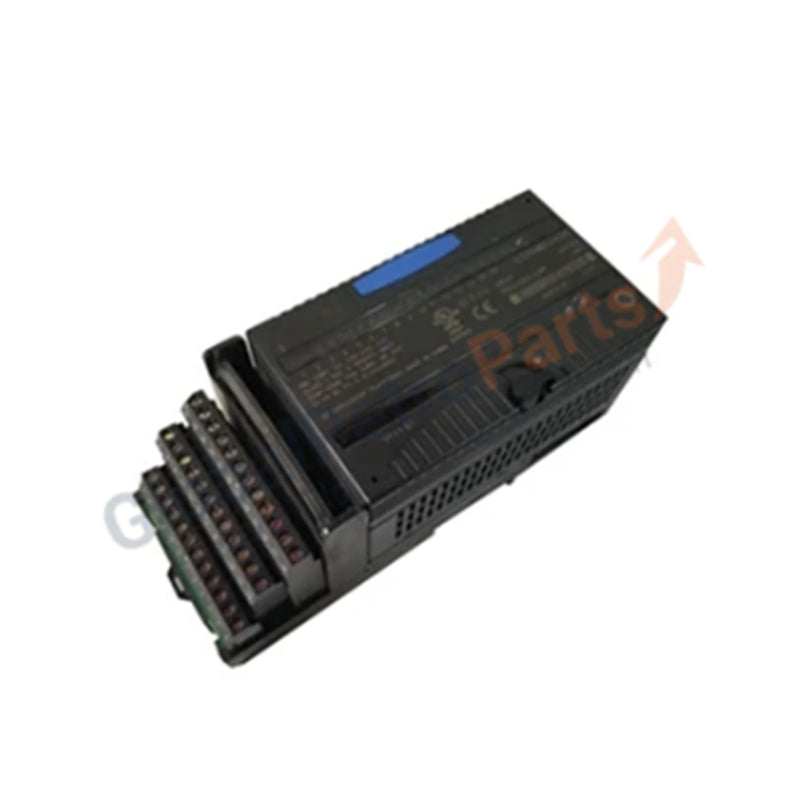

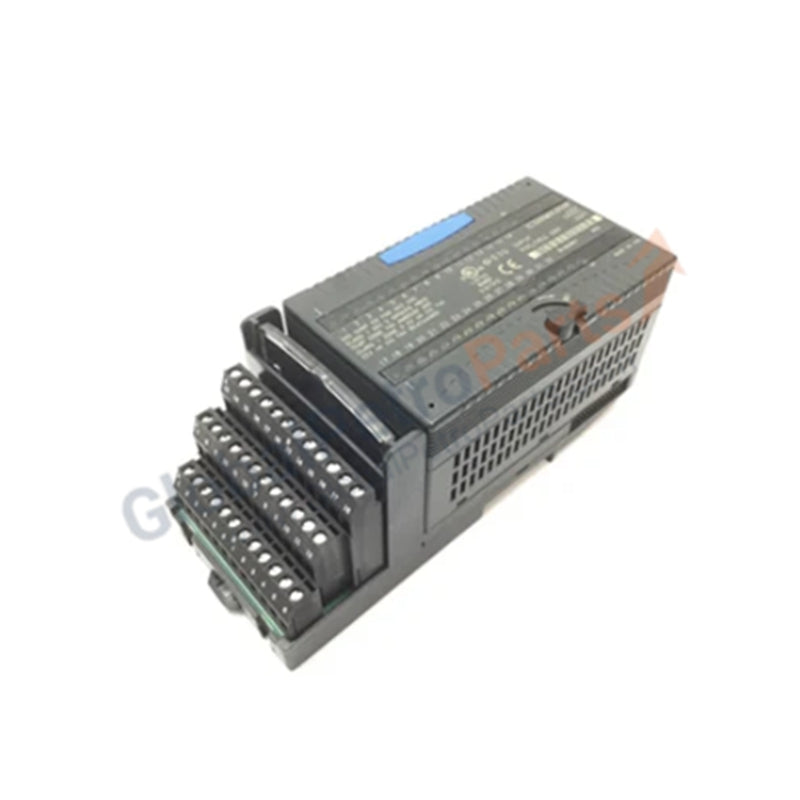

GE Fanuc VersaMax IC200MDL740 16-Point 24 VDC Positive Logic Output Module

Product Description

The GE Fanuc VersaMax IC200MDL740 is a discrete output module designed for reliable DC signal control in VersaMax PLC systems. It provides 16 output points in a single group, supporting nominal 12/24 VDC operation with fast response times. Each channel is capable of handling resistive loads up to 0.5 A, with inrush current support for short-duration peaks. Compact and efficient, this module integrates seamlessly into VersaMax I/O carriers, offering dependable performance for industrial automation applications.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC200MDL740

• Product Line: VersaMax I/O

• Product Type: Positive Logic Output Module

• Lifecycle Status: Active

• Weight: 0.45 kg (shipping weight: 1.5 kg)

• Number of Outputs: 16 points (single group)

• Nominal Output Voltage: 12/24 VDC

• Output Voltage Range: 10.2–30 VDC

• Load Current Capacity:

• 0.5 A per point at 30 VDC resistive load

• 2.0 A inrush maximum for 100 ms

• Response Time: 0.5 ms (On/Off)

• Isolation: No channel-to-channel isolation

• Protection: No internal fuses (external protection required)

• External Field Supply: 10.2–30 VDC, 12/24 VDC nominal

• Backplane Current Consumption: 45–50 mA at 5 VDC

• Dimensions (D × W × H): 50 × 110 × 66.8 mm

Application Scenarios

The IC200MDL740 is suitable for controlling DC loads in distributed control systems. It is commonly used in machine automation, packaging equipment, and process control applications where fast response and reliable 24 VDC output switching are required.

FAQ

Q: How many output points does the IC200MDL740 provide?  A: It supports 16 discrete output points in one group.

Q: What is the maximum load current per point?  A: 0.5 A per point at 30 VDC resistive load.

Q: Does the module include internal fuses?  A: No, external protection must be provided.
