GE Fanuc VersaMax IC200MDL741 16-Point 24 VDC Positive Logic Output Module

Product Description

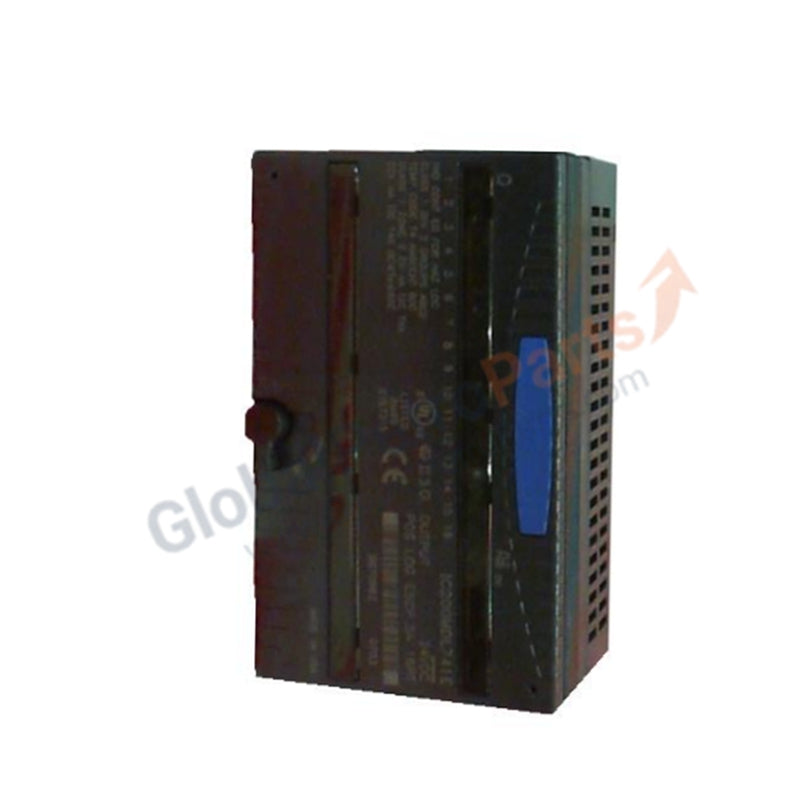

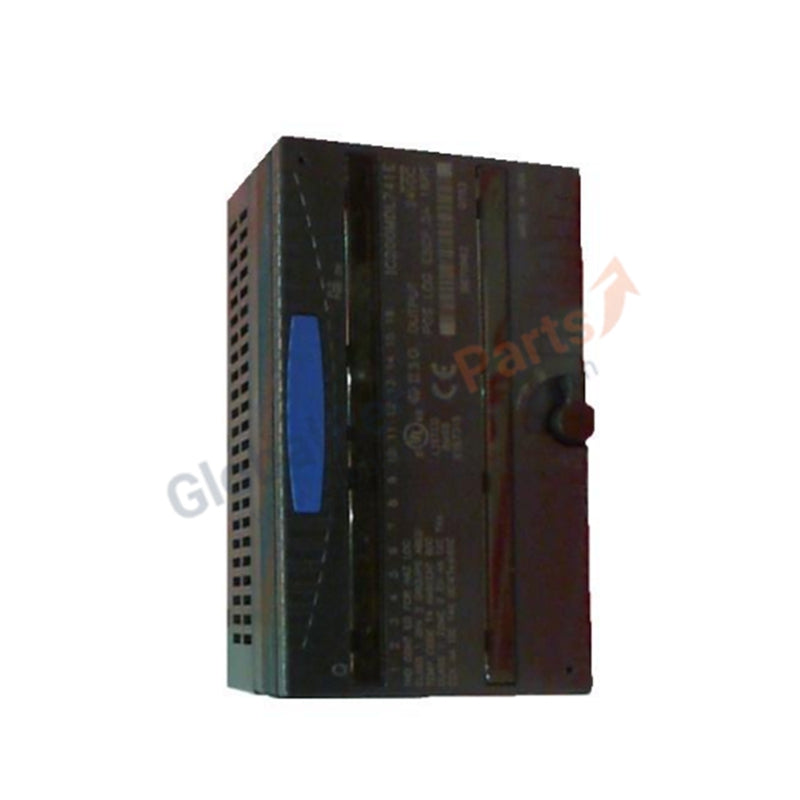

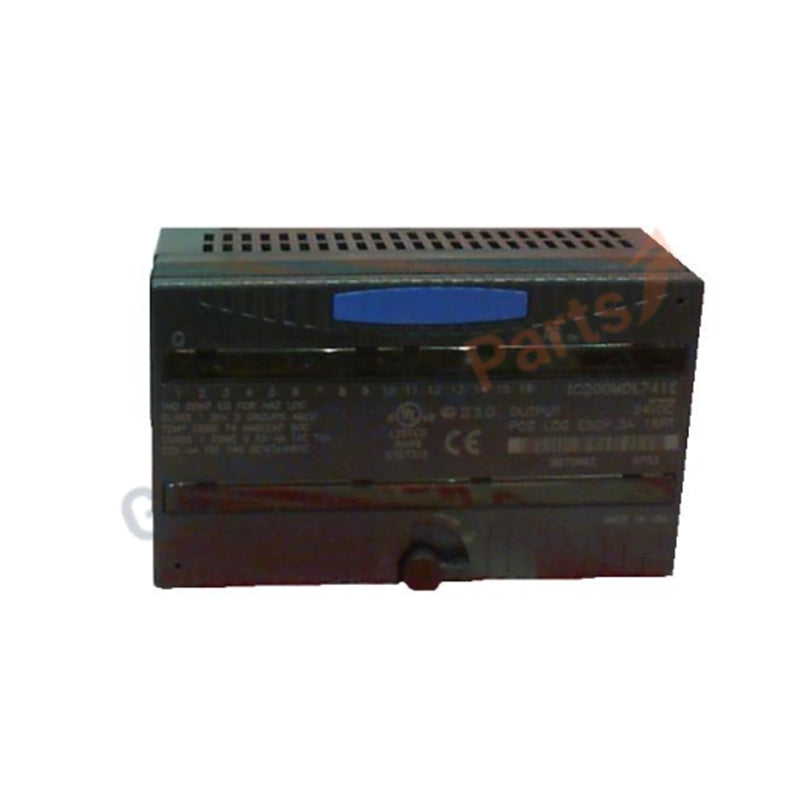

The GE Fanuc VersaMax IC200MDL741 is a discrete output module designed for DC load control in VersaMax PLC systems. It provides 16 output points operating on positive logic, with built-in protection features including short-circuit and overcurrent safeguards. Each channel is equipped with LED indicators for clear diagnostics, while system-level LEDs (OK and FLD PWR) provide additional monitoring. Compact and efficient, this module integrates seamlessly into VersaMax I/O carriers for reliable automation performance.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC200MDL741

• Product Line: VersaMax I/O

• Product Type: Discrete Output Module

• Weight: 0.25 lbs (0.11 kg)

• Number of Outputs: 16 points (single group)

• Nominal Output Voltage: 24 VDC positive logic

• Output Voltage Range: 18–30 VDC

• Isolation: No group-to-group or point-to-point isolation

• Indicators: One LED per output point, plus OK and FLD PWR LEDs

• Backplane Current Consumption: 75 mA at 5 VDC

• Protection Features: Short-circuit, overcurrent, and free-wheeling diodes

• External Field Supply: 18–30 VDC (24 VDC nominal)

• Module ID: FFFF8080

Application Scenarios

The IC200MDL741 is ideal for controlling DC loads in distributed control systems. It is commonly used in machine automation, packaging equipment, and process control applications requiring reliable 24 VDC output switching with built-in protection.

FAQ

Q: How many output points does the IC200MDL741 provide?  A: It supports 16 discrete output points.

Q: What is the nominal output voltage?  A: 24 VDC positive logic, with a range of 18–30 VDC.

Q: Does the module include protection features?  A: Yes, it provides short-circuit, overcurrent, and free-wheeling diode protection.
