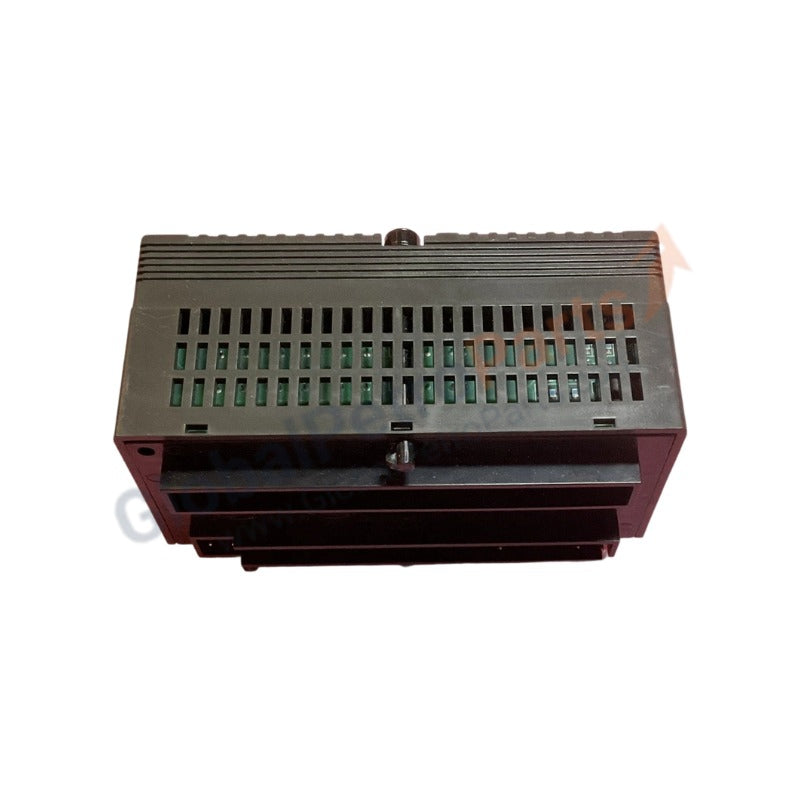

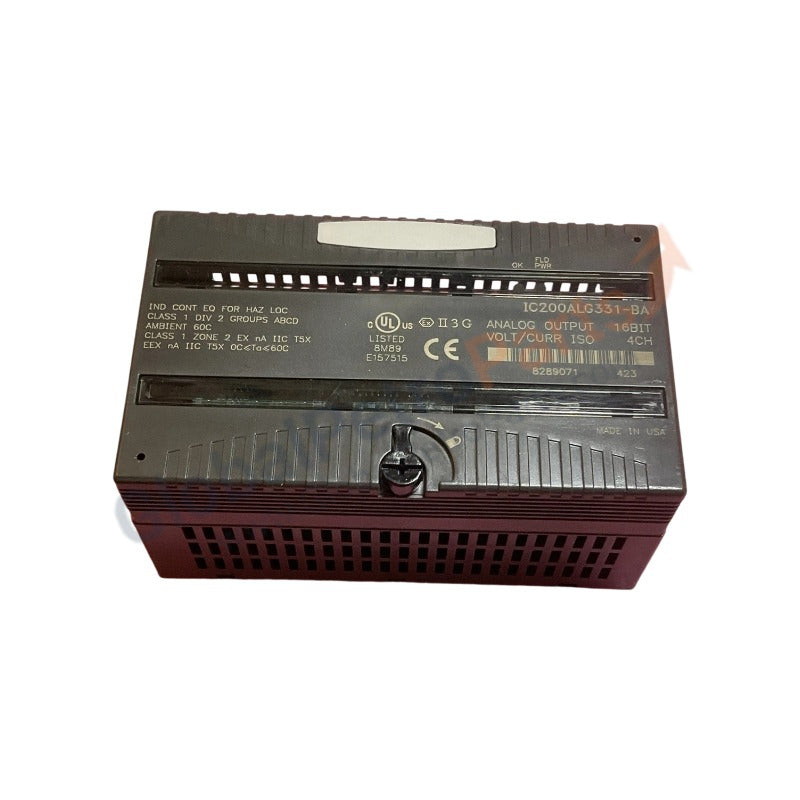

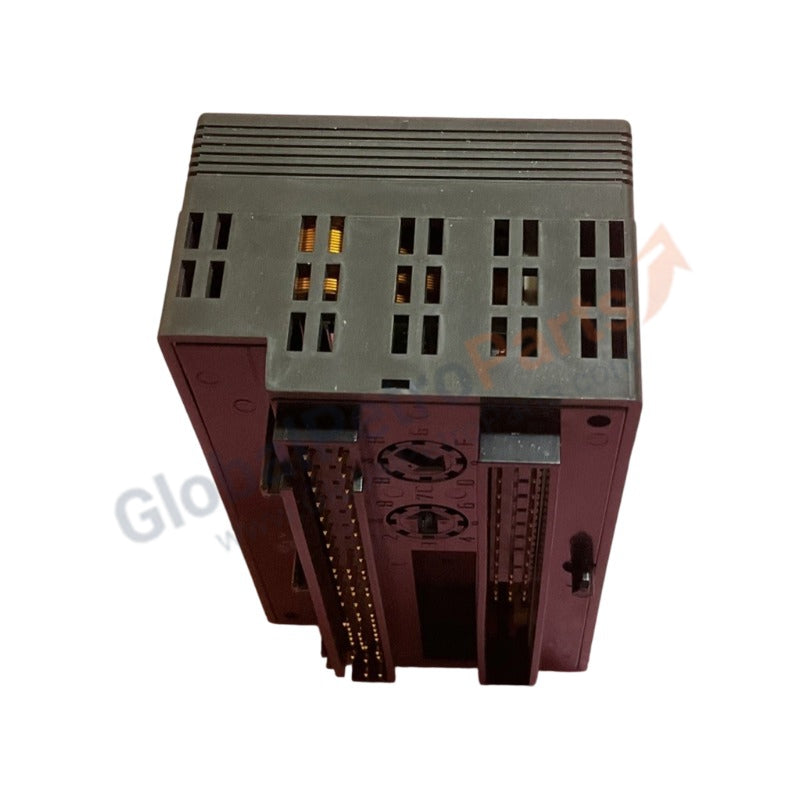

GE IC200ALG331 Analog Output Modules GE VersaMax

The GE IC200ALG331, also cataloged as the IC200ALG331 Analog Output Module, operates as a dedicated hardware component for analog loop control within VersaMax I/O station platforms.

Hardware Specifications

Backplane Bus Communication Velocity and Determinism

The hardware infrastructure uses an integrated internal network path to interface with the carrier rail, maintaining data conversion sync cycles during broad I/O density scaling field expansion. The 12-bit processing core converts multi-channel output registers concurrently within each controller execution thread, stabilizing deterministic networks without data transfer delays. The module architecture operates with native firmware flash compatibility features, permitting active system tracking updates and parameter table transfers directly through the host CPU register configuration map.

Frequently Asked Questions

Q: How does the module react to a complete drop in external 24 VDC field power?

A: When external loop power drops below 18 VDC, the module stops current loop generation across all 4 paths and writes a low-power diagnostic fault bit to the processor system memory. The local LED diagnostics switch states to indicate power loss.

Q: Can channels be configured independently for different current output ranges?

A: No. The configuration properties require that all 4 channels on the module operate uniformly within the same software selection parameter, assigning either 4-20 mA or 0-20 mA ranges to the entire interface group.

Q: Is hot-swapping supported for this analog converter configuration?

A: Hot-swapping is permitted only when the card is installed on a compatible active VersaMax carrier block that provides hot-plug capabilities. The field wiring terminal strip must be fully detached from the module block structure before removing the module chassis.

Field Installation Guidelines

• Carrier Insertion Sequence: Align the module tracks with the target slots on the VersaMax I/O carrier block. Press down firmly until the locking tab engages fully with the 35 mm DIN-rail backing, confirming that the metal earthing leaf creates solid electrical contact with the rail frame.
• Shield Grounding Control: Terminate all twisted-pair analog instrumentation shields at an isolated external ground bus bar located within the control panel layout. Avoid using individual terminal points on the module for high-frequency shielding grounds to eliminate signal cross-talk.
• Cabling Routing Restriction: Route the 4-20 mA current loops in dedicated low-voltage wiring pathways. Maintain a physical separation boundary of at least 100 mm from 3-phase AC mains conductors or variable speed motor drive wires inside the enclosure ducts.
