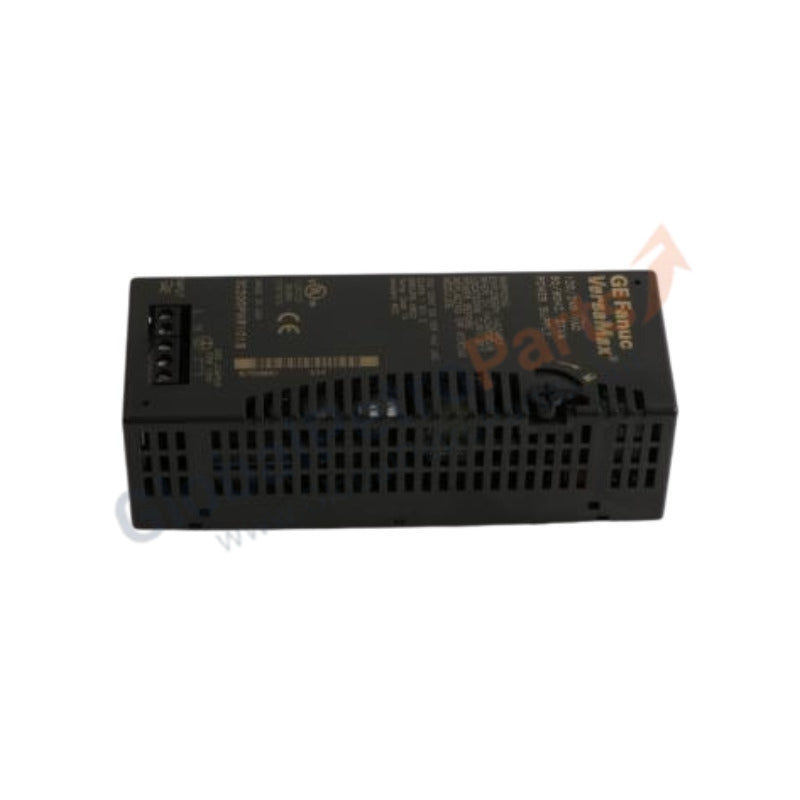

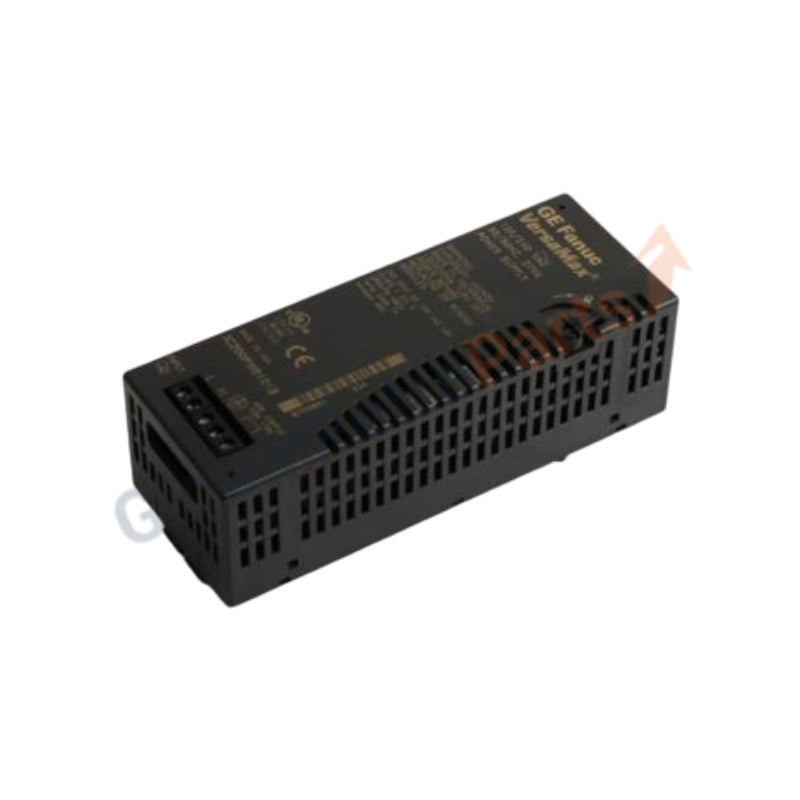

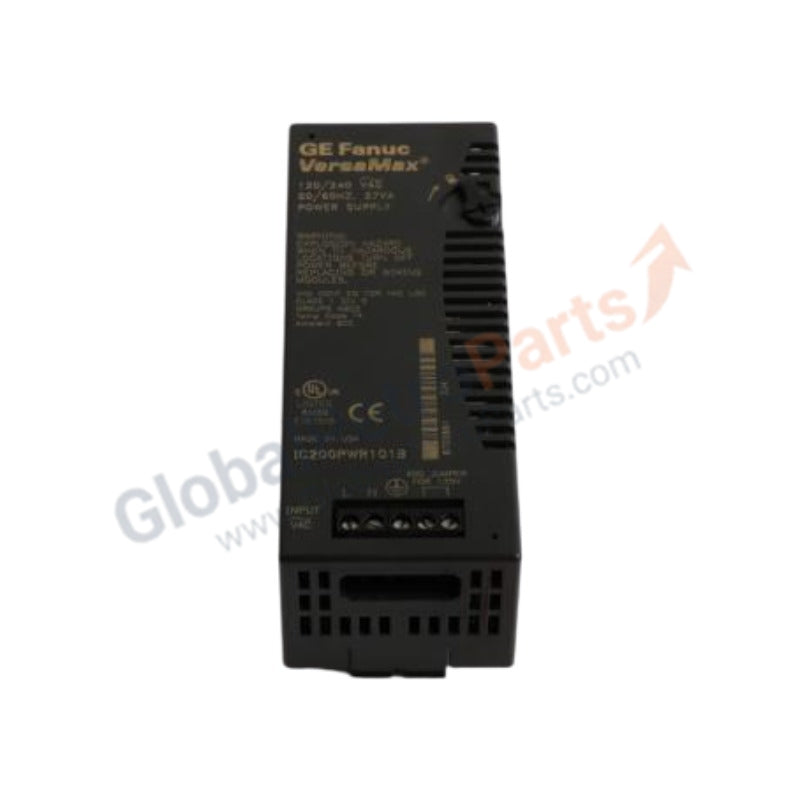

GE IC200PWR102 VersaMax Power Supply Module

The GE IC200PWR102, also cataloged as the IC200PWR102 Power Supply Module, operates as a dedicated hardware component for localized electrical distribution within VersaMax I/O station backplane networks. The device interfaces directly with a nominal AC source voltage to provide stable, regulated DC operating outputs to adjacent logic transmitters and peripheral interface circuits. It incorporates integrated high-frequency filtering components to decouple the internal system carrier plane from line-side electrical anomalies and transient voltage spikes.

Hardware Specifications

Backplane Bus Communication Velocity

This power module supports optimal backplane bus communication velocity by delivering stable current output that prevents voltage sags across the carrier infrastructure. Clean power regulation preserves signal edge integrity during synchronous data scan sequences across dense I/O modules. Active firmware flash compatibility within the system family is maintained through this continuous power delivery, which prevents controller reset conditions or timing latencies during high-capacity communication cycles.

Frequently Asked Questions

Q: Does the IC200PWR102 allow module hot-swap installation onto the carrier assembly during active power states?

A: No, hot-swapping the power supply module while the main alternating current input lines are energized is prohibited. The input circuit must be fully de-energized prior to removing or seating the module to avoid localized arcing and hardware component failure.

Q: How does the internal protection circuitry behave during an output overcurrent event?

A: The module enters a continuous hiccup mode under short-circuit or excessive current load profiles. The hardware stops voltage regulation until the fault condition is removed, at which point normal output distribution automatically resumes.

Q: Can this unit provide supplemental field-side power for inductive driving loops?

A: No, this unit is engineered exclusively to supply the logic power rails of the backplane. Field devices requiring external looping current must be powered through separate, isolated power delivery networks.

Field Installation Guidelines

Mount the module in a vertical orientation onto a standard 35 mm DIN-rail channel utilizing the unified VersaMax mounting carrier. Allow a clean clearance profile of at least 50 mm around all ventilation apertures to secure proper natural convective thermal heat sink dissipation. Connect input power conductors utilizing wire gauges from 14 AWG to 22 AWG securely terminated into the terminal block tracking. Connect the designated earth ground terminal point directly to a low-impedance master enclosure grounding bar using the shortest structural wire pathway possible.
