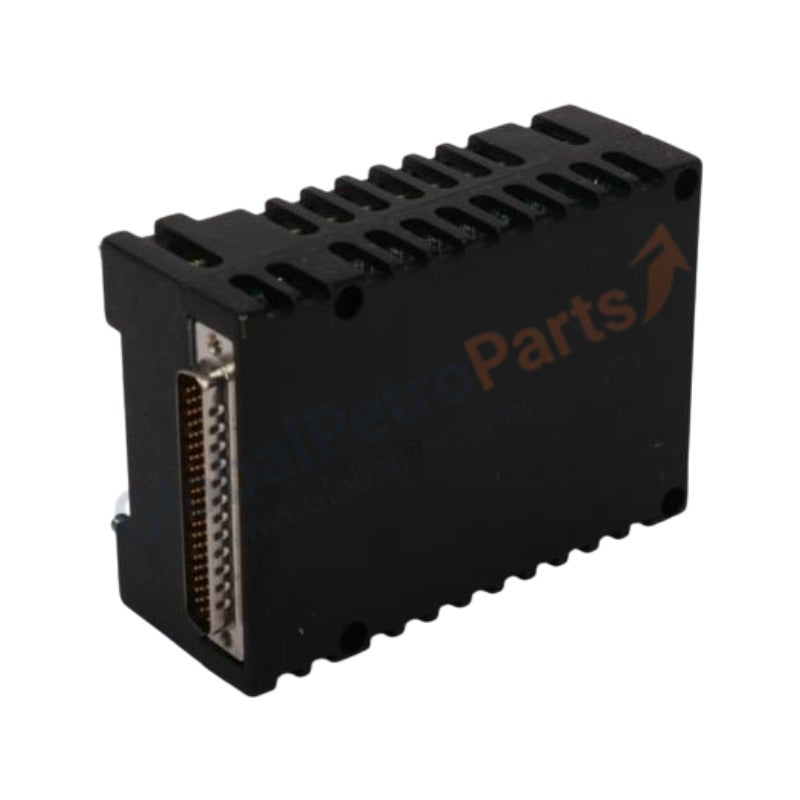

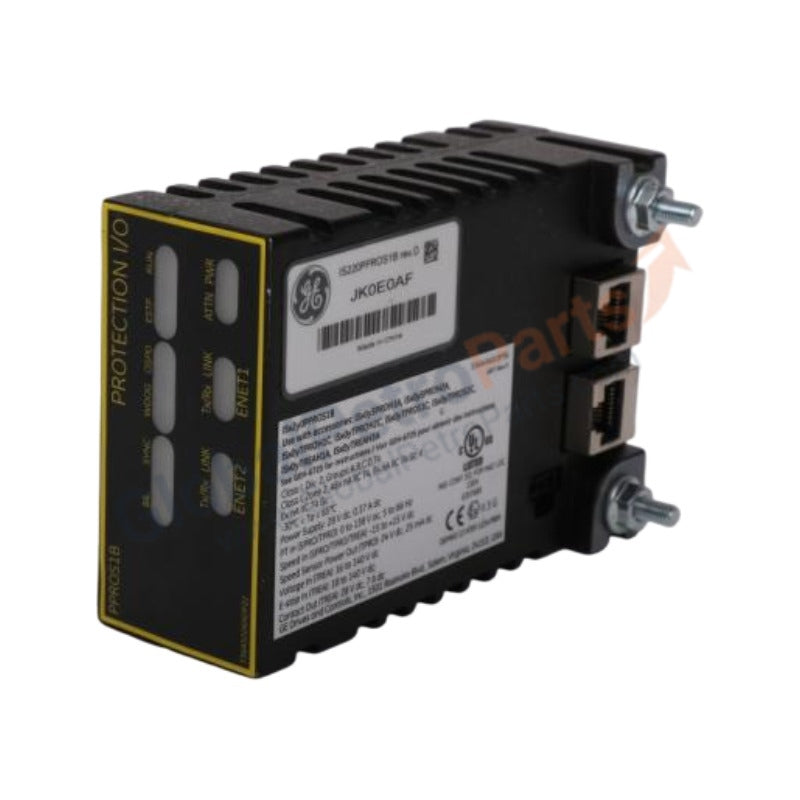

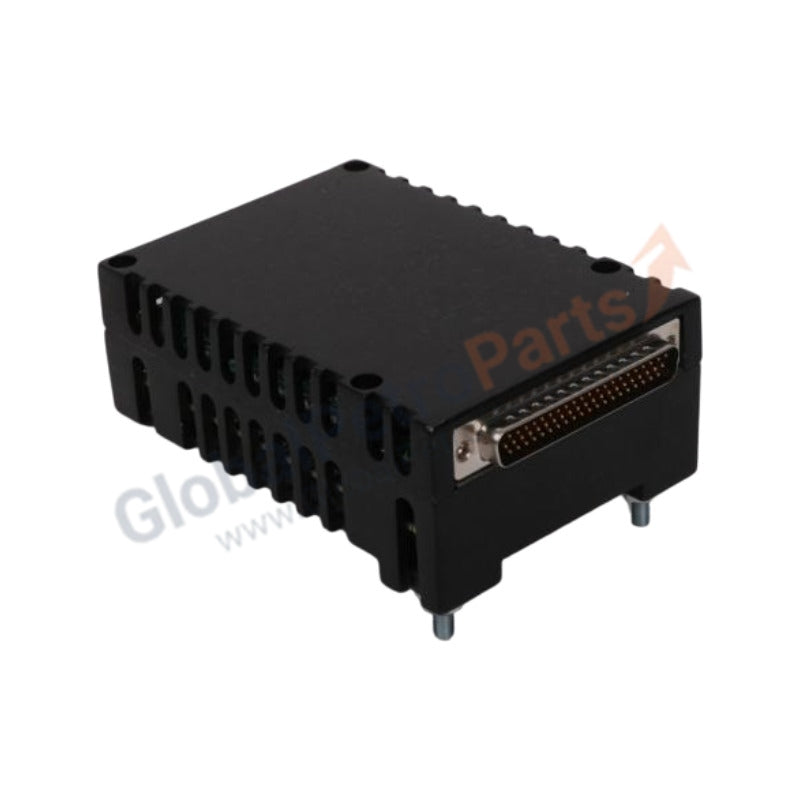

GE Mark VIe Emergency Turbine Protection I/O Pack | IS220PPROS1B

Product Overview

The GE IS220PPROS1B (IS220PPROS1B) functions as a dedicated Emergency Turbine Protection I/O pack within the Speedtronic Mark VIe and Mark VIes control platforms. This 100% brand new, authentic factory-sealed component provides independent hardware-based safety control loops to monitor critical speed, emergency trip, and synchronization parameters. Heavy power utilities, massive oil refineries, and marine propulsion networks deploy this compact module to execute emergency shutdown routines on large gas and steam turbines. The unit reads raw pulse rates directly from magnetic pickups to calculate absolute shaft speed independently of the main controller. By commanding direct-acting fuel trip valves, this module acts as the final line of defense against catastrophic overspeed events, protecting multimillion-dollar assets and maximizing overall plant safety metrics.

Part Number Breakdown

The structural alpha-numeric designations within the IS220PPROS1B product code describe the hardware profile and technical architecture specified by General Electric:

• IS220: Identifies the modular distributed I/O pack family operating on the high-speed IONet network within the Mark VIe control platform.

• PPRO: Establishes the specific functional group abbreviation representing the Emergency Turbine Protection application layer.

• S1: Specifies a standard single-width physical profile configuration housing a single microprocessor board.

• B: Denotes the second-generation factory-certified functional hardware revision layer, offering enhanced thermal and component performance.

Technical Specifications

Engineering Advantages

The hardware design and physical execution of the IS220PPROS1B resolve the most severe electrical and safety problems found in high-speed turbine halls:

• True Triple Modular Redundant (TMR) Speed Voting: This module coordinates with sister PPRO packs to implement a hardware-based two-out-of-three (2oo3) voting matrix on turbine speed sensors. The localized electronics process input signals instantly and vote on the results without waiting for core software loops. This design guarantees failsafe trip execution even if an entire channel suffers physical failure, avoiding both missed trips and catastrophic damage.

• Redundant Dual-Bus Communication (IONet): The module houses two distinct RJ45 ports that stream diagnostic logs and status updates across isolated IONet branches simultaneously. If physical stress breaks one communication line, the board continues running over the alternative path with zero data interruption. This eliminates nuisance turbine trips caused by standard network faults.

• Direct Terminal-Board Interfacing: The pack plugs directly into standard emergency protection terminal blocks (such as the SPRO board) using an integrated base connector. This rigid mechanical configuration eliminates internal interconnecting cables, stops wire insulation chaffing from turbine vibrations, and minimizes the overall footprint inside the control enclosure.

FAQs

• Does the IS220PPROS1B module arrive with original factory seals intact?

  Yes. We supply this component in 100% brand new, original factory-sealed condition. The product ships inside the original General Electric anti-static packaging complete with factory bar-coded labels and verified serial numbers.

• Can the IS220PPROS1B replace the older IS220PPROS1A model?

  Yes. The "B" version represents the direct factory-sanctioned functional replacement for the older "A" revision. It introduces updated component layouts to handle internal thermal stress better while maintaining absolute backward compatibility with existing terminal boards and software definitions.

• How does the module verify the health of the emergency trip circuit?

  The internal diagnostic circuits continuously pass a tiny, non-tripping supervisory current through the external solenoid trip lines. This pulse tracks the absolute integrity of the copper wire and valve coils. If a circuit breaks open or develops a short, the pack raises a diagnostic warning instantly so technicians resolve the fault before a true emergency occurs.
