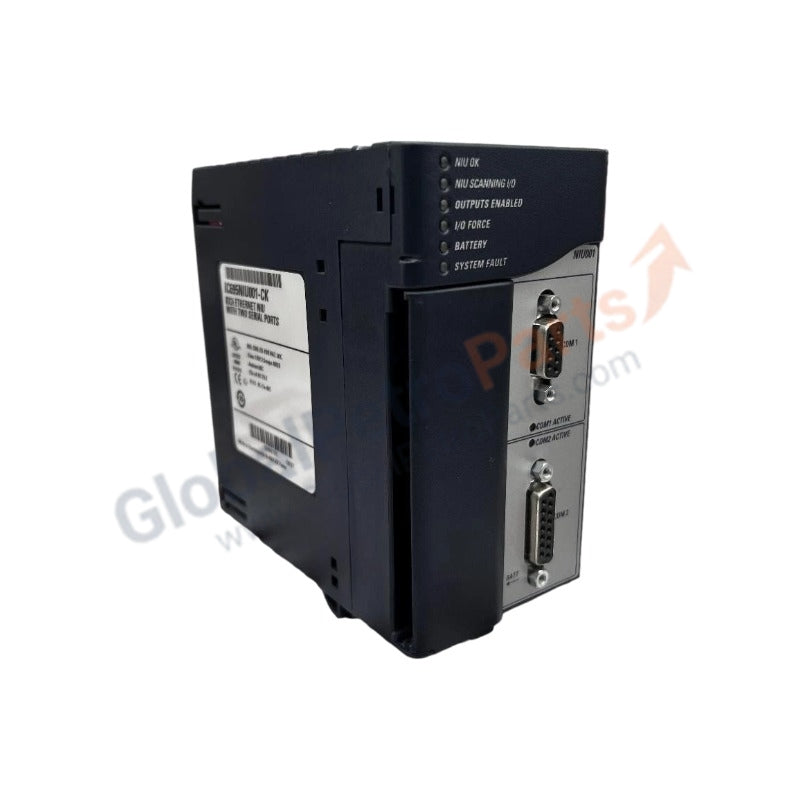

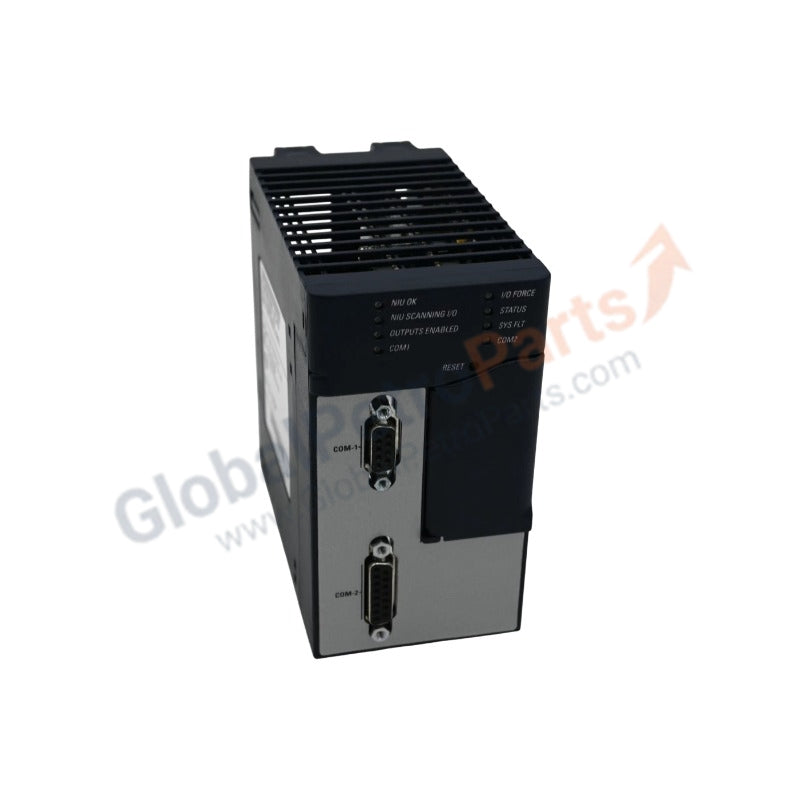

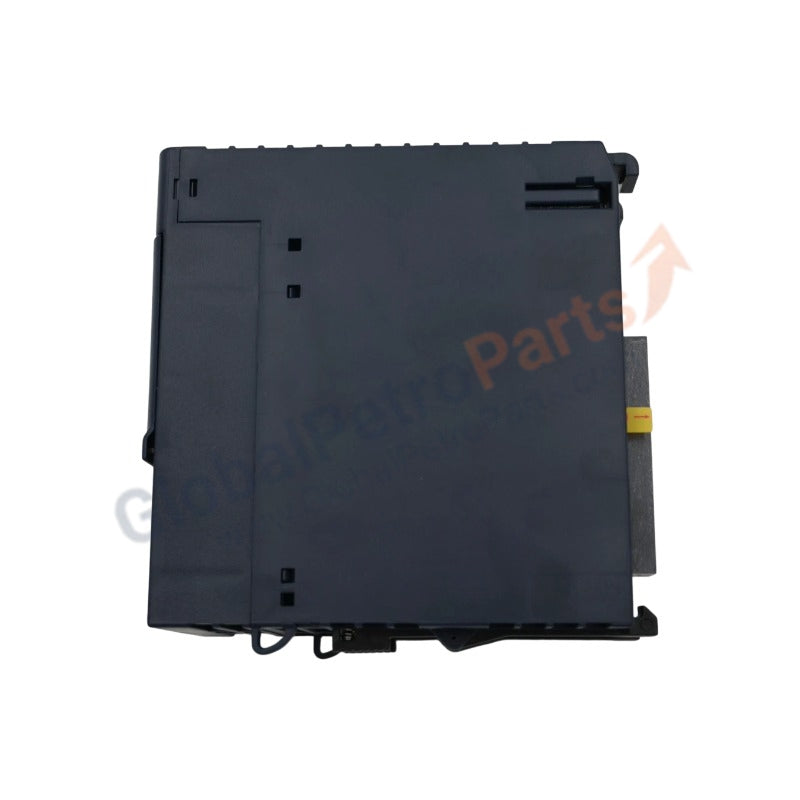

GE PACSystems RX3i IC695NIU001 Communication Modules

The GE IC695NIU001 serves as the primary IC695NIU001 Network Interface Unit utilized to execute remote I/O drops over deterministic networks across PACSystems RX3i platforms. The hardware establishes real-time data transference between a master controller and peripheral sub-racks via an integrated Ethernet communication port while managing local slot configurations over the PCI backplane.

Hardware Specifications

Deterministic Networks and Firmware Flash Compatibility

This network interface block directly engages the RX3i PCI backplane bus structure to maximize local data processing loop performance. It coordinates data transfers through Profinet or EtherNet/IP deterministic networks, enabling multi-point I/O density scaling across complex multi-slot expansion racks without introducing communication cycle jitter. The module relies completely on system firmware flash compatibility to synchronize immediate configuration profiles dispatched by the host processor during initialization. This native flash framework ensures consistent protocol processing updates, allowing online configuration changes while preventing scanning delays across the remote node matrix.

Frequently Asked Questions

Q: Does the IC695NIU001 module support active hot-swap insertion or extraction within an energized RX3i rack assembly?

A: Yes. The hardware architecture allows hot-swap operations within a universal RX3i backplane slot. The operator must engage the upper and lower mechanical clips smoothly during extraction or insertion to avoid generating signal reflections or disrupting active traffic on adjacent modules.

Q: How is the remote drop configuration sequence handled during initial setup?

A: The node does not maintain a local user application program. Configuration files are created inside the master CPU programmer software and downloaded over the deterministic network link directly to the unit, where parameters map to local register boundaries.

Q: What structural diagnostic actions occur if the network link is severed?

A: Upon a communication fault timeout, the module forces its internal status registers to flag a network loss, causing all local discrete and analog output points in the slave rack to transition immediately to their predefined default safe states.

Field Installation Guidelines

• Slot Allocation Parameters: The unit must be inserted into the designated left-most slot of an RX3i universal backplane frame to achieve proper bus control arbitration.
• Shield Grounding Maintenance: Connect the network cable shield directly to the external chassis earth grounding bus. Ensure the module faceplate screws maintain low-impedance connection continuity to the grounded rack rails.
• Torque and Connection Constraints: Ensure the front network connections and grounding straps are properly tightened, maintaining uniform tension on all field hardware fittings to prevent high-resistance contact loops.
• Conduit and Cable Routing Separation: Route the high-speed Ethernet signaling lines through dedicated conduits kept at a minimum distance of 10 cm from parallel high-voltage AC power loops to eliminate inductive noise issues.
