GE VersaMax Digital I/O Cards IC200MDL240

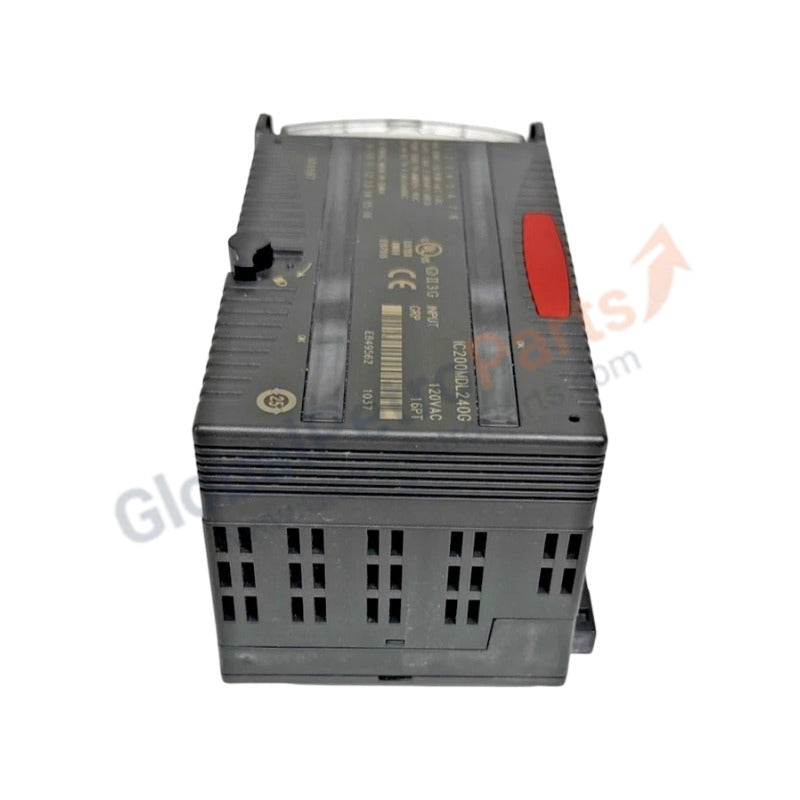

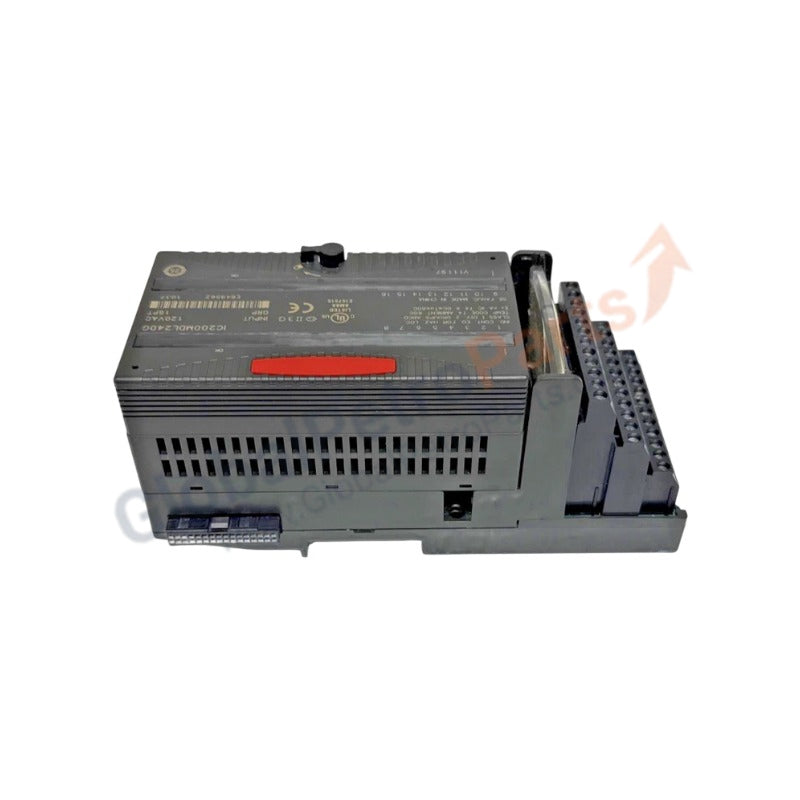

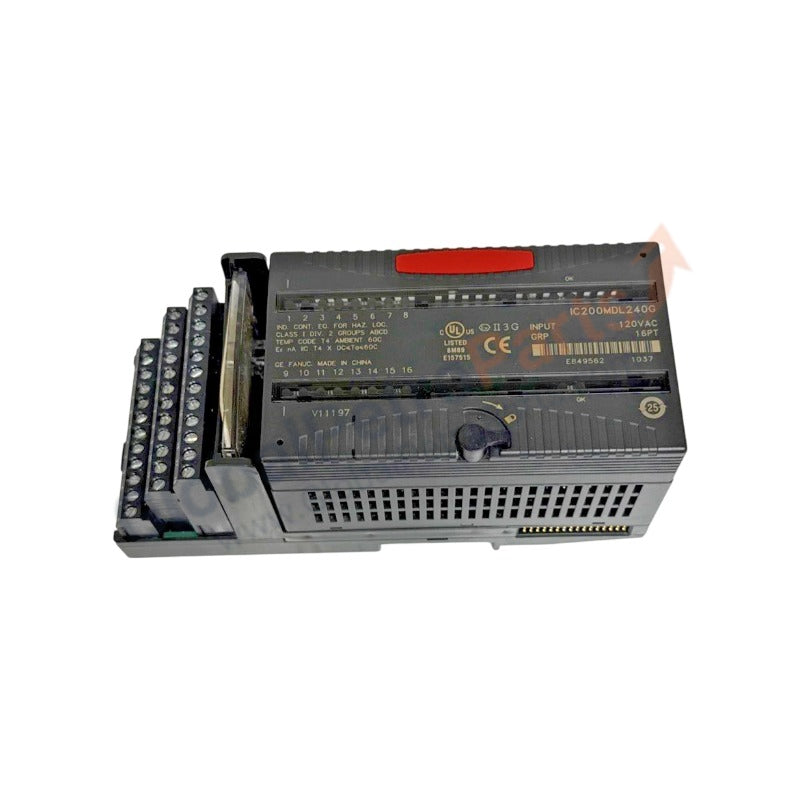

The GE IC200MDL240, also cataloged as the IC200MDL240 Discrete Input Module, operates as a dedicated hardware component for AC voltage state detection within VersaMax I/O station platforms.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The input tracking logic architecture interfaces with adjacent modules via the parallel rail interface, mapping external AC line potentials directly into internal controller status registers. The hardware supports extensive I/O density scaling options across localized station drops while maintaining standard backplane bus communication velocity parameters. Process variable transfers integrate seamlessly into Profinet / EtherNet/IP deterministic networks through a matching network interface unit, verifying precise signal updating without modifying core configuration blocks or breaching firmware flash compatibility baselines.

Frequently Asked Questions

Q: How does the internal electronic circuit filter high-frequency line noise on the AC inputs?

A: Each input channel incorporates a dedicated resistance-capacitance (RC) filter framework coupled with optical isolation. This input filtering configuration introduces a hardware response delay time of 20 ms maximum for both off-to-on and on-to-off signal transitions to suppress transient voltage spikes.

Q: Is hot-swapping permitted for this specific 120 VAC discrete component?

A: Hot-swapping is supported only if the module is positioned on an active VersaMax terminal carrier base configured for hot-plug sequence execution. The external field wiring block must be unlatched and separated from the module body prior to extraction to isolate the 120 VAC line hazards.

Q: What are the continuous power implications when all 16 channels are in the active on-state?

A: Internal logic processing draws a maximum of 45 mA from the 5 VDC backplane rail. The continuous current draw for the 120 VAC field monitoring loop is restricted to 12 mA per channel at nominal voltage levels, which is dissipated internally via standard convective airflow.

Field Installation Guidelines

• Chassis Rail Attachment: Position the module housing onto the target tracking guides of the carrier base secured to a 35 mm DIN-rail frame. Press down firmly until the integrated plastic locking tab engages completely, verifying that the back earthing element contacts the unpainted metal surface.
• AC Conductor Isolation Routing: Route all 120 VAC field input lines inside separate high-voltage wiring ducts. Maintain a physical distance separation boundary of at least 100 mm from low-voltage DC measurement loops or communication cables to prevent capacitive noise coupling.
• Terminal Block Ground Reference: Connect the field neutral line directly to the designated common point of the terminal block assembly. Apply a uniform tightening torque specification limit of 0.5 Nm across all screw connections to guarantee mechanical trace stability.
