GE VersaMax IC200ALG263 Analog Input Modules

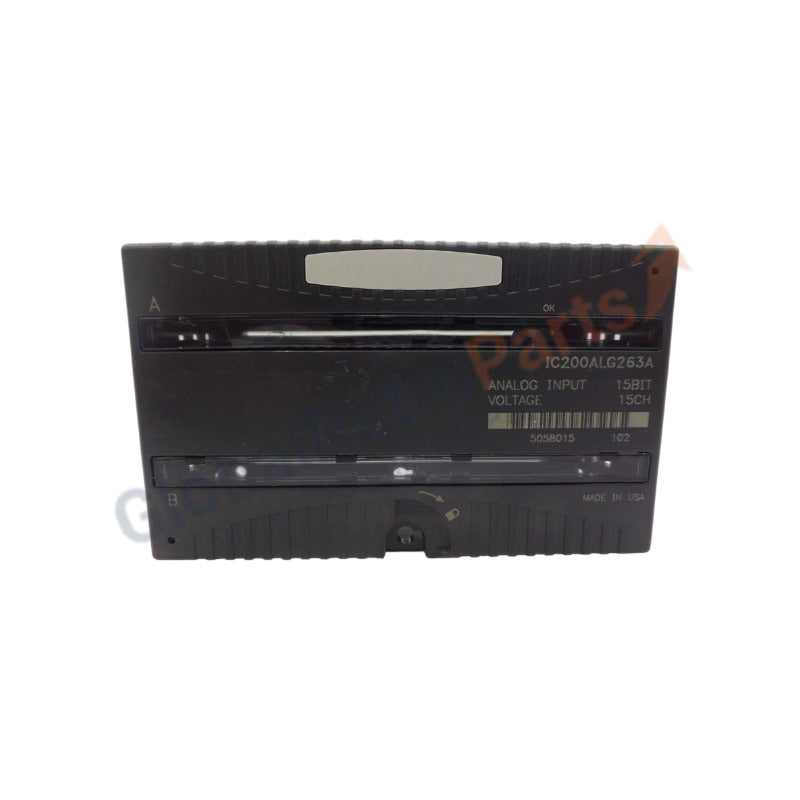

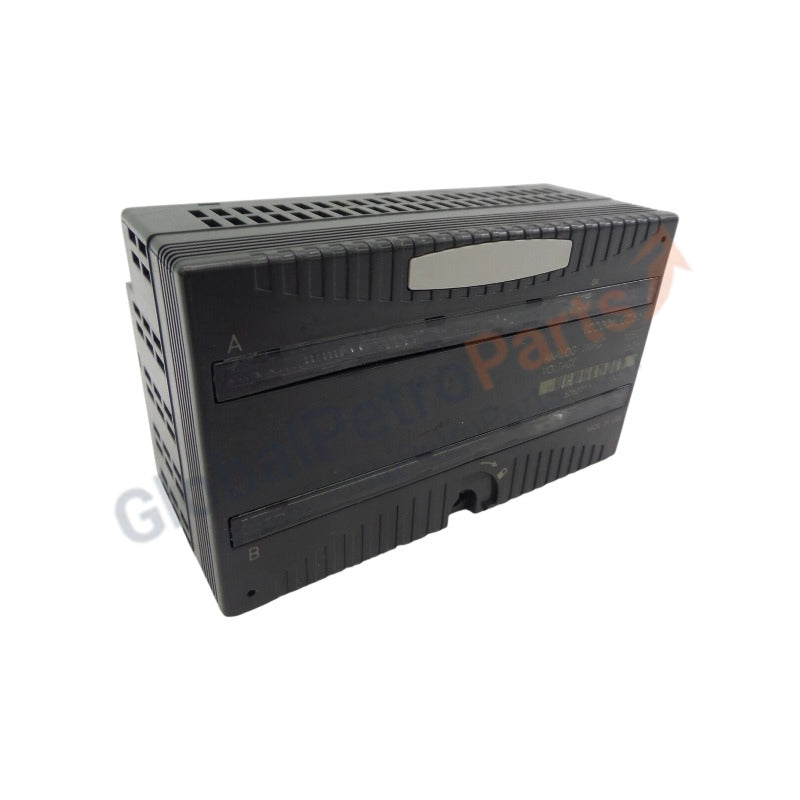

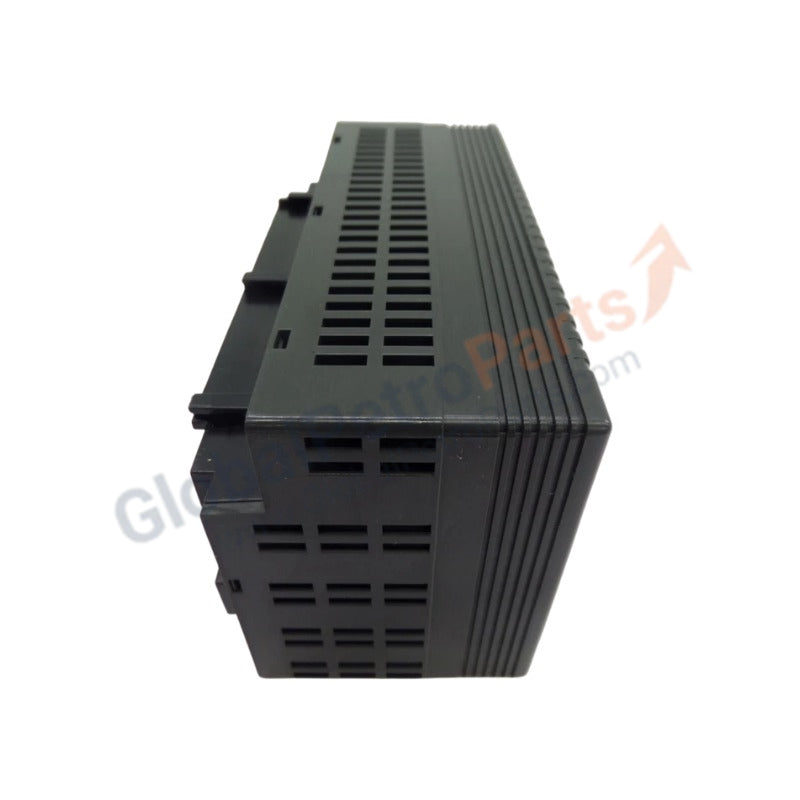

The GE IC200ALG263, also cataloged as the IC200ALG263 Analog Input Module, operates as a dedicated hardware component for continuous analog-to-digital signal conversion within VersaMax I/O station configurations.

Hardware Specifications

Backplane Bus Communication Velocity and Determinism

The hardware interfaces with the central processing unit through the integrated backplane bus network, maintaining deterministic I/O density scaling during high-frequency scan sweeps. The internal firmware flash compatibility ensures synchronized parameter calibration and continuous diagnostic data routing across remote interface nodes. Data register mapping aligns directly with the VersaMax carrier backplane serial protocol, utilizing dedicated control loops to process analog variables while suppressing transient field-side impedance variations.

Frequently Asked Questions

Q: Does the module require an external 24 VDC power supply for loop operation?

A: No, the module derives its internal logic power entirely from the 5 VDC VersaMax backplane bus, drawing a maximum of 120 mA. Field loops must be powered via an external power distribution terminal block.

Q: How does the module react if an open circuit loop fault occurs?

A: When configured for the 4-20 mA range, the module registers an open circuit loop fault when the input current falls below 2.0 mA. The specific channel status bit changes to 1, and the returned data word registers a low-scale fault value.

Q: Is hot-swapping supported for this hardware?

A: Hot-swapping is permitted only when using an identical module on a powered VersaMax carrier frame that explicitly supports this execution. The field-side I/O signals must be isolated before physical removal to avoid backplane voltage corruption.

Field Installation Guidelines

• Mounting Matrix: Install the module onto a compatible VersaMax I/O carrier fixed to a standard 35 mm DIN-rail. Ensure the carrier grounding spring maintains direct, unpainted metal-to-metal contact with the DIN-rail surface.
• Shield Grounding Framework: Route all 4-20 mA analog input cables using twisted-pair shielded instrumentation wiring. Terminate the cable shields exclusively at the carrier auxiliary ground strip or field-side common ground point to prevent ground loops.
• Wiring Separation: Isolate signal loops from high-voltage AC mains lines or heavy motor drive cables within the enclosure ducting to prevent electromagnetic coupling and high-frequency noise insertion.
