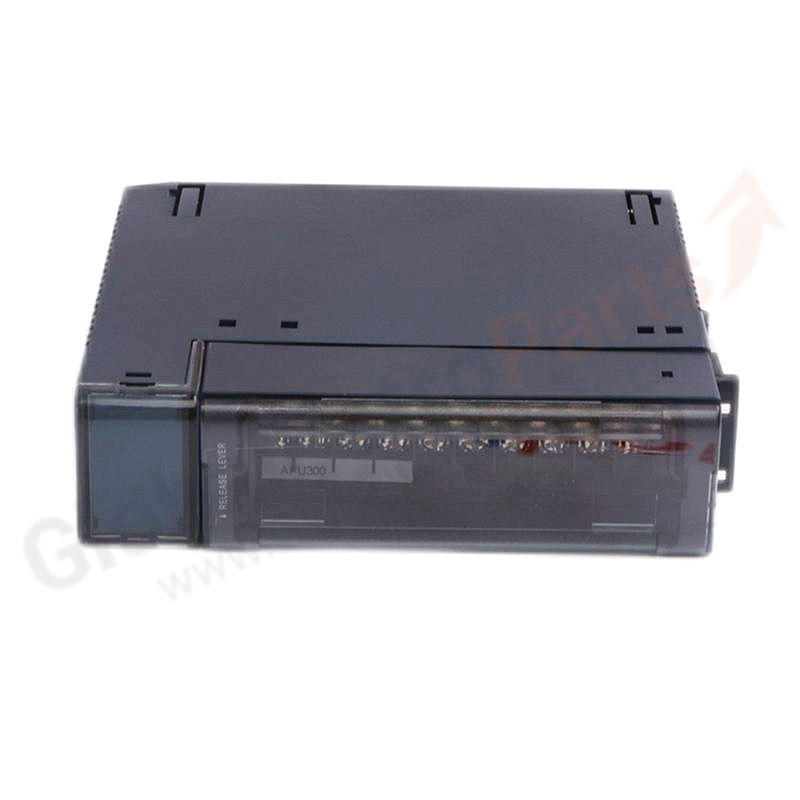

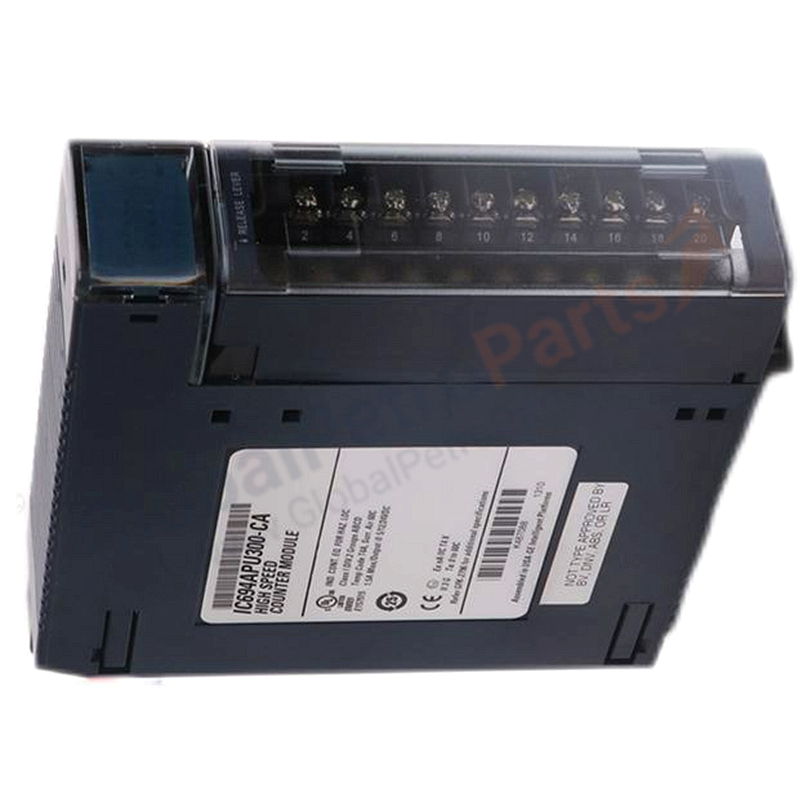

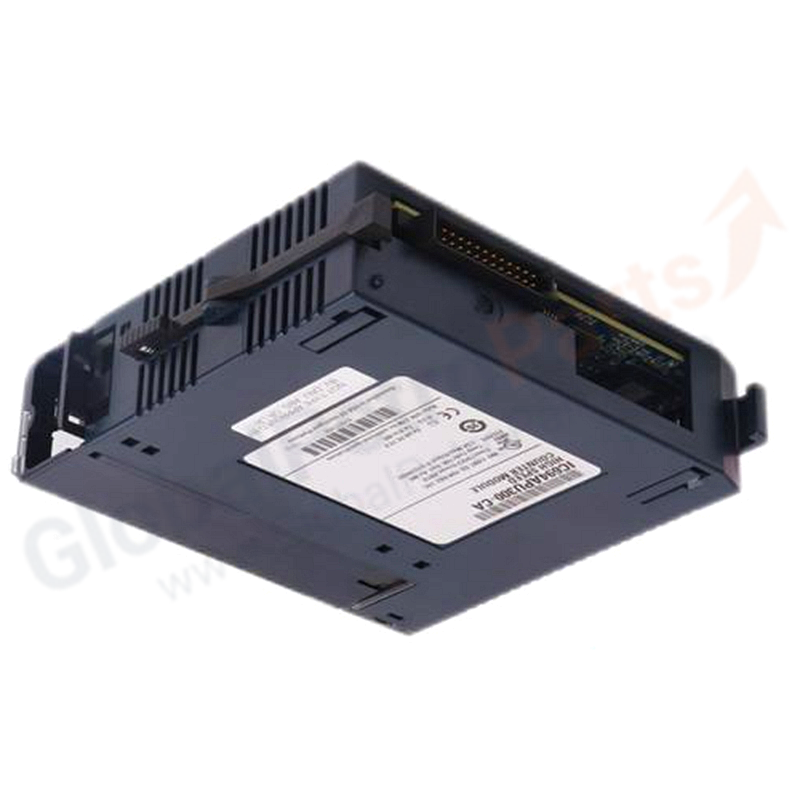

General Electric IC694APU300 High Speed Counter Module

Product Overview

The GE IC694APU300 is a High-Speed Counter Module for the Emerson PACSystems RX3i programmable automation controller platform. It provides high-speed pulse counting capabilities for industrial applications requiring precise motion control and rapid signal processing.

Key Specifications

• Model Number: IC694APU300
• Series: PACSystems RX3i
• Product Type: High-Speed Counter Module
• Frequency: 200 kHz standard; enhanced mode up to 1 MHz
• Internal Oscillator: 2 MHz
• Counter Types: A, B, and C type counters

Core Features

• High-speed pulse counting up to 1 MHz in enhanced mode
• Multiple counter types (A, B, C) for flexible configuration
• 2 MHz internal oscillator for precise timing
• Compatible with RX3i universal backplane

Applications

• Motion control and encoder feedback
• Turbine flow metering
• High-speed event counting
• Velocity measurement

Selection Tips

• For newer high-speed counter applications, consider IC695HSC308 (1.5 MHz, 8 channels).
• Verify compatibility with RX3i CPU firmware version.
• Contact Emerson for official datasheet with complete electrical ratings.
