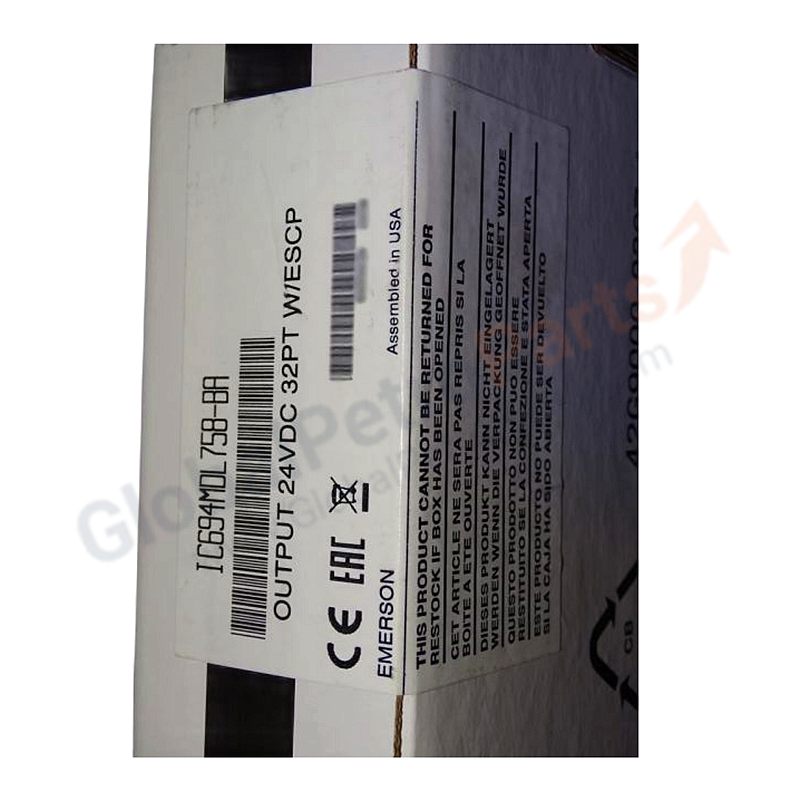

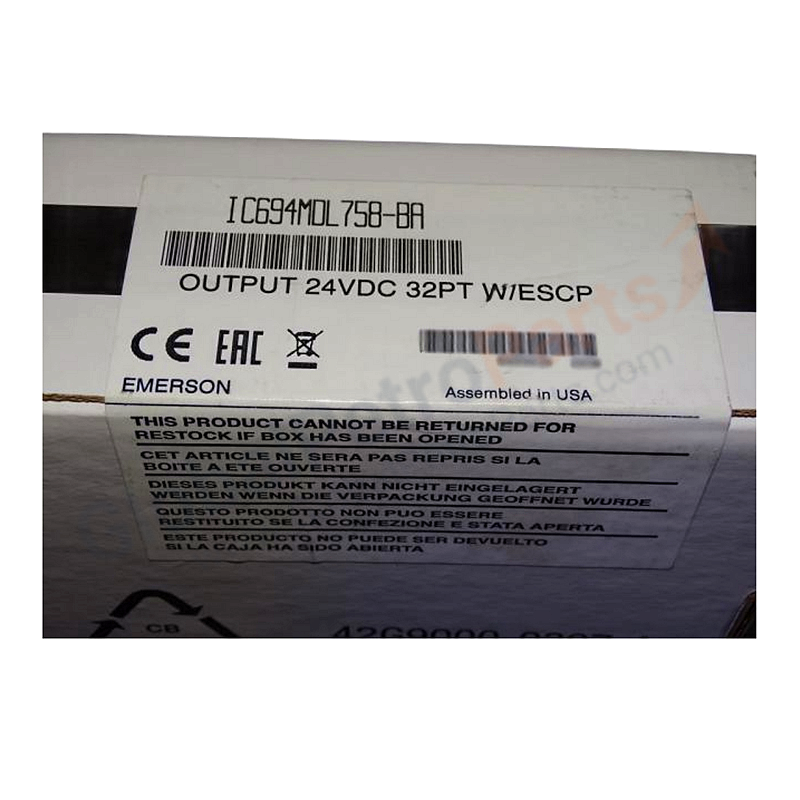

General Electric IC694MDL758 Pacsystems Rx3i Output Module

Product Overview

The GE IC694MDL758 is a 32-Channel Discrete Output Module for the Emerson PACSystems RX3i programmable automation controller platform. It provides 12/24 VDC solid-state outputs at 0.5 Amperes per point, organized in 2 groups with point-to-point isolation for reliable industrial control.

Key Specifications

• Model Number: IC694MDL758
• Series: PACSystems RX3i
• Product Type: Discrete Output Module
• Operating Voltage: 12/24 Volts DC
• Switching Current: 0.5 Amps per point
• Max Inrush Rating: 5.4 Amps
• I/O Capacity: 32 Discrete Outputs
• Number of Groups: 2
• Max Response Time: 0.5 Milliseconds
• Max Backplane Draw: 250 Milliamps
• Point-to-Point Isolation: Yes
• LED Indicators: 32 (1 LED per output)
• Operating Temperature: 0°C to 60°C

Core Features

• High-density 32-channel output for maximum I/O capacity
• Point-to-point isolation protects against ground faults
• Fast 0.5ms response time for time-critical applications
• High inrush current handling (5.4A) for inductive loads
• Individual LED indicators for each output channel

Applications

• High-density DC solenoid control
• LED indicator and signaling panel control
• Valve manifold control
• Discrete device actuation in process automation

FAQ

Q: Is each output channel isolated from the others?
A: Yes, the IC694MDL758 features point-to-point isolation between all 32 output channels.

Q: What is the maximum inrush current?
A: The maximum inrush rating is 5.4 Amps per channel.

Selection Tips

• For 16-channel DC output, consider IC694MDL740 or IC694MDL741.
• For 32-channel DC output with 0.75A, consider IC694MDL754.
• Verify load current requirements do not exceed 0.5A per point.
