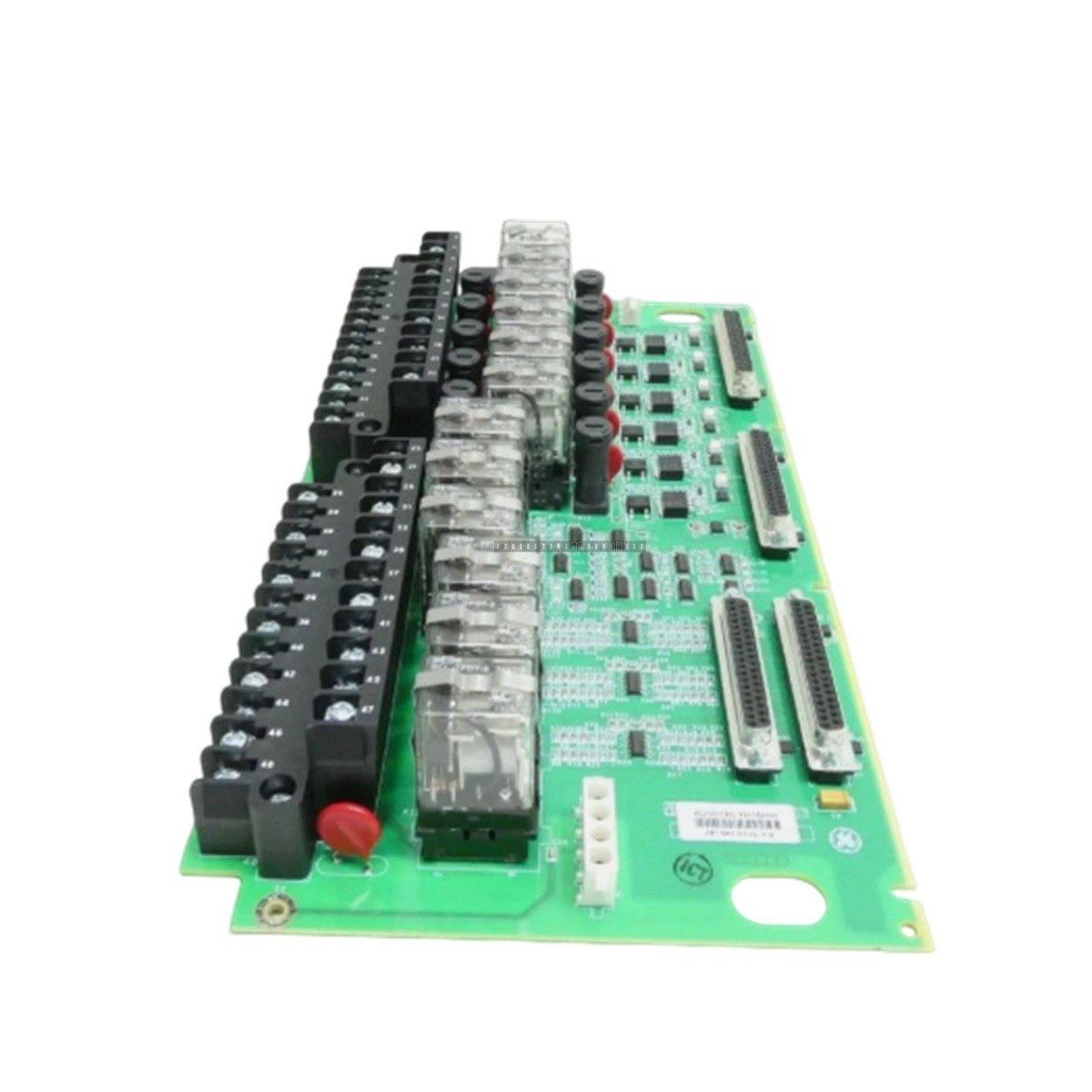

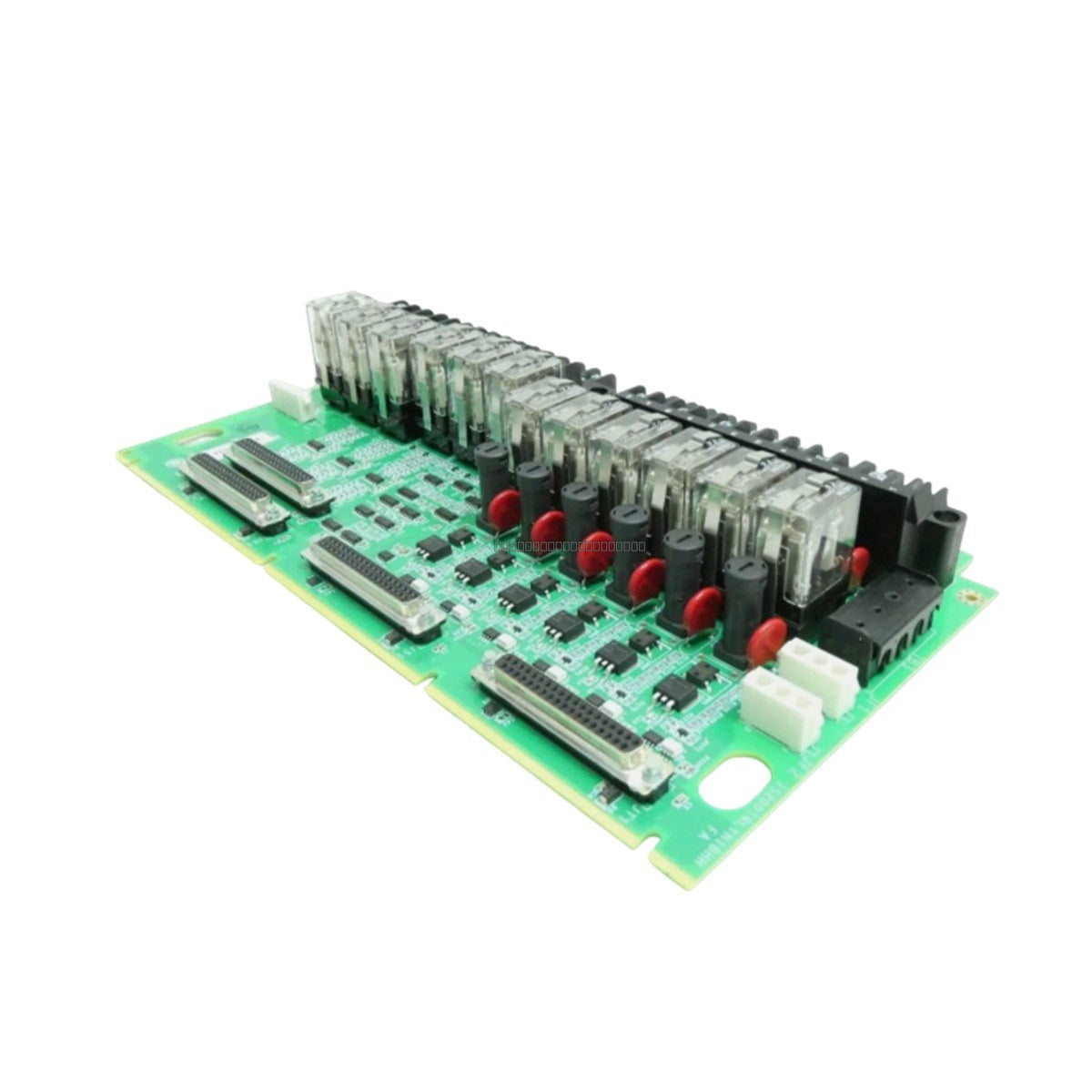

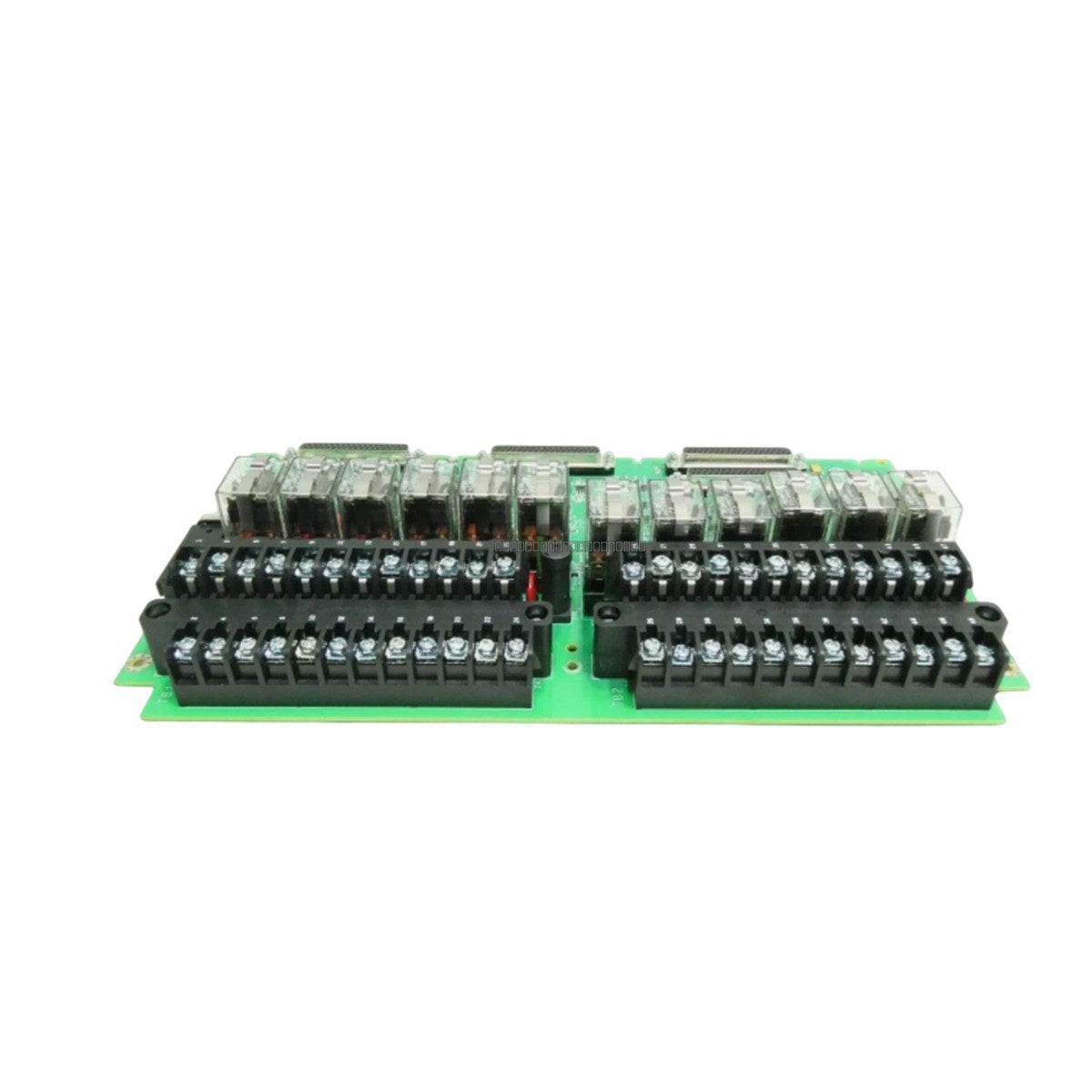

General Electric IS200TRLYH1B Mark VIe Relay Output Terminal Board

Description

The General Electric IS200TRLYH1B is a Relay Output Terminal Board designed for the Mark VIe control system. This component serves as a critical interface for managing high-current relay outputs within industrial automation environments. As a terminal board, it facilitates the connection between the control system and external field devices, ensuring reliable switching and signal distribution.

Features

• Designed for integration with the GE Mark VIe control platform.
• Provides robust relay output capabilities for field device control.
• Engineered for industrial reliability and signal integrity.
• Supports standard relay switching operations for process control applications.

Applications

This terminal board is typically utilized in power generation, oil and gas, and heavy industrial control systems where the Mark VIe architecture is deployed. It is primarily used to interface control signals with external actuators, contactors, or alarm systems that require relay-based switching.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices to avoid damaging sensitive electronic components.
• Verify that all field wiring is securely terminated and routed according to local electrical codes and system documentation.
• Ensure adequate ventilation in the cabinet to maintain operating temperatures within specified limits.
• Check for proper grounding of the terminal board chassis to mitigate EMI/RFI interference.

FAQ

Is the IS200TRLYH1B still in production?
No, this model has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.

What system is this board compatible with?
The IS200TRLYH1B is specifically designed for the General Electric Mark VIe control system series.
