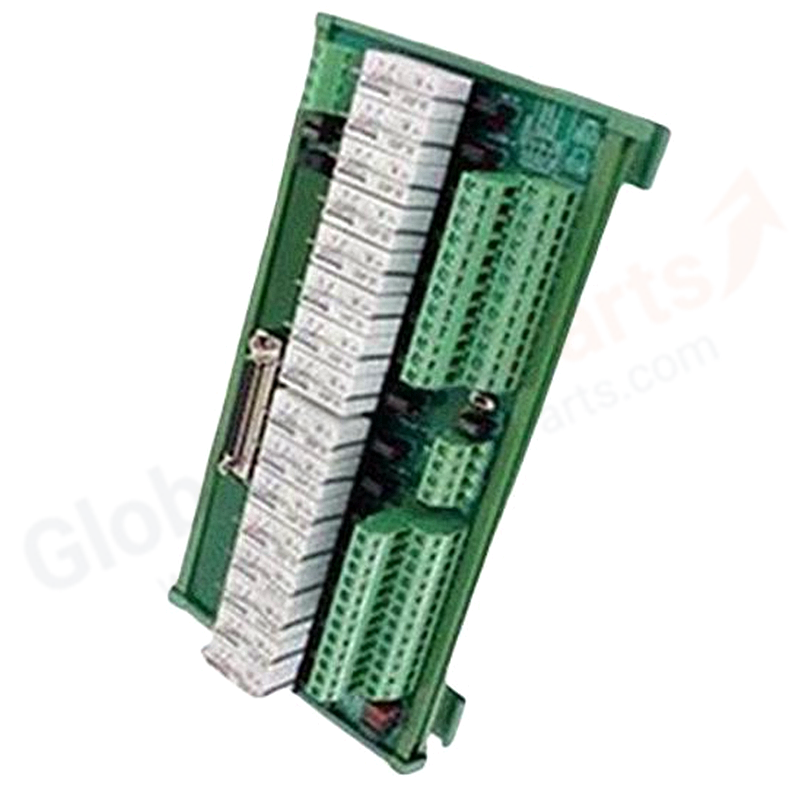

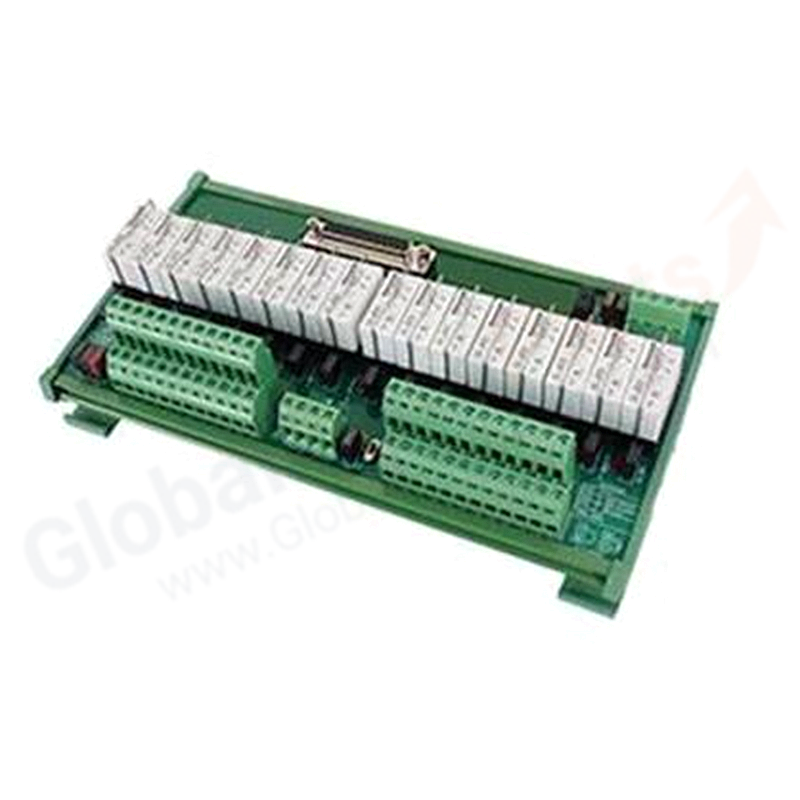

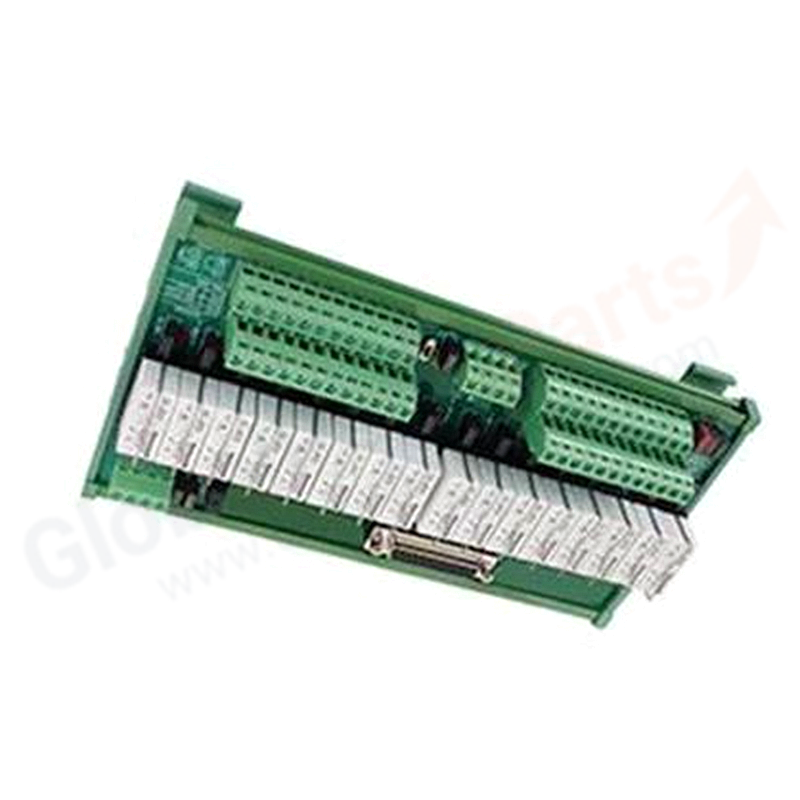

Honeywell FS-16DI-RL Relay Input Terminal Board

Product Overview

The Honeywell FS-16DI-RL is a 16-channel digital input module designed for Honeywell Safety Manager systems. It provides reliable acquisition of discrete signals from field devices in safety-critical industrial applications. With low-power consumption design and wide voltage tolerance, this module ensures accurate status monitoring for emergency shutdown systems, process interlocks, and safety instrumented systems.

Key Features

• 16 Digital Input Channels: High-density discrete signal acquisition
• Wide Voltage Range: 10–30 VDC input tolerance for flexible field device compatibility
• Low Power Consumption: Energy-efficient design reduces system power requirements
• Opto-Isolated Inputs: Electrical isolation protects internal circuitry from field transients
• Status LEDs: Per-channel indication for quick diagnostics
• Compact Design: Standard 4TE module width for efficient chassis utilization

Technical Specifications

• Model: FS-16DI-RL
• Type: 16-Channel Digital Input Module
• Input Type: Digital, discrete signals
• Number of Channels: 16 inputs
• Voltage Range: 10–30 VDC
• Input Current: Low-power consumption design
• Isolation: Opto-isolated per channel
• Module Width: 4 TE (20.32 mm / 0.8 in)
• Operating Temperature: -40°C to +70°C

Installation Guide

1. Chassis Insertion: Slide module into designated slot until flush with chassis front
2. Flat Cable Connection: Connect horizontal IO bus flat cable to module front connector
3. Field Termination: Use compatible FTA (e.g., FC-TSDI-1624) for field wiring interface
4. Address Assignment: Module address determined by slot position—no jumpers or switches needed
5. Hot-Swap: Module can be replaced with power on; verify process impact before removal

FAQ

Q: Does this module require an FTA?
A: Yes. The FS-16DI-RL is the I/O module installed in the chassis. Field wiring connects via a compatible Field Termination Assembly (FTA) such as FC-TSDI-1624.

Q: Can inputs from different voltage sources be mixed?
A: All 16 channels share common configuration. Verify field device voltage compatibility before installation.

Q: What is the replacement procedure?
A: Disconnect flat cable, loosen screws, slide out old module, insert new module, reconnect flat cable. Address is automatic based on slot position.

Selection Tips

• Verify voltage compatibility with field devices (10–30 VDC range)
• Pair with appropriate FTA based on wiring requirements (screw terminals, wire gauge)
• For SIL-rated applications, ensure complete safety loop calculation includes this module
