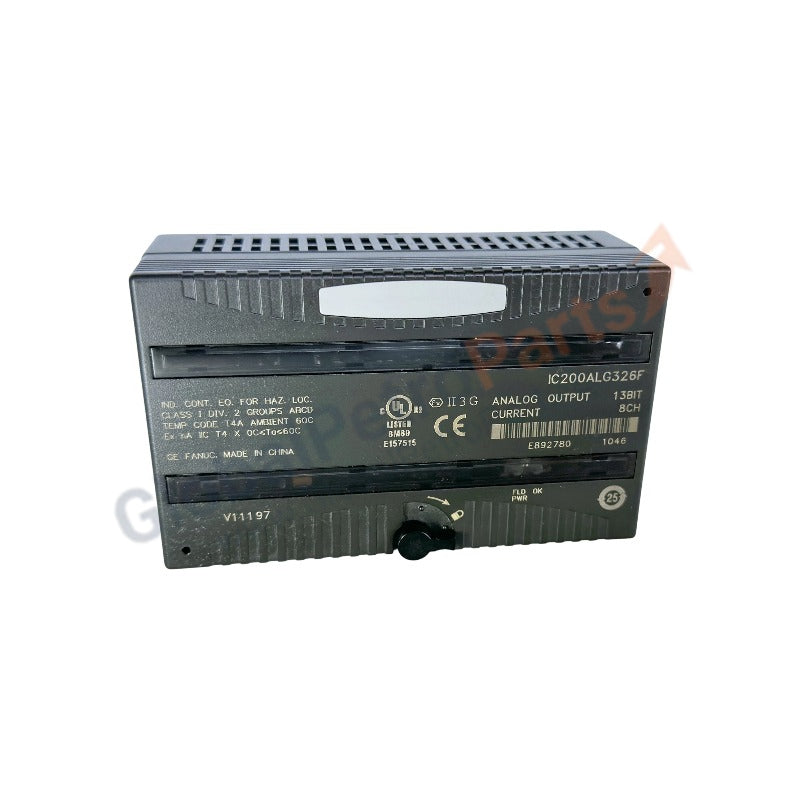

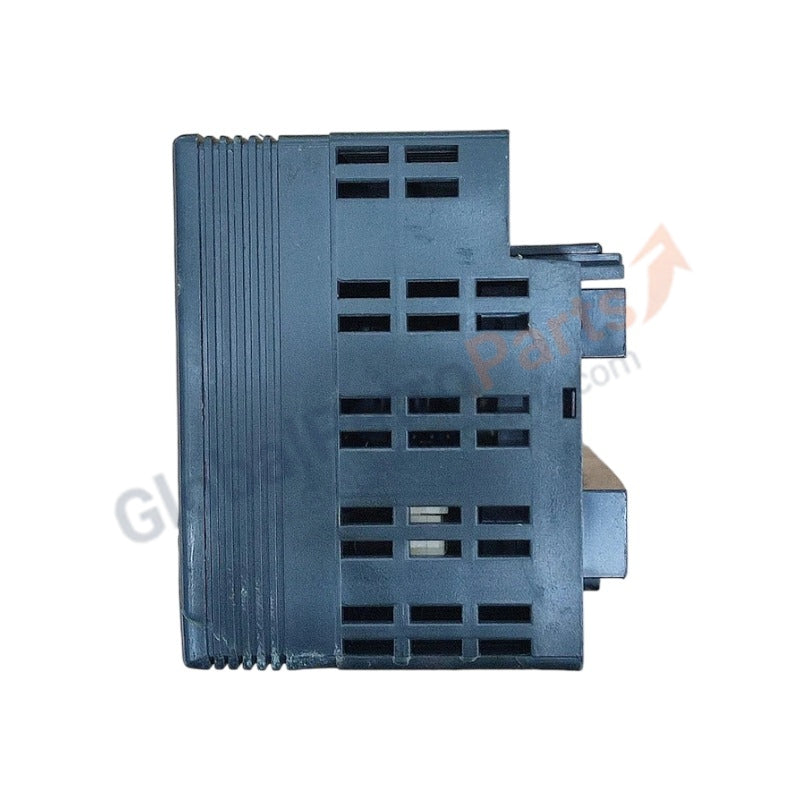

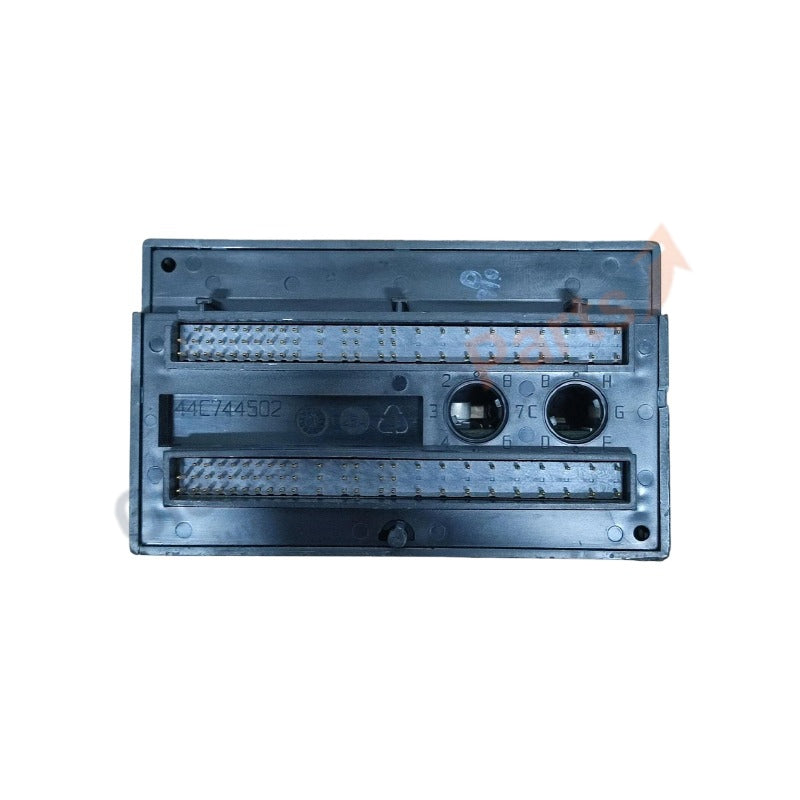

IC200ALG326 Analog Output Modules GE VersaMax

The GE IC200ALG326, also cataloged as the IC200ALG326 Analog Output Module, operates as a dedicated hardware component for multi-channel current signal generation within VersaMax I/O station platforms. The module interfaces with the station backplane to convert digital data frames into isolated analog current loops across field instruments. It regulates external loop actuators by driving continuous 4-20 mA control pathways derived directly from cyclic processor register updates.

Hardware Specifications

I/O Density Scaling

The module supports local I/O density scaling transitions by accommodating 8 high-resolution current loops on a uniform physical carrier footprint. Integrated logic blocks communicate over the local bus plane without causing capacitive cross-talk or thermal overloading between adjacent hardware channels. Maintained firmware flash compatibility within the VersaMax controller family coordinates deterministic signal update scheduling, suppressing execution latencies during multi-point synchronous scanning sequences.

Frequently Asked Questions

Q: Does the IC200ALG326 module support extraction or live replacement when the base rack is energized?

A: No, hot-swapping the hardware while backplane power is actively supplied is prohibited. The input lines must be isolated before insertion or extraction to prevent signal line damage or module communication errors.

Q: How does the hardware indicate a loss of the external 24 VDC field excitation supply?

A: A missing or degraded field supply drops the module into an active fault profile, reporting a diagnostic message word to the CPU while the localized LED matrix alters state.

Q: What is the behavior of the current output channels upon a localized loss of backplane logic power?

A: If backplane logic power is interrupted, the output channels default to 0 mA or assume their low-scale fail-safe positions immediately.

Field Installation Guidelines

Mount the unit vertically onto a leveled 35 mm DIN-rail base utilizing the compatible VersaMax terminal carrier frame. Retain a minimum open clearance footprint of 50 mm above and below the module ventilation openings to secure proper convective thermal heat sink dissipation. Route all 4-20 mA current signaling lines using dedicated twisted, shielded instrumentation pairs isolated from high-voltage motor or distribution conductors. Secure the field cable shield drains to a single-point panel ground bar to maintain signal resolution and isolate the loops from common-mode electrical noise.
