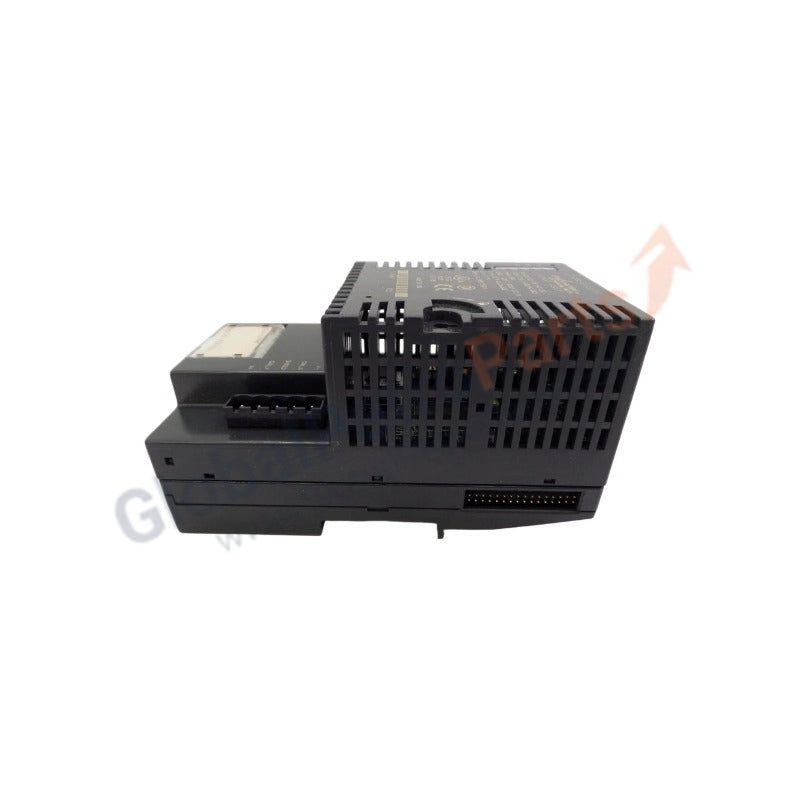

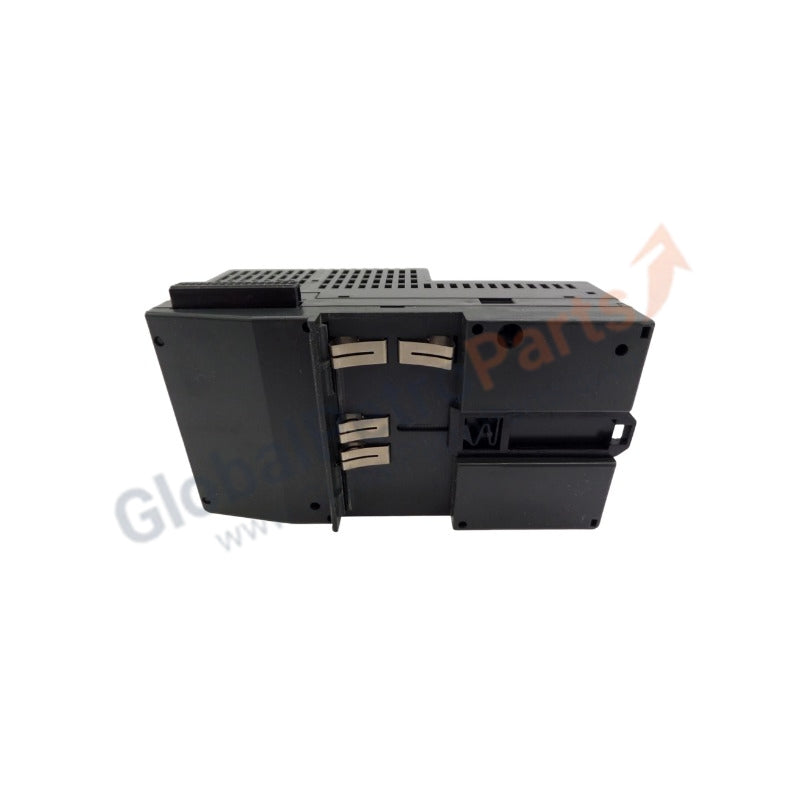

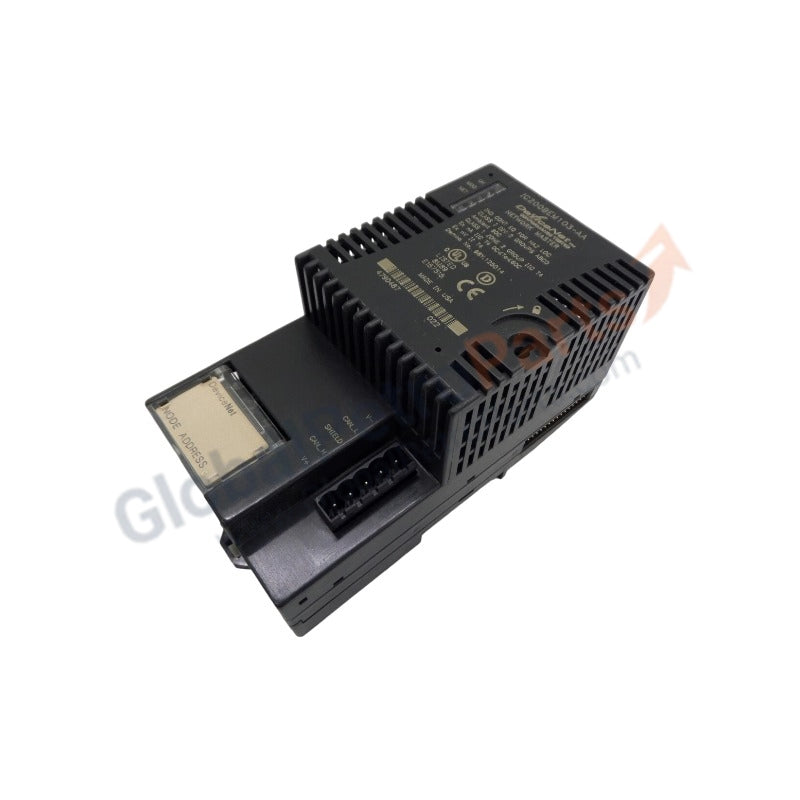

IC200BEM103 Communication Modules GE VersaMax

The GE IC200BEM103 serves as the primary IC200BEM103 Network Slave Module utilized to execute cyclic I/O data exchange tasks across Profibus-DP network platforms. The module establishes direct high-speed serial data communication between a master controller and a peripheral VersaMax distributed I/O station, transferring input and output data packets via predefined memory mapping registers.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

This serial network module fits into a dedicated expansion slot of a network interface unit or receiver carrier to manage local station processing loads without reducing the main system backplane bus communication velocity. The hardware facilitates flexible I/O density scaling by bridging up to 64 local discrete or analog expansion modules to the overarching automation bus architecture. While configuring the localized serial drops, target assignments remain bound to internal software structures that match the master node settings, relying on firmware flash compatibility parameters within the rack controller to govern diagnostic alarm reporting over deterministic multi-vendor network segments.

Frequently Asked Questions

Q: Does the physical design of the IC200BEM103 permit hot-swap module extraction under network load?

A: No. The communication bus interface pins are not isolated from active processing traces. Disconnecting the module from its backplane rail assembly while energized will break data routing pathways, drop downstream station lines, and cause a master processor fault condition.

Q: How is the physical station network address assigned for this slave block?

A: The slave node address is configured via standard diagnostic software configuration tools or defined by the master setup files, rather than relying on mechanical rotary dip switches located on the front module molding.

Q: What action does the slave module execute if the physical Profibus serial cable connection breaks?

A: Upon identifying a network communication loss, the onboard processor turns on the red Network Fault LED indicator and sets all mapped local discrete and analog output circuits to their configured hold last state or default safe values.

Field Installation Guidelines

• Network Connector Attachment: Secure the standard 9-pin D-sub network connector onto the front faceplate interface. Tighten the dual locking screws securely to prevent mechanical vibration from altering line resistance.
• Bus Termination Maintenance: If this specific station sits at either end of the physical copper network line, the installer must toggle the termination resistor switch on the cable connector plug to the "ON" position.
• Chassis Ground Trace Protocol: Verify that the carrier bracket makes direct bare-metal connection contact with the unpainted surface of the 35 mm DIN rail to provide a true drain path for electromagnetic interference.
• Conduit Field Separation: Separate the purple Profibus communication cables from internal high-voltage AC electrical lines by at least 10 cm within all cable ducts to avoid signal distortion from cross-talk.
