IC200CHS003 Base Plates GE VersaMax

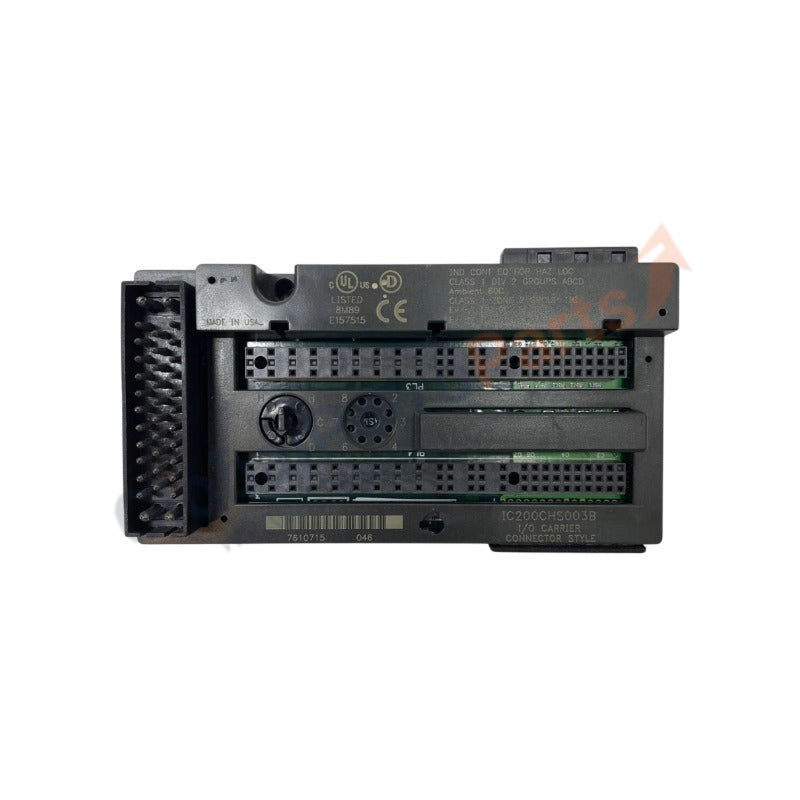

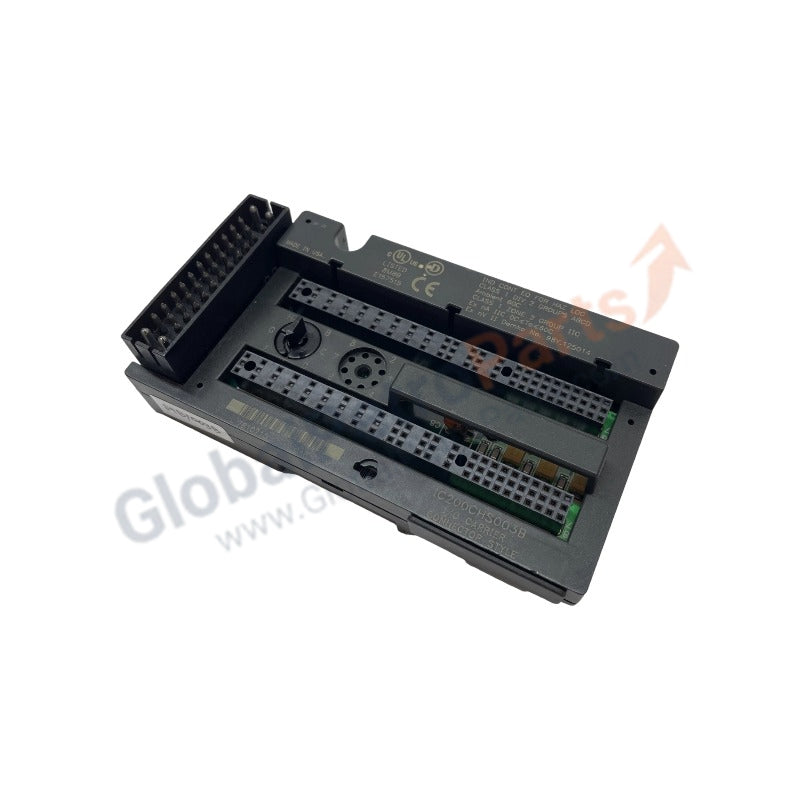

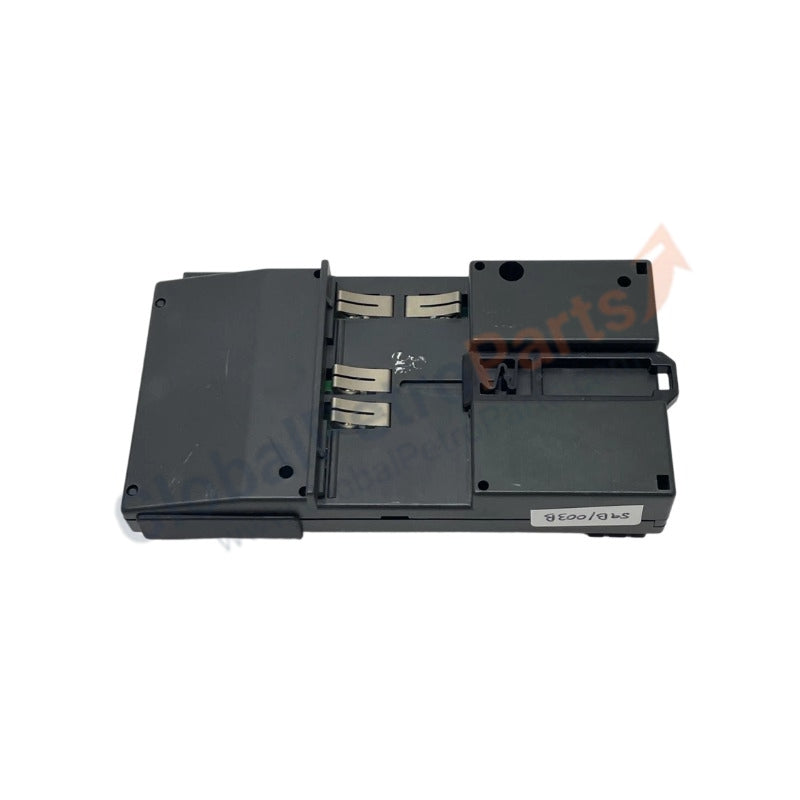

The GE IC200CHS003 serves as the primary IC200CHS003 I/O Carrier utilized to execute mechanical mounting and electrical terminal routing across VersaMax I/O station platforms.

Hardware Specifications

Backplane Bus Communication Velocity and I/O Density Scaling

The passive backplane block establishes parallel trace connectors that route external field signals directly to peripheral cards while preserving backplane bus communication velocity across adjacent modules. The physical housing infrastructure structures explicit I/O density scaling configuration parameters, interlocking separate modules into unified field drops. This architecture handles direct data interface pathways and continuous tracking loops without inserting digital degradation or requiring localized firmware flash compatibility upgrades.

Frequently Asked Questions

Q: Does this hardware base support hot-swapping sequences for connected electronics?

A: The passive carrier itself contains the physical interlocking connector tracks that support the hot-swap function of VersaMax I/O modules. However, the specific peripheral card mounted to this carrier must explicitly support hot-plug configurations before unseating it under power.

Q: What are the torque limits and physical wire limitations for the terminal block screws?

A: The box-style screw terminals accept solid or stranded copper wires ranging from 26 to 14 AWG. All terminal screws require a uniform tightening torque specification limit of 0.5 Nm to prevent thread damage and maintain stable electrical termination loops.

Q: Does the carrier structure draw current from the local power module supply?

A: No. The carrier contains no active electronic microprocessors or silicon logic gates. It acts entirely as a passive backplane extension and structural wiring interface board, drawing zero current from the 5 VDC or 24 VDC system buses.

Field Installation Guidelines

• DIN-Rail Attachment Procedures: Mount the carrier structure vertically onto a standard 35 mm DIN-rail. Ensure the rear spring-loaded metallic grounding clip locks fully onto the rail surface to secure a low-impedance earthing path from the module frame to the cabinet ground.
• Shield Grounding Framework: Terminate all input/output instrumentation shields at an isolated ground bus bar located near the base of the enclosure layout. Do not use individual carrier terminal points for high-frequency shielding grounds to prevent ground loop noise insertion.
• Wiring Separation Matrix: Route all field signal wires entering the terminal strip through low-voltage duct paths. Maintain a physical distance separation boundary of at least 100 mm from high-voltage AC mains wiring or variable frequency motor drive lines within the panel enclosure.
