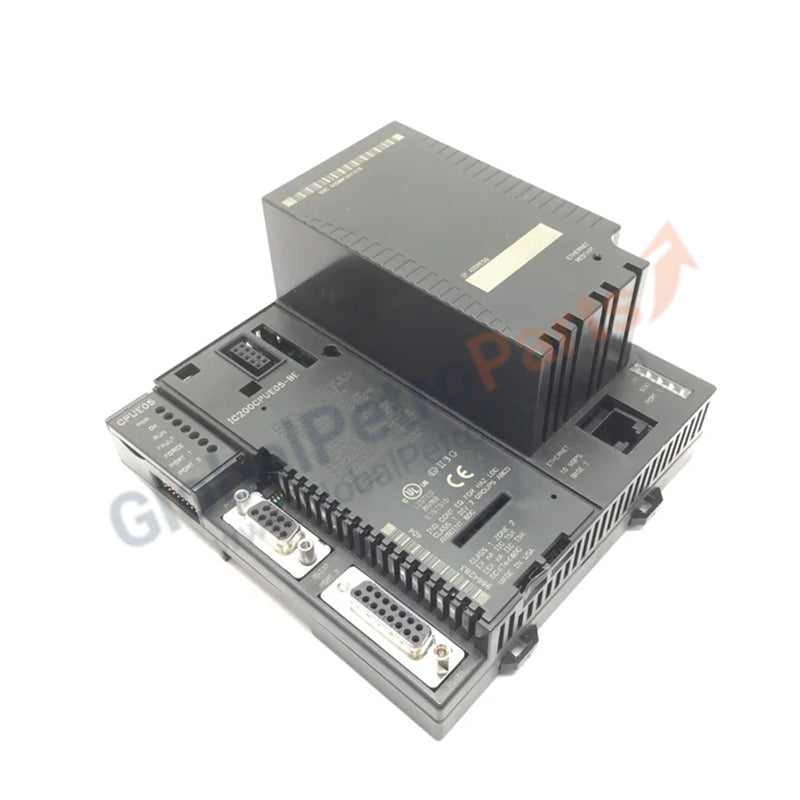

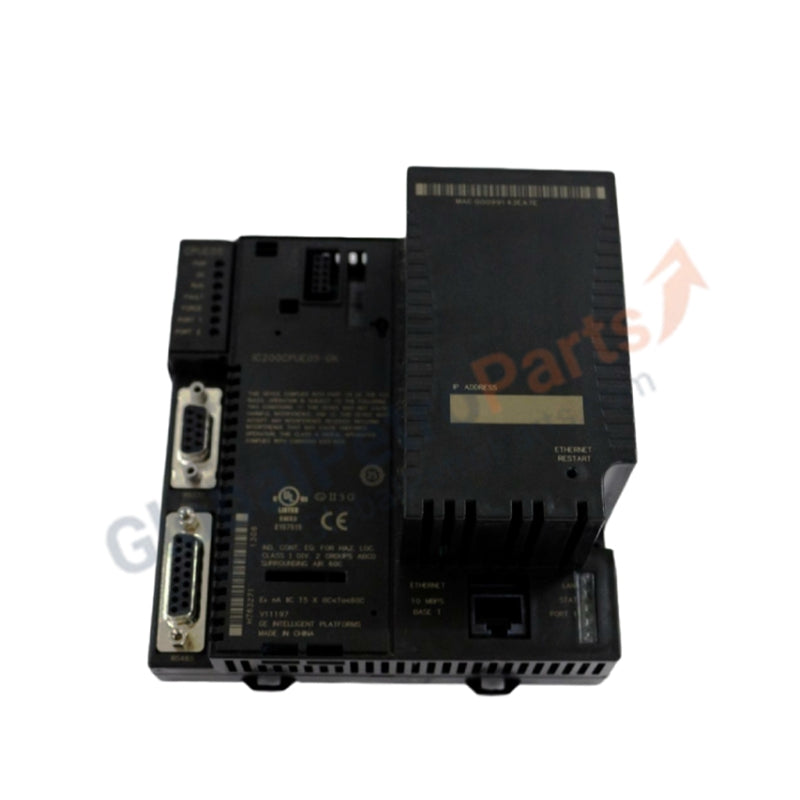

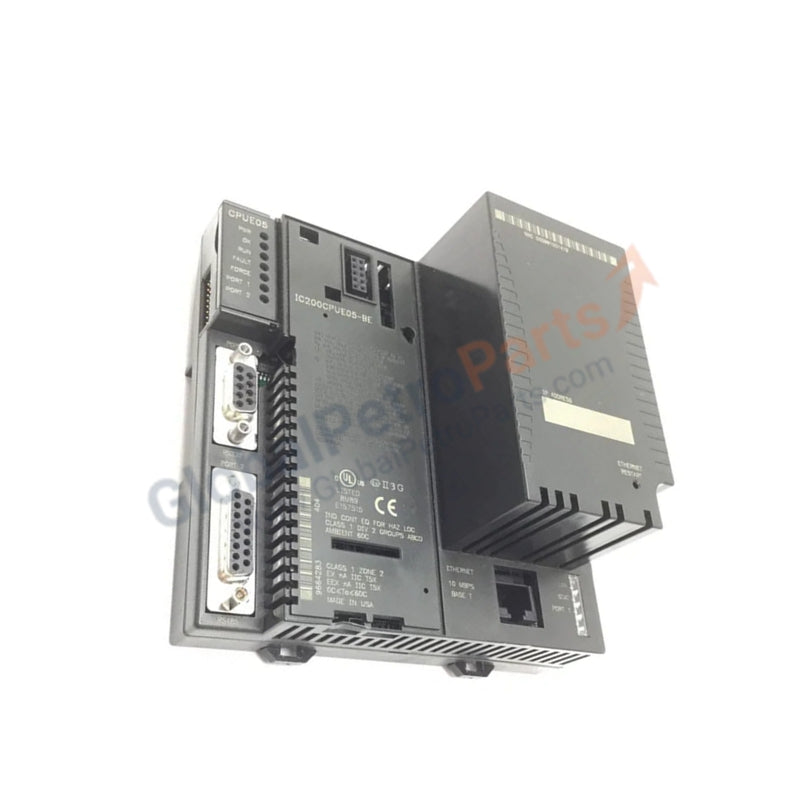

IC200CPUE05 | GE Fanuc VersaMax CPU Module with Embedded Ethernet Interface

Product Description

The GE Fanuc VersaMax IC200CPUE05 is a high-performance CPU module equipped with an embedded Ethernet interface, designed for advanced control and communication in VersaMax PLC systems. It supports large-scale I/O handling, fast logic execution, and multiple communication protocols, making it a versatile solution for industrial automation. With integrated Ethernet Global Data (EGD) capabilities, this CPU ensures efficient data exchange across distributed networks.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC200CPUE05

• Product Line: VersaMax

• Product Type: CPU Module

• Weight: 0.63 lbs (0.28 kg)

• Modules Supported: Up to 64

• I/O Points: 2048

• User Memory: 64 KB configurable

• Boolean Execution Speed: 0.8 ms per 1K logic operations

• Communication Ports:

• RS-232 (1 port)

• RS-485 (1 port)

• Ethernet (1 RJ45 port, 10 Mbps, full/half duplex)

• SRTP Server Connections: Up to 8 simultaneous connections

• EGD Configuration: 32 configurations supported

• EGD Exchange Limits: 100 data ranges per exchange, 1400 bytes per exchange

• Installation: DIN rail mounting, vertical or horizontal orientation

• Power Supply Voltage: 3.3 VDC

• Current Consumption: 650 mA

Application Scenarios

The IC200CPUE05 is ideal for distributed control systems requiring Ethernet-based communication. It is widely used in process automation, machine control, and industrial networking environments where high-speed execution and reliable data exchange are critical.

FAQ

Q: How much memory does the IC200CPUE05 provide?  A: 64 KB of configurable memory for programs, registers, and I/O data.

Q: What Ethernet capabilities are supported?  A: One RJ45 port at 10 Mbps, supporting EGD with up to 32 configurations and 1400 bytes per exchange.

Q: How many I/O points can this CPU handle?  A: Up to 2048 I/O points.
