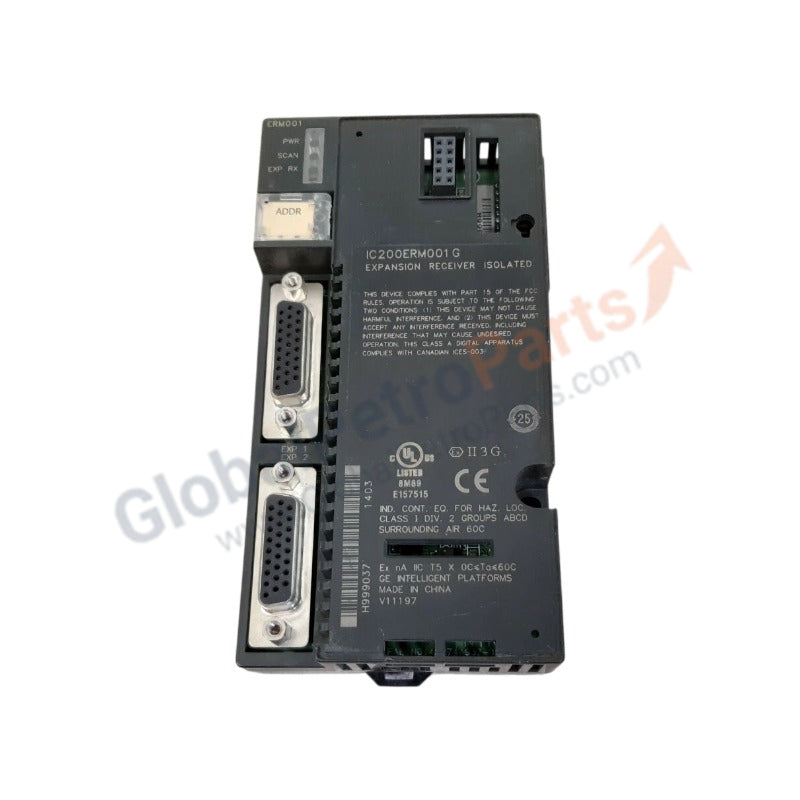

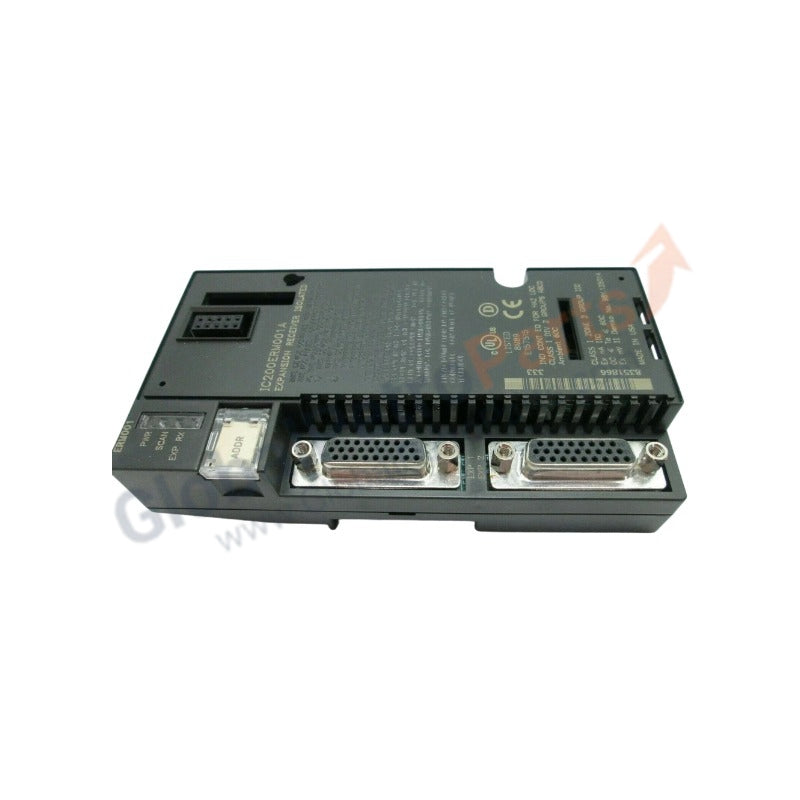

IC200ERM001 GE VersaMax Digital I/O Cards

The GE IC200ERM001 serves as the primary IC200ERM001 Expansion Receiver Module utilized to execute physical sub-rack link interfaces and remote I/O data reception across VersaMax Distributed I/O platforms. Configured for high-speed multi-rack bus extension, the component acts as a direct physical termination node that intercepts serial logic data from an expansion transmitter and interfaces it directly with the local carrier backplane rail.

Hardware Specifications

I/O Density Scaling and Deterministic Networks

This receiver unit fastens into the leftmost slot of an expansion chassis to maintain overall backplane bus communication velocity metrics across downstream modules. The dual-chassis layout expands physical I/O density scaling boundaries by allowing multiple input, output, or analog cards to populate peripheral slots while communicating back to a centralized controller connected over Profinet / EtherNet/IP deterministic networks. Internal transceiver registers operate without code dependencies, relying on automated hardware-level handshakes governed by core firmware flash compatibility parameters to pass cyclic scan vectors without protocol translation delays.

Frequently Asked Questions

Q: Does the physical serial link configuration of the IC200ERM001 support hot-swap insertion steps?

A: No. The multi-pin expansion bus cable maintains active logic paths linked directly to the processing units. Main sub-rack power must be completely turned off on both the transmitter and receiver racks before inserting or extracting the module to avoid communication logic faults or component degradation.

Q: How does the receiver module indicate a loss of serial frame synchronization with the master transmitter?

A: The front display bezel incorporates a dedicated physical LED indicator labeled "OK". If the expansion bus cable becomes unseated or experiences significant transmission attenuation, the LED goes out, and downstream I/O data updates cease.

Q: Is a separate external 24 VDC power connection required to energize the internal logic of this module?

A: No. The internal electronic components draw their required operating current directly from the 5 VDC logic bus supplied by the local power supply module attached to the expansion carrier rail.

Field Installation Guidelines

• Mechanical Slot Position Constraints: Install the receiver card strictly into the leftmost terminal slot of the slave expansion carrier. Press down vertically until the plastic locking pins fully grip the passive carrier frame.
• Cable Strain Relief Routing: Route the proprietary expansion interface cable through the internal enclosure wireways. Ensure the heavy-duty molded connector ends are screwed into place on the module face to eliminate stress on internal contacts.
• Grounding Connection Matrix: Connect the main DIN rail hosting the expansion sub-rack to the central enclosure earth grid via a heavy low-impedance copper strap to neutralize common-mode electrical noise.
• Conduit Proximity Limitations: Maintain a minimum physical separation distance of 10 cm between the low-voltage expansion interface cables and any high-power AC motor supply lines to block electromagnetic cross-talk.
