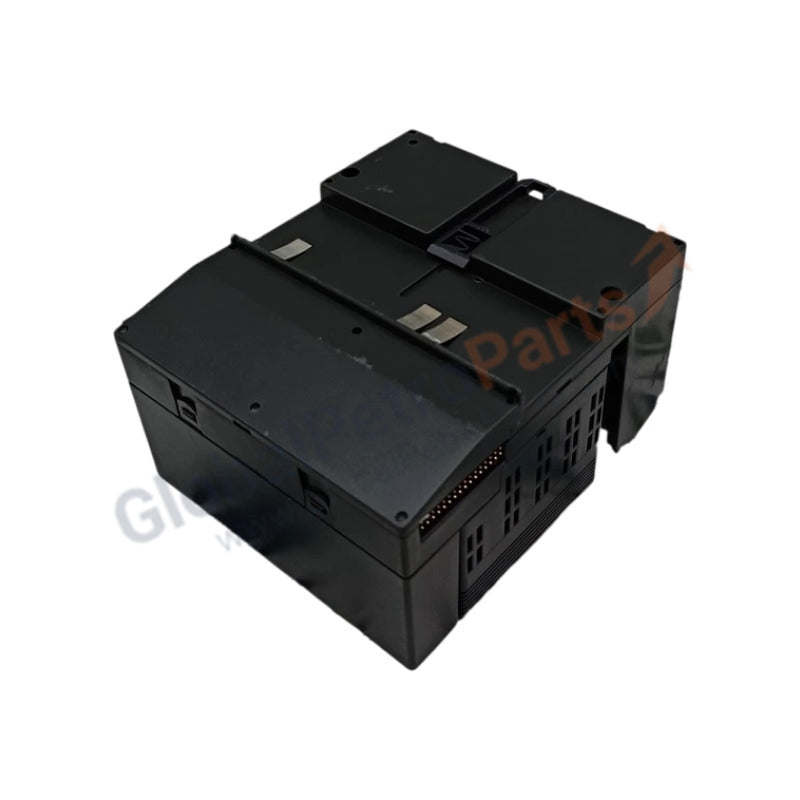

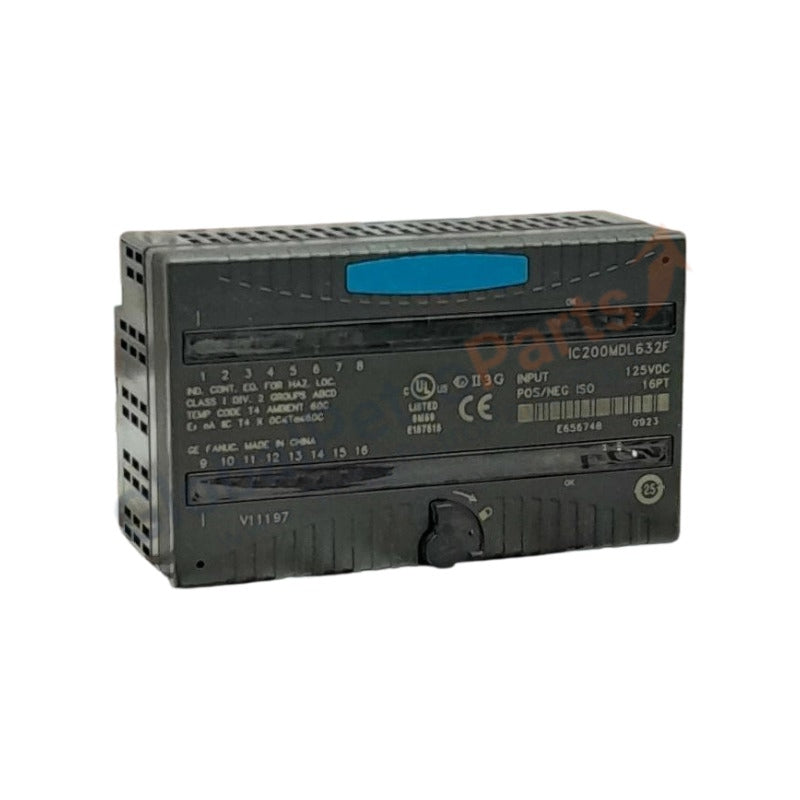

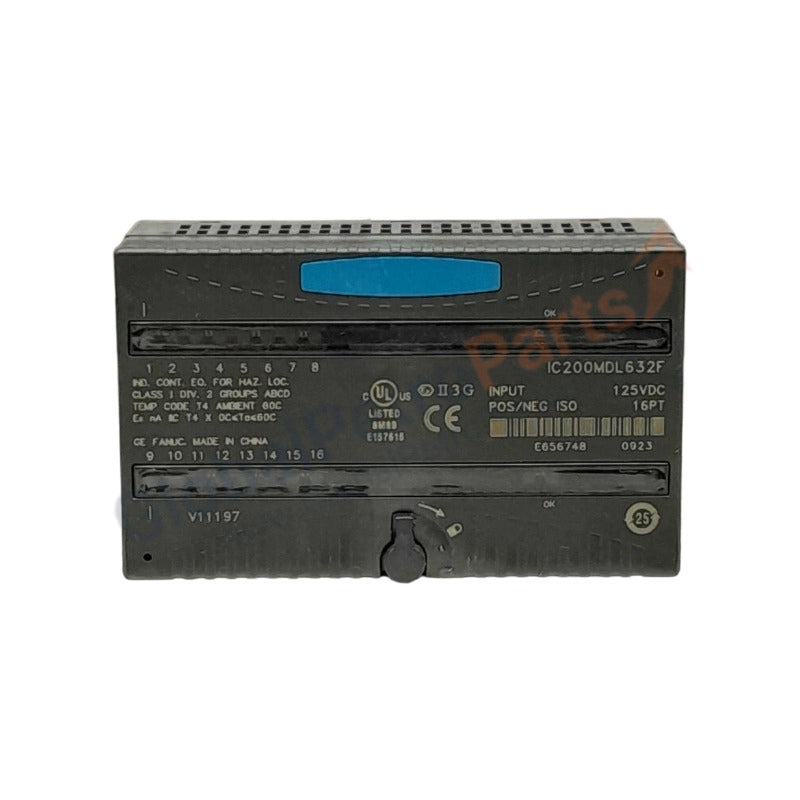

IC200MDL632 Digital I/O Cards GE VersaMax

The GE IC200MDL632 serves as the primary IC200MDL632 Discrete Input Module utilized to execute physical state tracking and optical signal isolation tasks across VersaMax Distributed I/O platforms. The module monitors discrete 125 VDC electrical loops from field contacts, converting high-voltage sensing thresholds into binary logic data blocks transmitted directly across the local sub-rack carrier backplane bus.

Hardware Specifications

I/O Density Scaling and Firmware Flash Compatibility

The architectural layout of this 125 VDC electronic block integrates onto passive terminal carriers to prevent latency variations or reductions in backplane bus communication velocity during dense multi-drop deployments. The physical channel layout allows structured I/O density scaling inside centralized control cabinets, routing binary transition matrices directly to network interface heads scanning over Profinet / EtherNet/IP deterministic networks. Channel telemetry remains synchronized via baseline configuration blocks matching the software architecture governed by standard firmware flash compatibility profiles embedded within the host processor slot.

Frequently Asked Questions

Q: Does the physical composition of the IC200MDL632 support hot-swap insertion limits while the host sub-rack is active?

A: Yes. The hardware framework permits real-time hot-swap module extraction and installation on an energized carrier bracket, provided that the high-voltage 125 VDC field excitation loops are completely isolated at the terminal block prior to component removal to avoid transient capacitive arcing.

Q: How does the internal optocoupler circuit distinguish between an intentional logic high transition and field leakage current?

A: The input electronics require an on-state threshold of at least 90 VDC and 2.0 mA. Any residual field leakage or cross-talk below 30 VDC or 0.5 mA is suppressed by internal filtering, preventing false state execution within the logic processor.

Q: Is individual channel-to-channel isolation supported on this hardware configuration?

A: No. The 8 input channels are organized within a single-group electrical architecture sharing a single common return line terminal. All external field sensing circuits routed to this module must reference a common electrical potential to eliminate short circuits.

Field Installation Guidelines

• Mechanical Bracket Engagement: Align the module housing tracks directly onto the matching slots of the passive carrier unit. Apply steady vertical pressure until both side plastic locking ears snap fully into a flush position.
• Conductor Wire Metric Constraints: Strip the outer insulation coating of all high-voltage sensing copper wires back by exactly 6 mm before inserting them into the terminal block cage clamps.
• Terminal Screw Fastening Torque: Secure all field wiring terminations using a calibrated torque tool adjusted to a precise limit of 0.5 Nm to prevent high resistance loops.
• High-Voltage Conduit Separation: Route all 125 VDC input paths inside separate enclosure wireways isolated by at least 10 cm from low-voltage data cables and communication ribbons to eliminate electromagnetic interference.
