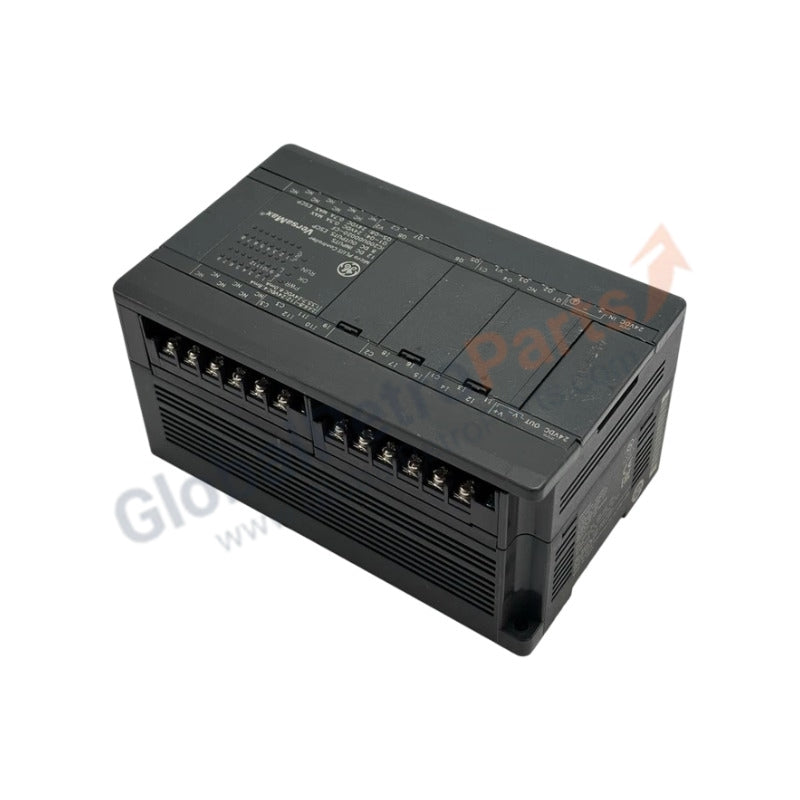

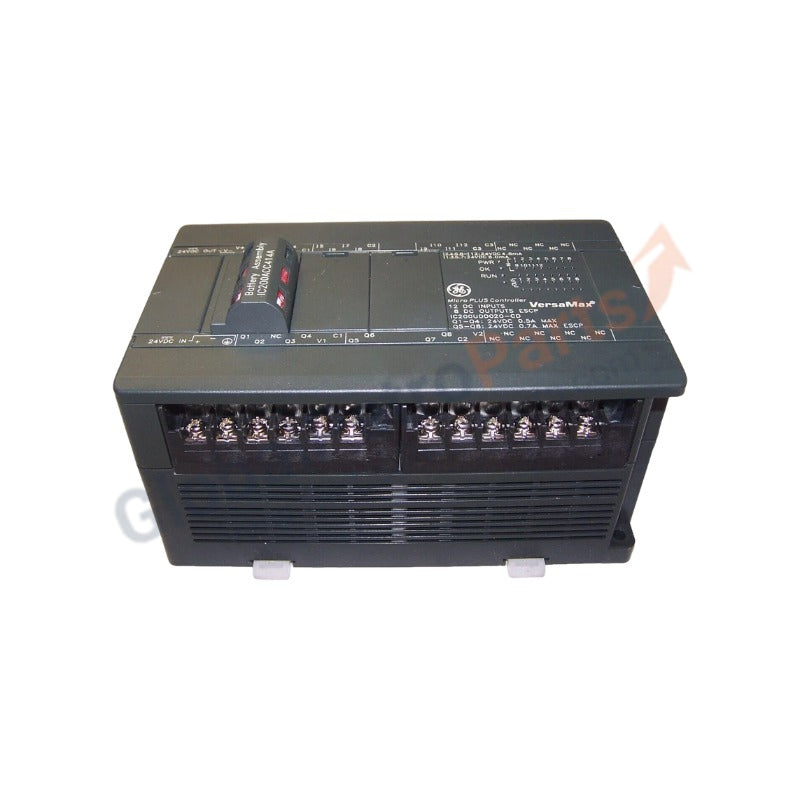

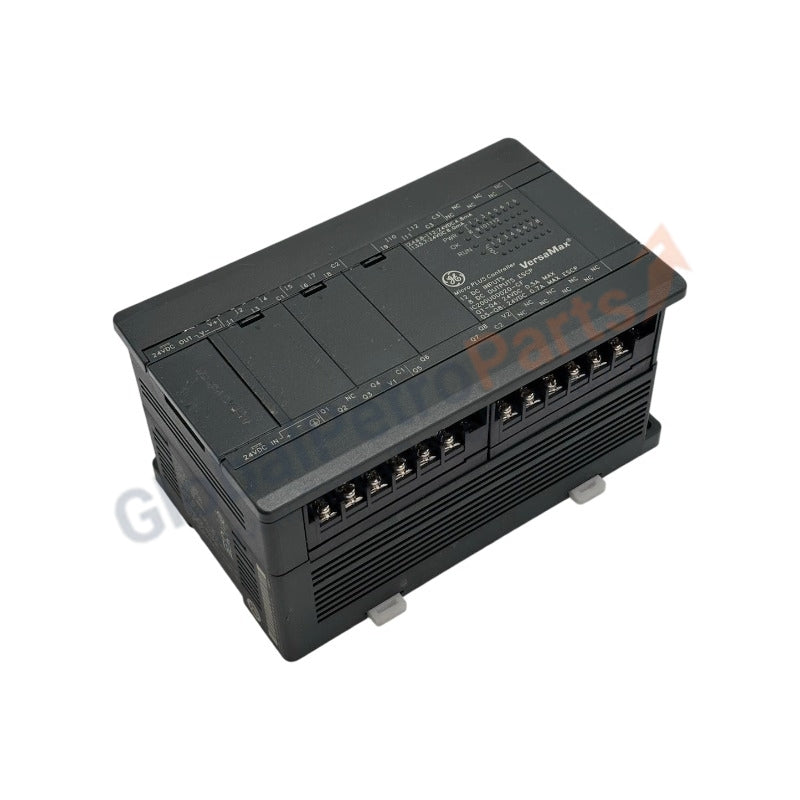

IC200UDD020 CPU Processors GE VersaMax Micro

Configured for high-speed discrete logic processing in localized industrial machinery loops, the GE IC200UDD020 (IC200UDD020 Micro Controller) provides direct physical/electrical execution. The assembly monitors physical electrical states on its internal DC input circuit arrays and sequences the commutation loops of its integrated source-type transistor outputs based on application programs stored in internal logic registers.

Hardware Specifications

Profinet Networks and I/O Density Scaling

The logic engine utilizes internal communication traces that manage binary data routing without reducing the baseline backplane bus communication velocity across adjacent expansion frames. This modular setup allows immediate I/O density scaling via local expansion links, feeding compiled input and output registers directly into memory slots accessible by communication interfaces connected over Profinet / EtherNet/IP deterministic networks. System operations remain bound to local registries via firmware flash compatibility routines programmed into the primary CPU boot block, ensuring synchronous data transfer across expansive drops.

Frequently Asked Questions

Q: Does the physical configuration of the IC200UDD020 permit hot-swap hardware replacement while under active load?

A: No. The monolithic micro controller enclosure incorporates terminal blocks linked directly to the main processor board. Main and auxiliary 24 VDC power lines must be completely isolated before modifying connections or replacing the unit to avoid high-voltage transient breakdown.

Q: How do the high-speed counter channels function within the standard controller execution loop?

A: The four counter channels map straight to the first few physical discrete inputs. They parse incoming square wave pulses at up to 100 kHz independently of the core software ladder sweep, preventing signal dropouts during high-frequency encoder execution.

Q: What action occurs if the auxiliary power feed falls below the specified operating thresholds?

A: When internal voltage validation circuits confirm that the incoming supply line has dropped below 19.2 VDC, logic execution freezes immediately, and the unit sets all 12 source transistor outputs to an unenergized off-state to prevent invalid field actuation.

Field Installation Guidelines

• Mechanical Enclosure Anchoring: Seat the controller base vertically on standard 35 mm symmetric DIN rails. Ensure the rear spring-loaded locking clips latch completely onto the rail surface to prevent mechanical shifting from industrial machinery vibration.
• Conductor Wire Metric Constraints: Strip the outer jacket insulation of all field sensor and actuator copper wires back by exactly 5 mm before clamping them into the terminal block matrices.
• Terminal Screw Fastening Torque: Secure all field wire terminations inside the terminal blocks using a torque screwdriver driven to a precise mechanical specification of 0.5 Nm.
• Conduit Path Layout Segregation: Route low-voltage RS-232 communication lines and 24 VDC discrete sensor tracks inside separate enclosure wireways isolated by a minimum distance of 10 cm from high-power AC lines.
