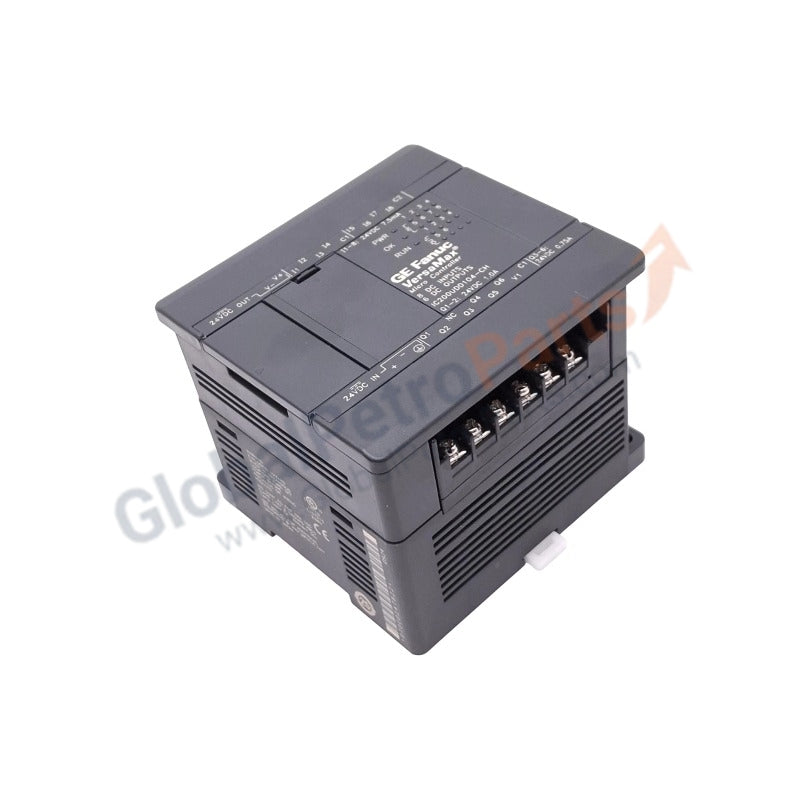

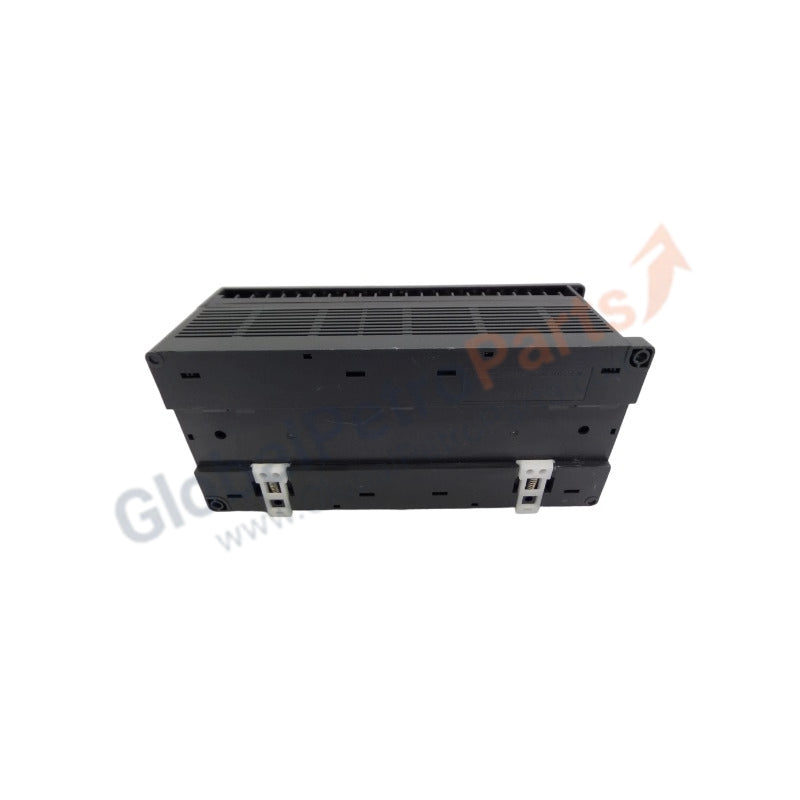

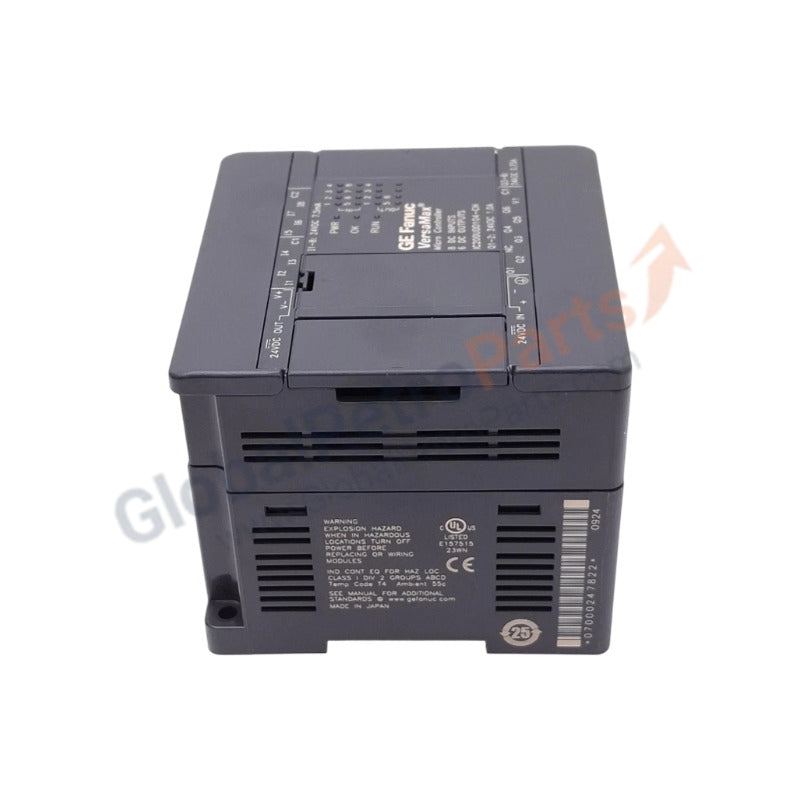

IC200UDD104 CPU Processors GE VersaMax Micro

Configured for high-speed discrete logic processing in standalone or networked applications, the GE IC200UDD104 (IC200UDD104 Micro Controller) provides direct physical/electrical execution. The hardware platform directly monitors integrated DC input circuits and actuates embedded transistor output paths to regulate localized machinery loops and sequential timing operations via dedicated local registers.

Hardware Specifications

Profinet Networks and Firmware Flash Compatibility

The logic processing card incorporates an integrated communications subsystem configured to exchange process data frames over Profinet / EtherNet/IP deterministic networks via external gateway adapters or option boards. This decentralized connectivity facilitates modular I/O density scaling across standalone automation cells without penalizing internal Boolean scanning speed boundaries. The operating execution core relies completely on hardware firmware flash compatibility paths to authorize microcode adjustments, aligning local high-speed counter variables and serial Modbus tracking loops with host system architectures.

Frequently Asked Questions

Q: Does the compact frame of the IC200UDD104 support active hot-swap replacement routines during power-up loops?

A: No. The monolithic micro controller platform does not separate processing logic from field power rails. Main input power must be isolated from the terminal strips before starting component extraction or physical wire modification to prevent localized transistor breakdown.

Q: How are high-speed pulse outputs configured on the integrated transistor execution lines?

A: The onboard transistor terminals support pulse train output (PTO) and pulse width modulation (PWM) commands. Configuration parameters must be defined within the system software environment and synchronized through the flash block to lock the switching frequency limits.

Q: What actions occur within the controller assembly if the external 24 VDC source Drops below baseline thresholds?

A: If the voltage drops below 19.2 VDC, the internal monitoring circuit flags a low-power fault status. The CPU forces all embedded source outputs to drop immediately into an off-state and suspends sequential execution sweeps until input levels stabilize.

Field Installation Guidelines

• DIN-Rail Anchorage Protocol: Snap the enclosure directly onto a standard 35 mm symmetric DIN rail frame. Ensure the rear spring-loaded locking clips slide back into place to prevent loose displacement under industrial vibration profiles.
• Wire Stripping and Clamping Metrics: Strip the outer conductor insulation back by precisely 5 mm. Terminate field wires securely inside the screw clamping matrices, tightening to a specified mechanical limit of 0.5 Nm.
• Ground Track Continuity: Connect a low-impedance 14 AWG copper wire from the dedicated functional earth chassis terminal screw straight to the master grounding bus panel layout.
• Conduit Field Separation: Route low-voltage serial data channels and discrete DC sensor lines through dedicated wiring channels located a minimum distance of 10 cm from high-power AC lines.
