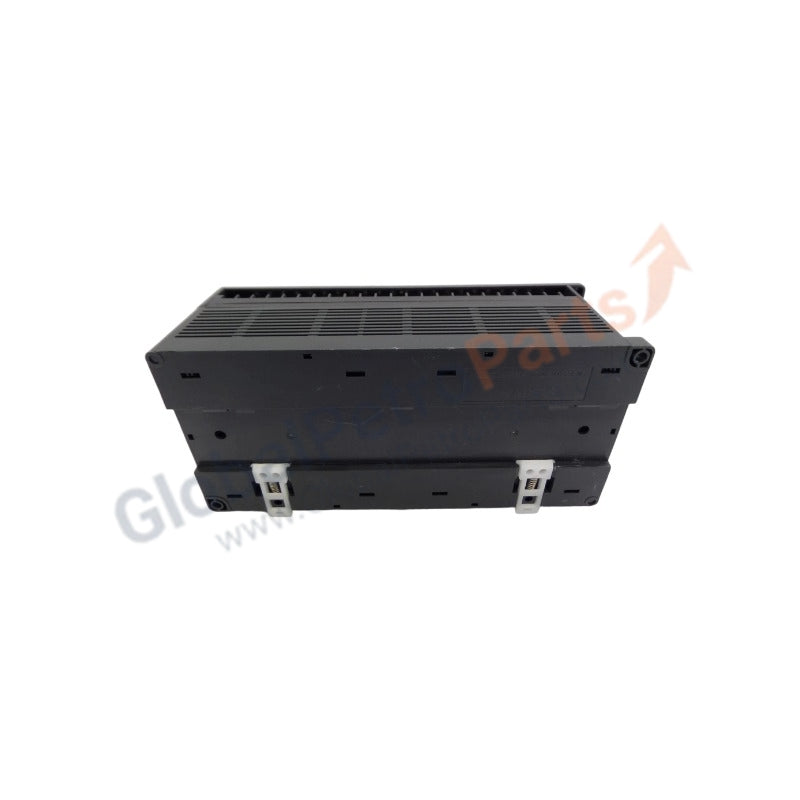

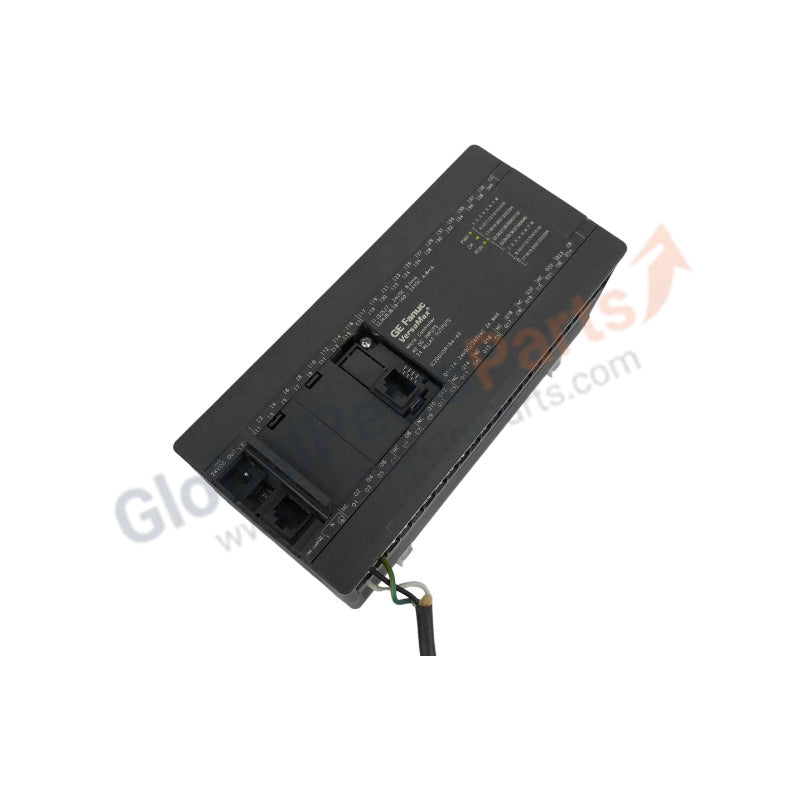

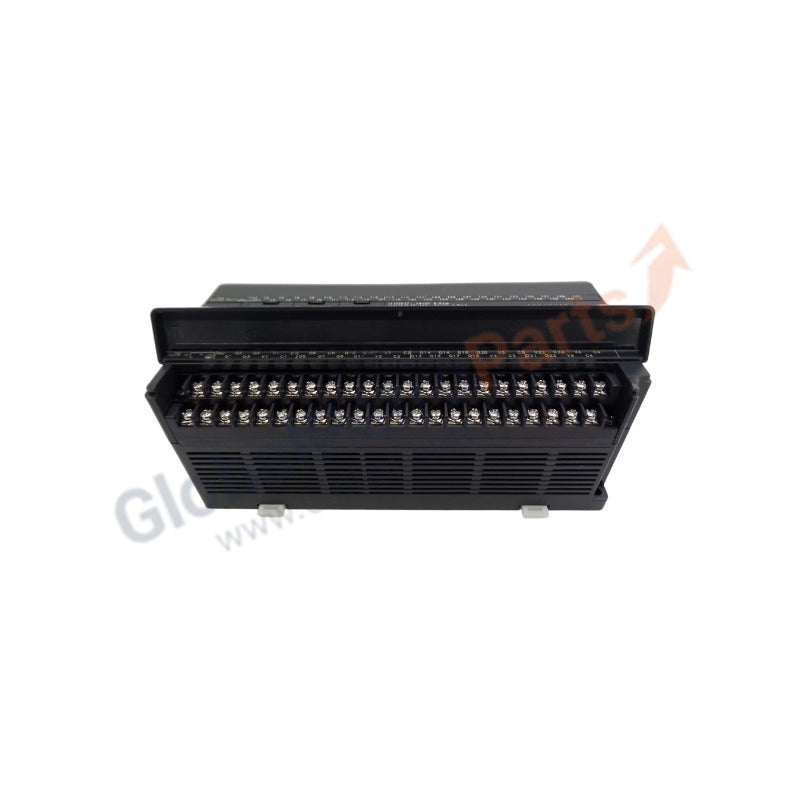

IC200UDD164 GE Micro CPU Processors

The GE IC200UDD164 serves as the primary IC200UDD164 Micro Controller utilized to execute discrete logic processing tasks across VersaMax Micro platforms. The hardware configuration samples active electrical states on its embedded DC input lines and sequences the commutation loops of its integrated transistor output circuits based on the application program instructions stored within local logic memory blocks.

Hardware Specifications

Profinet Networks and Firmware Flash Compatibility

The micro controller processing architecture embeds integrated logic lines to handle real-time serial tracking data, permitting data mapping onto Profinet / EtherNet/IP deterministic networks through localized network interface expansion blocks. This decentralized communication structure provides flexible I/O density scaling across standalone automation segments without slowing down the core processing logic sweep. System parameters and network configuration matrices are validated via direct firmware flash compatibility checks, which lock synchronous state updating loops and prevent the degradation of internal data packet delivery rates across expansive multi-drop configurations.

Frequently Asked Questions

Q: Does the monolithic housing design of the IC200UDD164 permit hot-swap replacement when local expansion blocks are connected?

A: No. The micro controller base features non-isolated terminal blocks tied straight to the internal processor board. Main system DC power must be completely disconnected before starting replacement or wiring changes to prevent transient overcurrent faults within the electronic logic structures.

Q: How do the high-speed counter channels interface with physical encoder inputs?

A: The four high-speed counter paths are linked directly to the first few discrete input terminals. They process raw pulse train signals up to 100 kHz, tracking positions or frequencies independently of the standard logic ladder cycle time.

Q: What action does the controller execute if the incoming 24 VDC power drops out of the specified range?

A: When the internal power monitoring sub-assembly registers a line drop below 19.2 VDC, it enforces an immediate fail-safe shutdown. This stops logic processing sweeps and switches all 12 source transistor outputs to an unenergized off-state.

Field Installation Guidelines

• Mechanical Panel Attachment: Mount the assembly vertically onto standard 35 mm symmetric DIN rails. Ensure that the plastic rear rail alignment guides lock fully onto the rail surface to prevent loose shifting from industrial machine vibration.
• Conductor Wire Strip Metrics: Strip the outer insulation coating of all discrete sensor and actuator copper wires back by exactly 5 mm before clamping them into the terminal block matrices.
• Terminal Screw Fastening Torque: Secure each integrated terminal clamping screw using a calibrated tool driven to a precise torque limit of 0.5 Nm to avoid intermittent circuit resistance.
• Conduit Path Layout Segregation: Route low-voltage serial data cables and 24 VDC discrete instrumentation lines inside separate enclosure wireways isolated by at least 10 cm from high-power AC motor supply grids.
