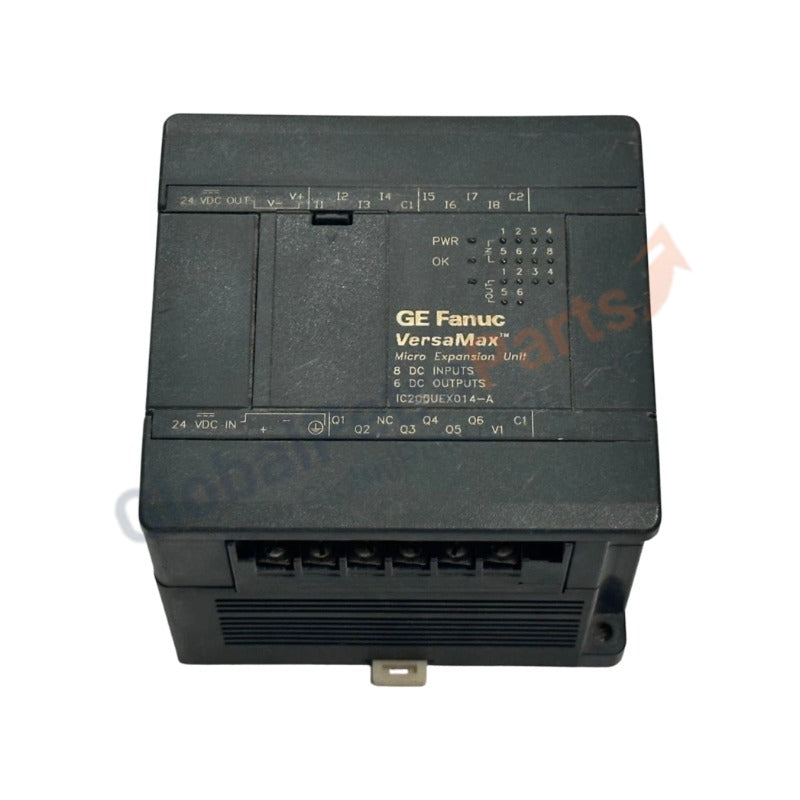

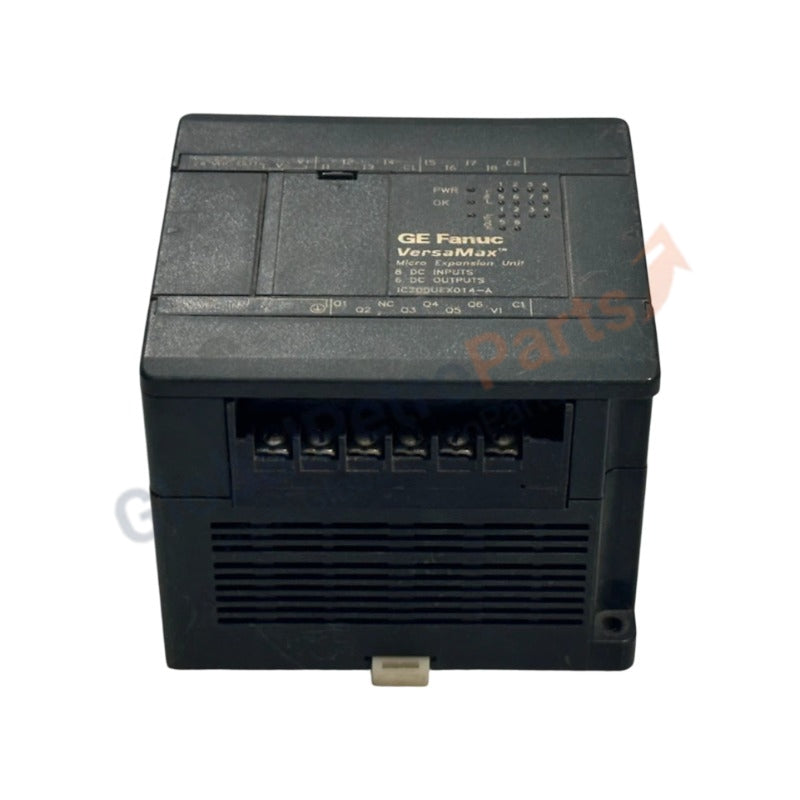

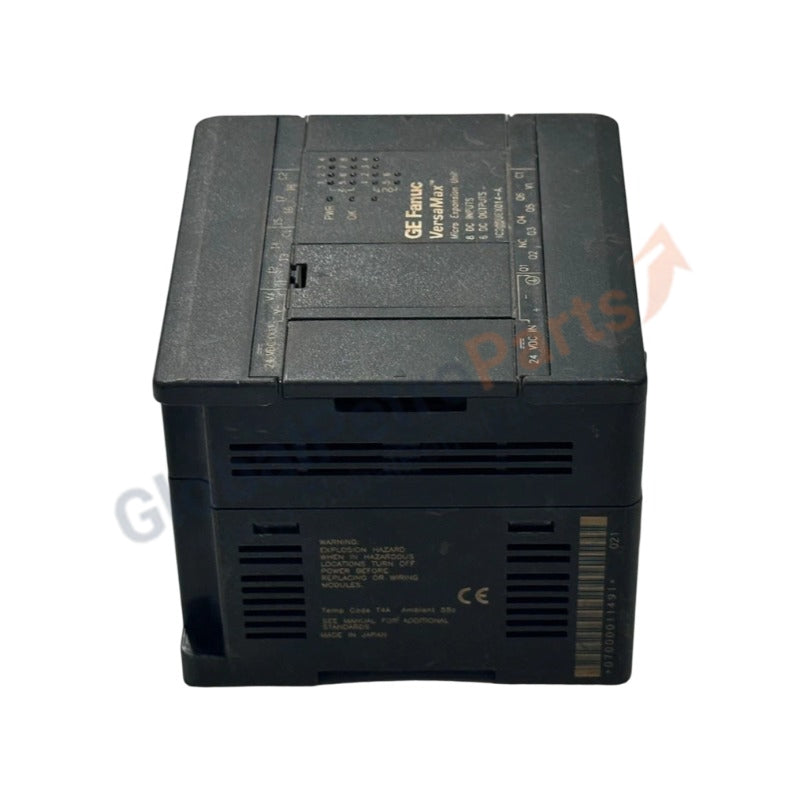

IC200UEX014 Digital I/O Cards GE VersaMax Micro

The GE IC200UEX014, also cataloged as the IC200UEX014 Micro Expansion Module, operates as a dedicated hardware component for physical loop monitoring and discrete signal switching within VersaMax Micro Controller systems. The assembly provides structural expansion by directly interfacing additional field sensors and actuators to the core controller backplane processor via localized input optocouplers and mechanical relay contact blocks.

Hardware Specifications

I/O Density Scaling and Deterministic Networks

The hardware block functions as an extension of the primary controller base, tracking localized register data variables without imposing reductions on the native backplane bus communication velocity metrics across the neighboring expansion drop. This configuration facilitates discrete I/O density scaling inside compact control enclosures, passing binary input state maps and output command vectors straight to master interfaces processing data over Profinet / EtherNet/IP deterministic networks. Proper loop execution rates are enforced through initial hardware verification arrays defined by specific firmware flash compatibility matrices executed by the master CPU during start sequences.

Frequently Asked Questions

Q: Does the electrical configuration of the IC200UEX014 support real-time hot-swap replacement rules?

A: No. The micro controller expansion chassis does not incorporate decoupled logic pin line gates. Main power to both the primary base controller and the auxiliary 24 VDC external bus inputs must be completely isolated before extracting the unit to avoid logic register state corruption or component breakdown.

Q: What fail-safe behavior occurs if the synchronization link to the base micro controller is interrupted?

A: When internal validation timers detect a lapse in communication sync across the localized bus link, internal logic drops power to the relay coil drivers immediately, forcing all 6 Form A output contacts into their unenergized, normally open fail-safe state.

Q: Can the 8 discrete inputs be wired to interface with both sink and source field devices concurrently?

A: The inputs are arranged in groups that share common reference terminals. While a single group must be wired uniformly to reference either common positive or common negative lines, separate input groups can be split to manage mixed sink and source wiring configurations on the same module.

Field Installation Guidelines

• Mechanical Rail Attachment: Snap the expansion housing vertically onto symmetrical 35 mm standard DIN rails. Verify that the rear integrated slide locking clip engages completely to isolate the unit from high vibration.
• Conductor Wire Metric Constraints: Strip the outer insulation of all 24 VDC discrete loop and AC relay contact copper wires back by exactly 6 mm before inserting them into the terminal block cages.
• Terminal Screw Fastening Torque: Tighten all termination point screws using a calibrated torque tool driven to a precise mechanical limit of 0.5 Nm to prevent high contact resistance.
• Conduit Path Separation Constraints: Route low-voltage 24 VDC input lines and high-voltage AC relay switching tracks inside separate enclosure wireways isolated by at least 10 cm to eliminate inductive noise coupling.
