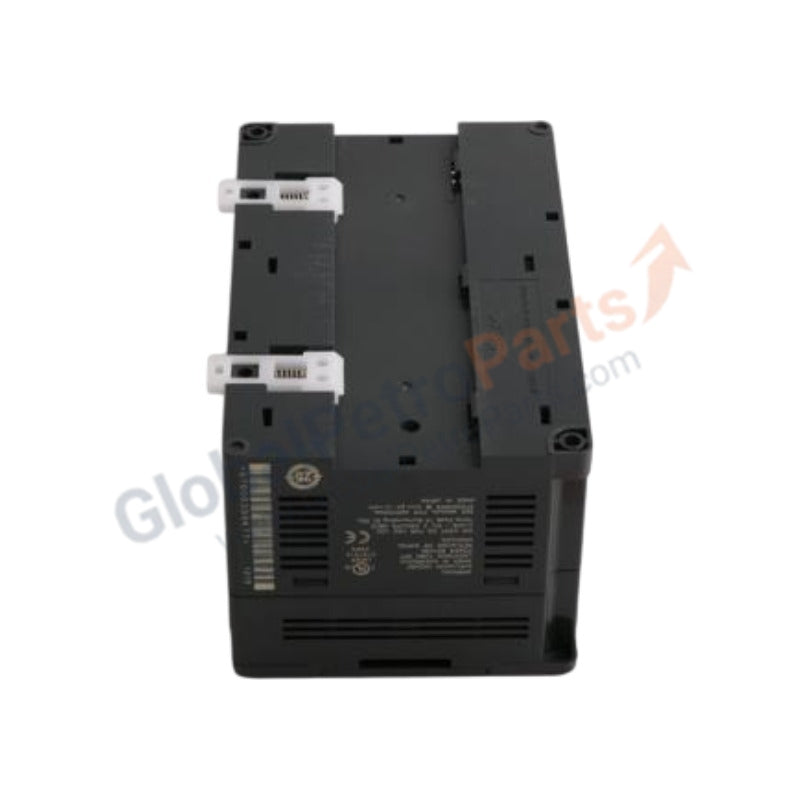

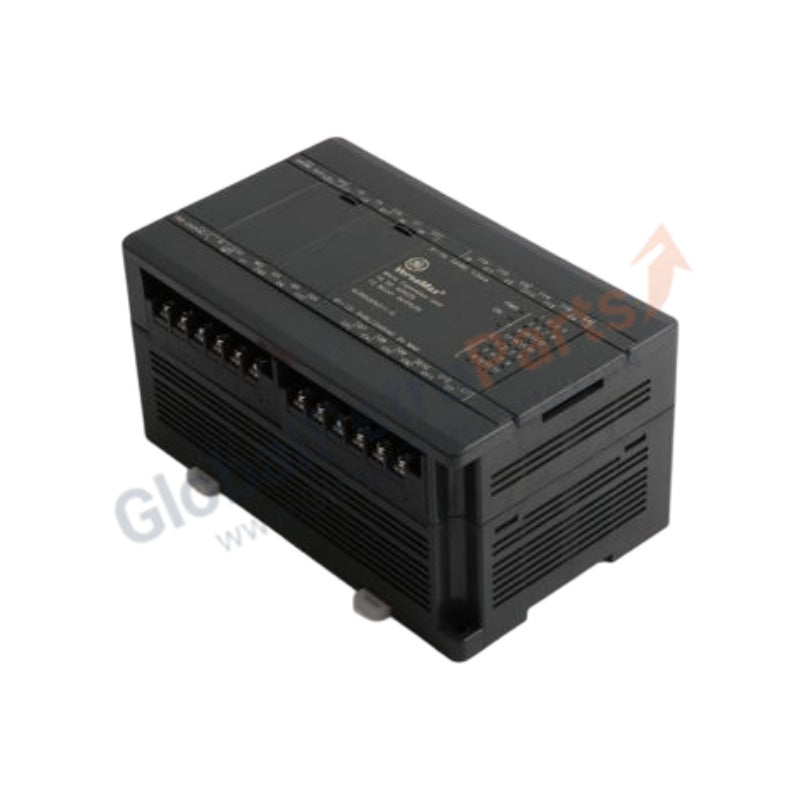

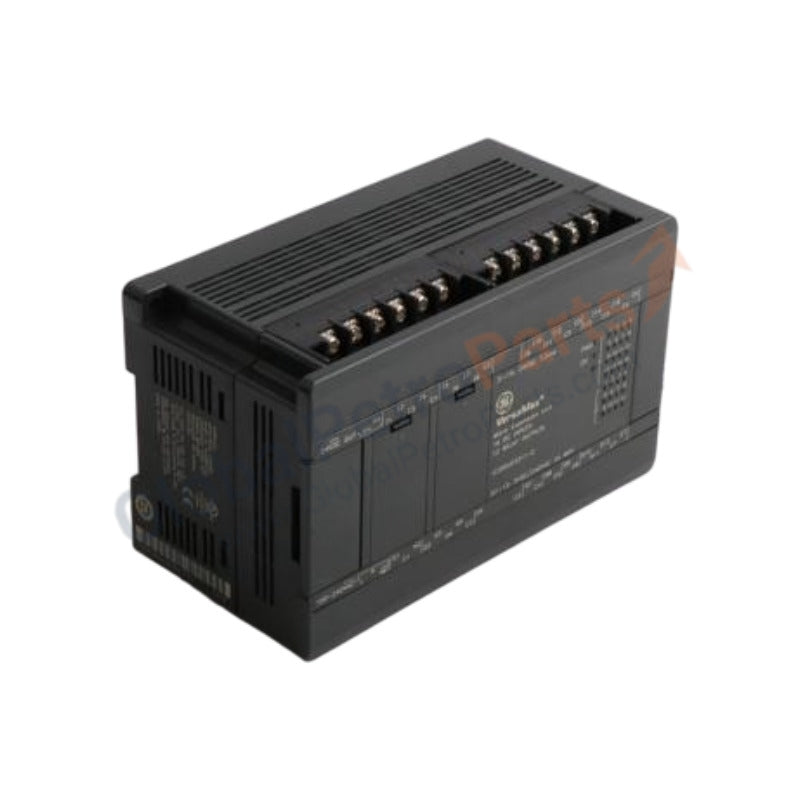

IC200UEX211 Digital I/O Cards GE VersaMax Micro

Configured for discrete signal density expansion in VersaMax Micro PLC topologies, the GE IC200UEX211 (IC200UEX211 Expansion Module) provides direct physical/electrical execution.

Hardware Specifications

Backplane Bus Communication Velocity and Determinism

The expansion module links directly to the host micro controller via the proprietary expansion bus interface, maintaining high-frequency data throughput and strict input/output density scaling. The module utilizes localized registers synchronized to the controller execution sweep to minimize loop latency. Onboard firmware flash compatibility permits verified synchronization with newer generation CPU logic blocks while preserving determinism across the local I/O bus network without hardware degradation.

Frequently Asked Questions

Q: Does the expansion bus cable support hot-swapping while the host controller is powered?

A: No, the expansion bus does not support hot-plugging. Disconnecting or seating the expansion cable while power is applied to the host PLC or the expansion base can cause backplane data corruption and trip an internal configuration fault.

Q: What are the electrical limitations of the single transistor output channel?

A: Channel 11 is a dedicated DC transistor output capable of high-speed switching configurations. It manages external loads up to 1.0 A continuous at 24 VDC and handles pulse-train generation or pulse-width modulation sequences up to 5 kHz.

Q: How is the local I/O status indicated on the physical hardware?

A: The chassis incorporates a front-facing LED matrix containing discrete channel diagnostic lamps. Individual green indicators map out the active on/off logic states of each input point and output loop to assist during site debugging loops.

Field Installation Guidelines

• Chassis Fixation Method: Mount the module securely onto a standard 35 mm DIN-rail or execute panel mounting using the built-in screw holes. Verify that the metal chassis earthing element creates a solid low-impedance connection with the grounded mounting plate.
• Wiring Configurations: Separate the 24 VDC discrete sensor lines and relay circuit paths from heavy 3-phase AC motor power routing inside the ducting. Use the integrated screw-clamp terminal blocks and apply a uniform torque limit of 0.5 Nm.
• Relay Protection Rules: When switching external inductive configurations such as solenoid valve coils, deploy a parallel reverse-biased free-wheeling diode for DC loops, or an RC snubber circuit for AC lines, to eliminate inductive kickback interference.
