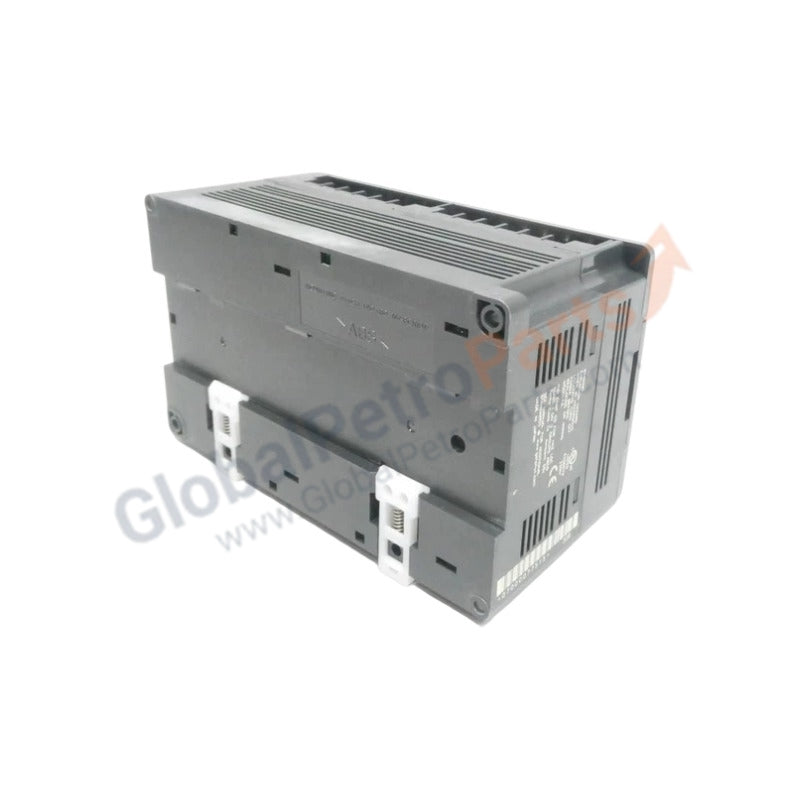

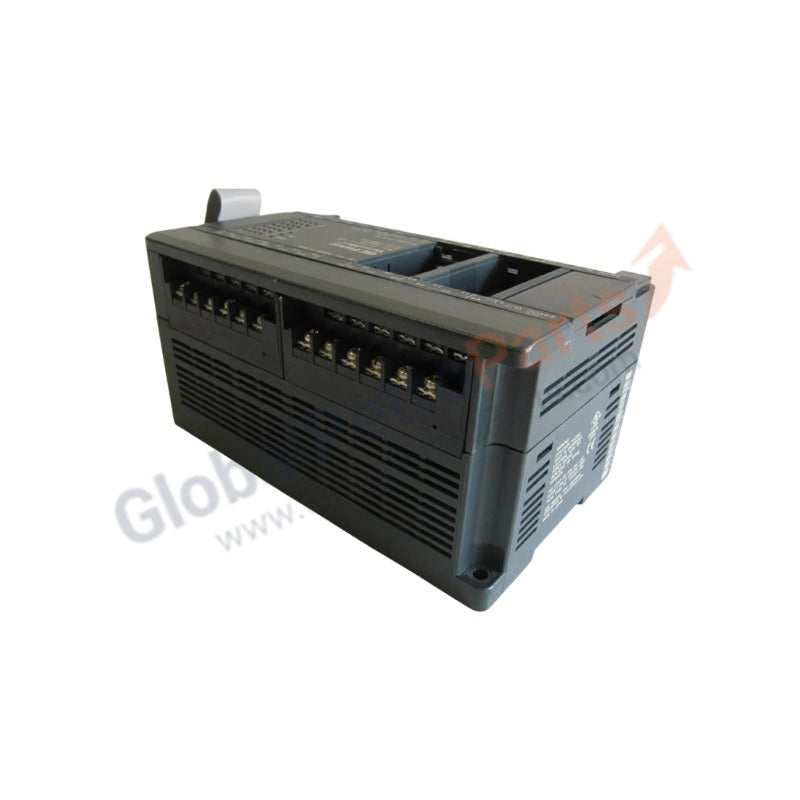

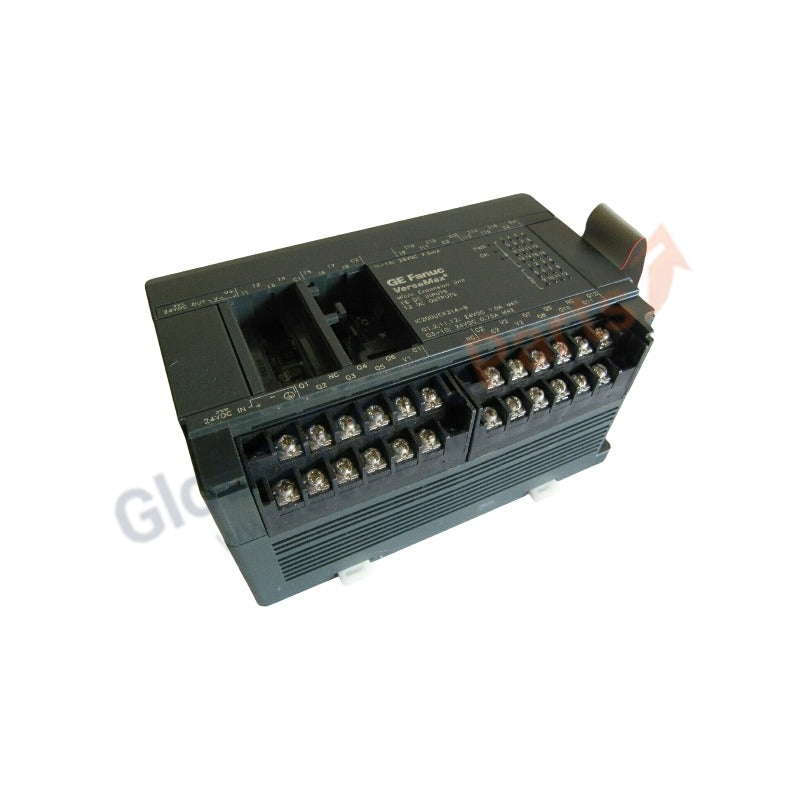

IC200UEX214 Digital I/O Cards GE VersaMax Micro

The GE IC200UEX214, also cataloged as the IC200UEX214 Expansion Module, operates as a dedicated hardware component for mixed analog and discrete signal handling within VersaMax Micro automation platforms. Configured to interface with local low-level field telemetry and discrete sensing devices, the module converts mechanical and electrical input states into data bits transmitted back to the master controller registers via a native expansion bus interface.

Hardware Specifications

Deterministic Networks and I/O Density Scaling

This mixed-signal expansion module interfaces directly with the primary processor base to increase local channel counts without restricting backplane bus communication velocity. The architectural configuration enables targeted I/O density scaling inside localized automation clusters, feeding converted data blocks directly into memory maps accessible by host gateways routing over Profinet / EtherNet/IP deterministic networks. Timing constraints and filter registers remain synchronized via native firmware flash compatibility paths programmed into the host controller, stabilizing update loops and mitigating signal degradation across the multi-drop assembly.

Frequently Asked Questions

Q: Does the physical configuration of the IC200UEX214 expansion card support hot-swap insertion when the primary controller is running?

A: No. The local expansion interface connects via a non-isolated multi-pin ribbon system. Main system power and all external loop branches must be completely isolated before installing or extracting the hardware to prevent diagnostic bus logic crashes or transistor failure.

Q: How are the analog input current and voltage modes physically configured on the terminal block?

A: Selection between 0-10 VDC and 4-20 mA operation requires a combination of external terminal jumper allocation on the screw strip and precise channel register configuration within the programming software environment.

Q: What fail-safe state actions occur if the expansion ribbon connection drops during a logic sweep?

A: Upon a communication link interruption exceeding internal timeout limits, the module drops its embedded discrete source transistors to a zero-voltage state and sets the analog outputs to 0 mA or 0 VDC based on hardware defaults.

Field Installation Guidelines

• Mechanical Mounting Realignment: Snap the module housing squarely onto a symmetric 35 mm DIN rail. Secure the expansion bus ribbon connector firmly into the matching receptacle on the master controller base before applying power.
• Conductor Wire Metric Constraints: Strip all field instrumentation and discrete signaling copper wires back by exactly 5 mm before clamping them inside the screw terminal matrix.
• Terminal Screw Fastening Torque: Tighten each integrated terminal termination point screw to a fixed specification of 0.5 Nm to maintain circuit continuity under thermal cycles.
• Shield and Path Segregation: Route all low-level analog shield drain wires inside dedicated wiring tracks separated by at least 10 cm from high-voltage AC electrical lines to neutralize inductive cross-talk.
