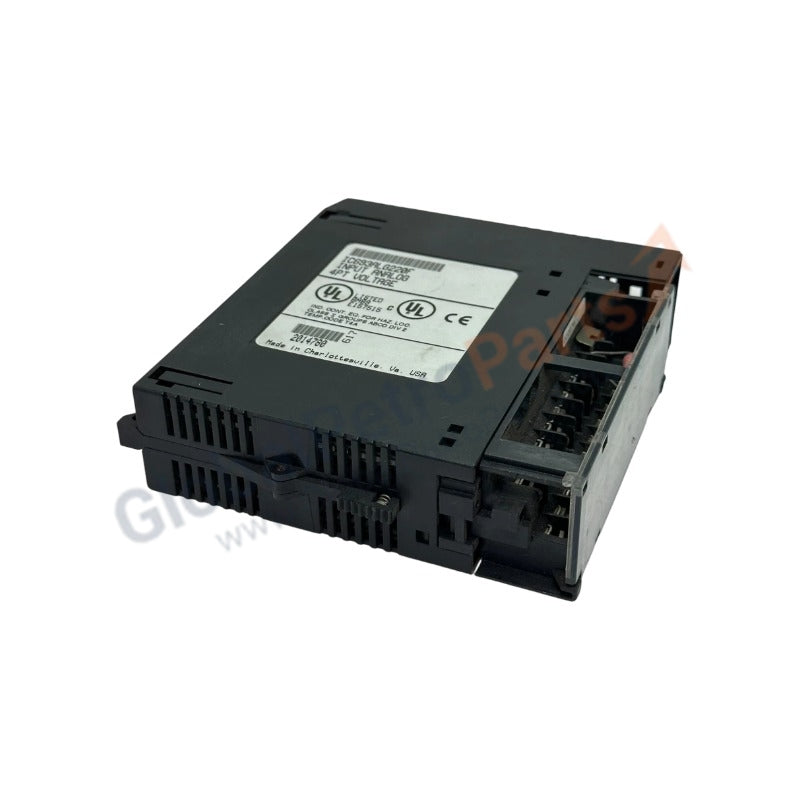

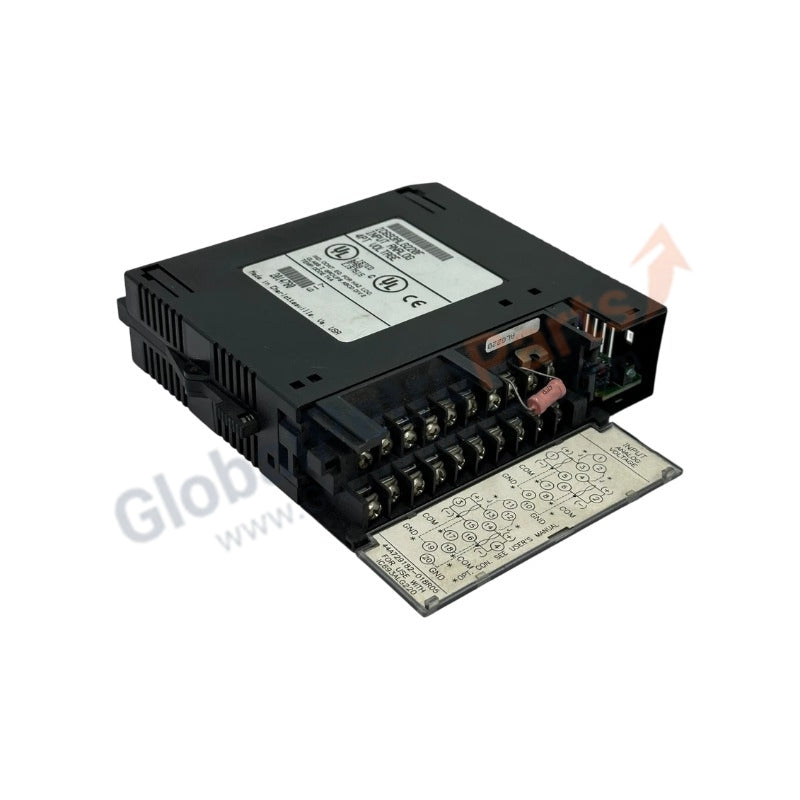

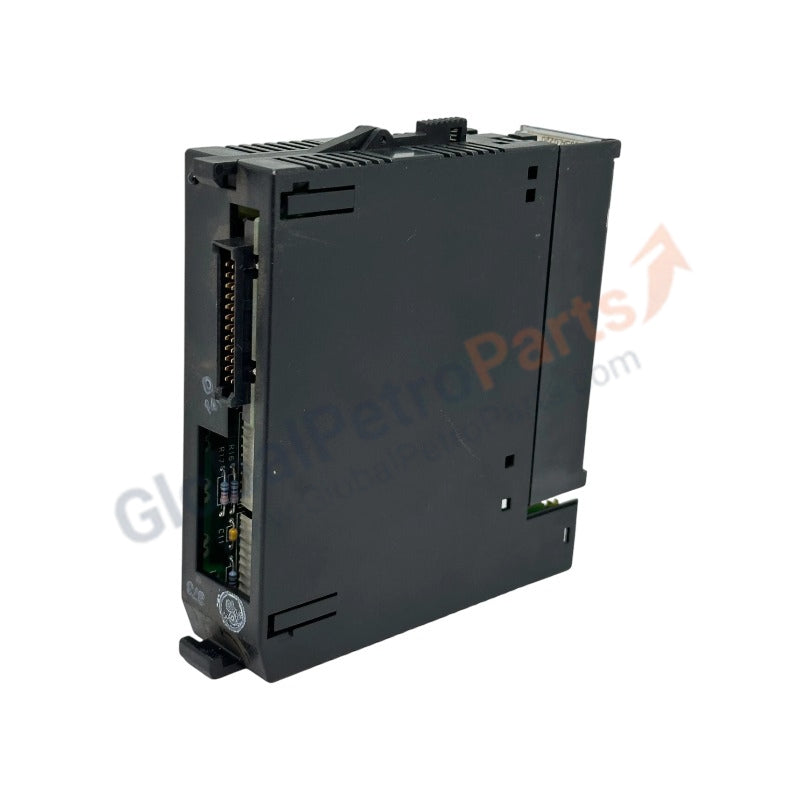

IC693ALG220 GE Fanuc Analog Input Modules Series 90-30

Configured for analog-to-digital processing in Series 90-30 PLC systems, the GE Fanuc IC693ALG220, also cataloged as the IC693ALG220 Analog Input Module, provides direct physical/electrical execution. This hardware component interfaces with voltage sensors to convert continuous analog signals into digital values for CPU calculation via the backplane bus interface. The module provides 4 single-ended input channels, mapped to a %AI input register table configured via programming software.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware

The module utilizes parallel communication across the Series 90-30 backplane bus, demanding minimal firmware flash compatibility thresholds from the CPU. To sustain high I/O density scaling and predictable update execution times under loaded chassis states, the backplane interface logic transmits converted data words to the CPU register memory within a fixed 4 ms cycle. Accurate updates depend on specific firmware revisions of the IC693 CPU; if firmware incompatibility exists, the CPU will fail to recognize the module configuration sequence during system power-up.

Frequently Asked Questions

Q: Does the IC693ALG220 support hot-swap insertion or removal while the PLC chassis is energized?

A: No. The Series 90-30 PLC backplane architecture does not feature live insertion capabilities. Removing or installing this module under power can corrupt backplane bus communication velocity and cause physical component damage.

Q: How does the module handle an input voltage that exceeds the designated -10 to +10 VDC range?

A: The module internal software clamps the converted counts at -2048 or +2047. Voltages beyond approximately +/- 11.25 VDC can trigger overvoltage protective mechanisms or result in channel-to-channel signal interference.

Field Installation Guidelines

• Chassis Power Down: Turn off the 24 VDC / 120 VAC primary supply to the power supply module prior to inserting or seating the module into the baseplate slot.
• Shield Grounding: Connect all signal shield wires directly to the chassis ground bar or the frame ground terminal located on the baseplate. Do not leave the shields floating or connected to the signal common terminal.
• Routing Limitations: Maintain separate conduits for signal cables running to the 4 analog channels and high-voltage AC or inductive motor drive wiring to minimize electromagnetic interference.
• Terminal block wire torque: Tighten terminal block screws to a maximum specification of 0.56 Nm to prevent cracking internal traces.
