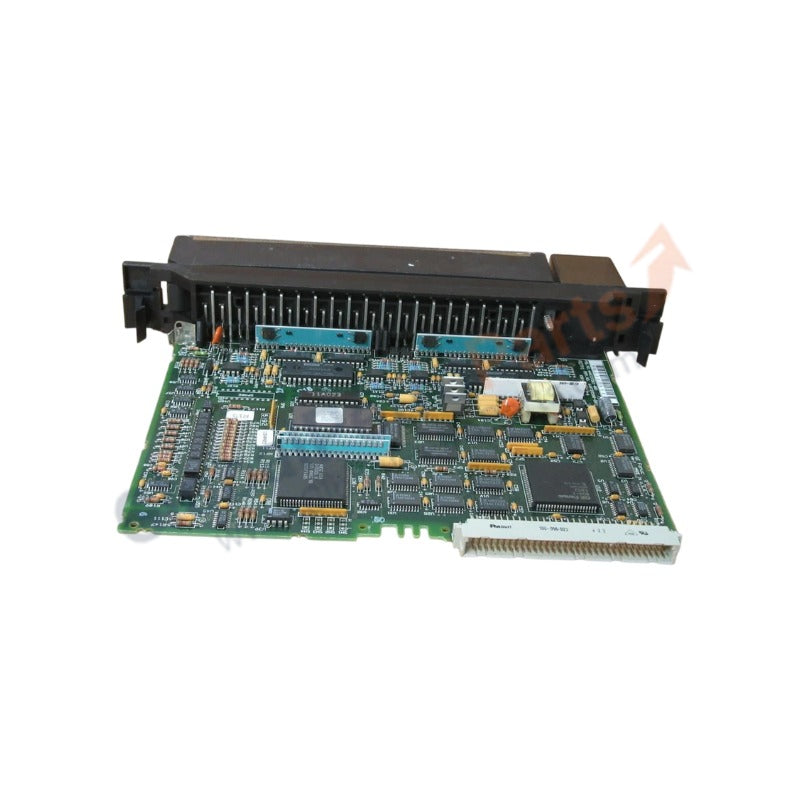

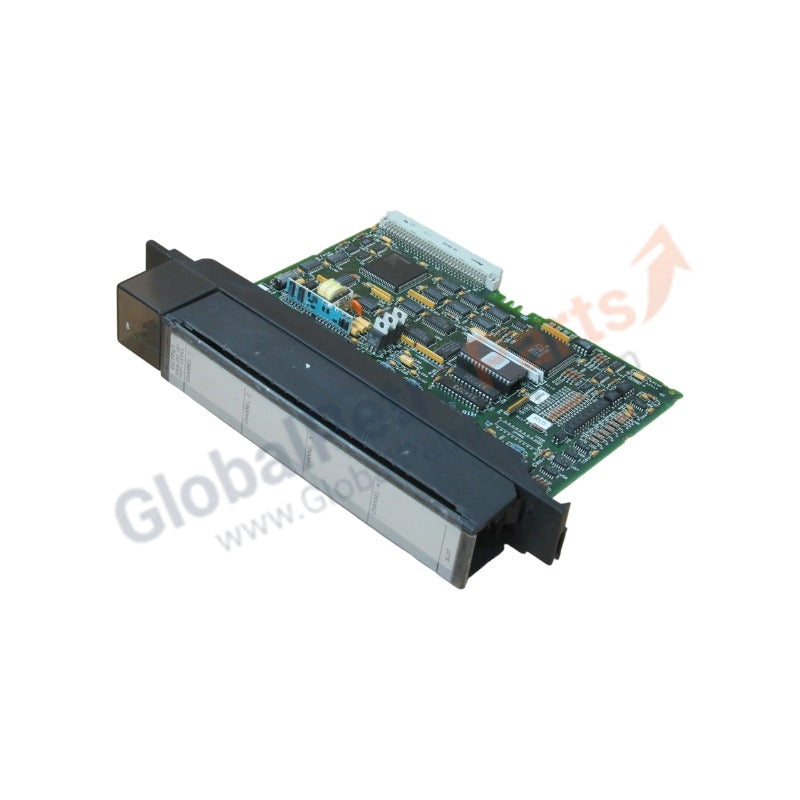

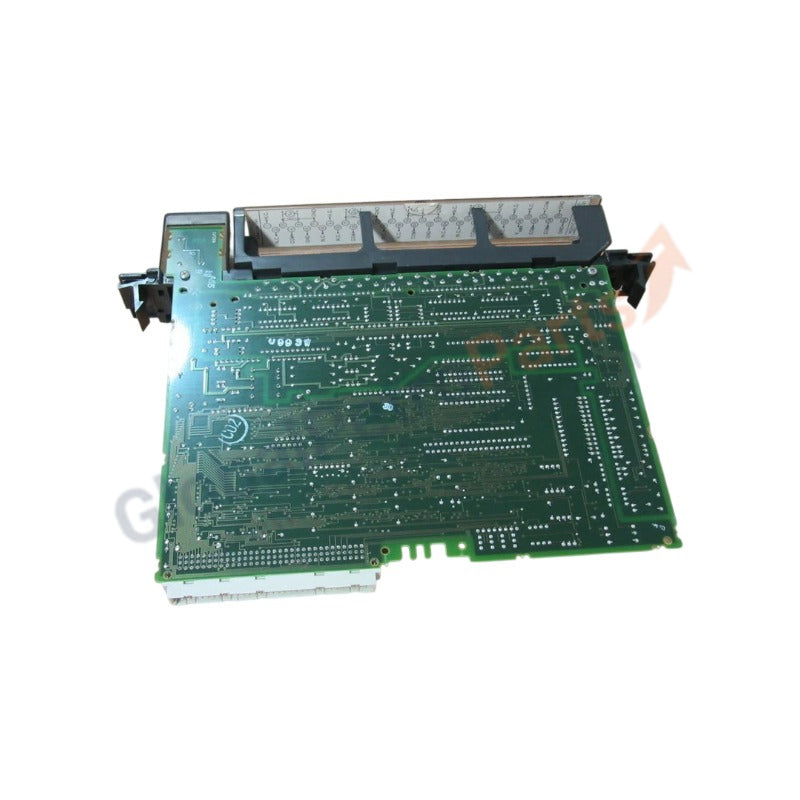

IC697ALG321 GE Fanuc Analog Output Modules Series 90-70

The GE Fanuc IC697ALG321, also cataloged as the IC697ALG321 Analog Output Module, operates as a dedicated hardware component for digital-to-analog signal conversion within Series 90-70 PLC systems. The module interfaces directly with the central processing unit over the backplane to drive field actuators, control valves, or speed regulators. It manages the precision execution of control loops by converting 12-bit binary values into standardized, linear electrical outputs across multiple isolated physical channels.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Flash Compatibility

The hardware interfaces directly with the host rack assembly using specialized logic arrays that scale alongside user-defined I/O density scaling profiles. Output conversion updates align with the backplane bus communication velocity to ensure predictable update processing loops independent of the overall program execution load. Correct synchronization across all channels depends on strict firmware flash compatibility baselines within the host Series 90-70 CPU card. Incorrect firmware configurations will disrupt initialization, rendering the analog outputs inactive during the power-up system handshake.

Frequently Asked Questions

Q: Does the IC697ALG321 support hot-swap hardware replacement while the PLC rack is powered?

A: No. The Series 90-70 backplane architecture does not feature live-insertion capabilities. Inserting or removing the IC697ALG321 module while backplane power is active can induce electrical transients, damaging internal components and corrupting the CPU logic registers.

Q: What is the default behavioral state of the analog output channels upon a loss of CPU communication?

A: The module can be configured via programming software to either hold its last valid output value or drop down to a predetermined default state (0 mA or 0 VDC) when backplane communication time-out limits are exceeded.

Field Installation Guidelines

• Chassis Power Isolation: Verify that the primary power source feeding the PLC baseplate is entirely disconnected before sliding the module into its designated slot.
• Shield Connection Layout: Terminate the outer shielding braid of all field signal cables directly to a external low-impedance master ground busbar. Do not route shield paths through the active I/O terminal connector pins.
• Signal Cable Separation: Route the low-voltage analog output wires in dedicated cable conduits separate from high-power AC lines or variable frequency drive conductors to avoid induced electrical noise.
• Terminal Screws Seating: Apply uniform mechanical force when fastening field wire terminals to prevent stress cracking on the internal printed circuit interfaces.
