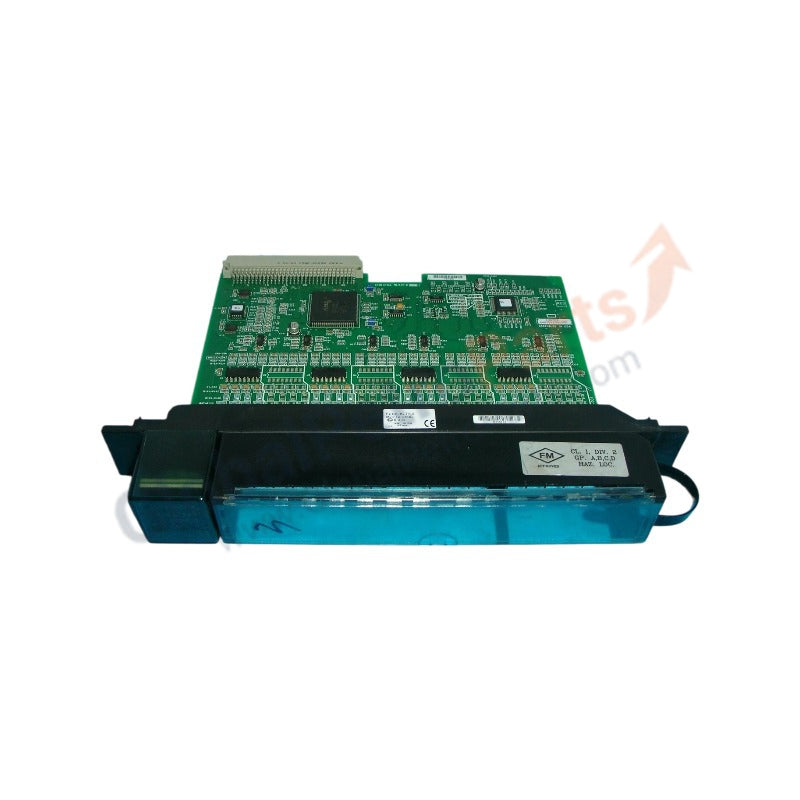

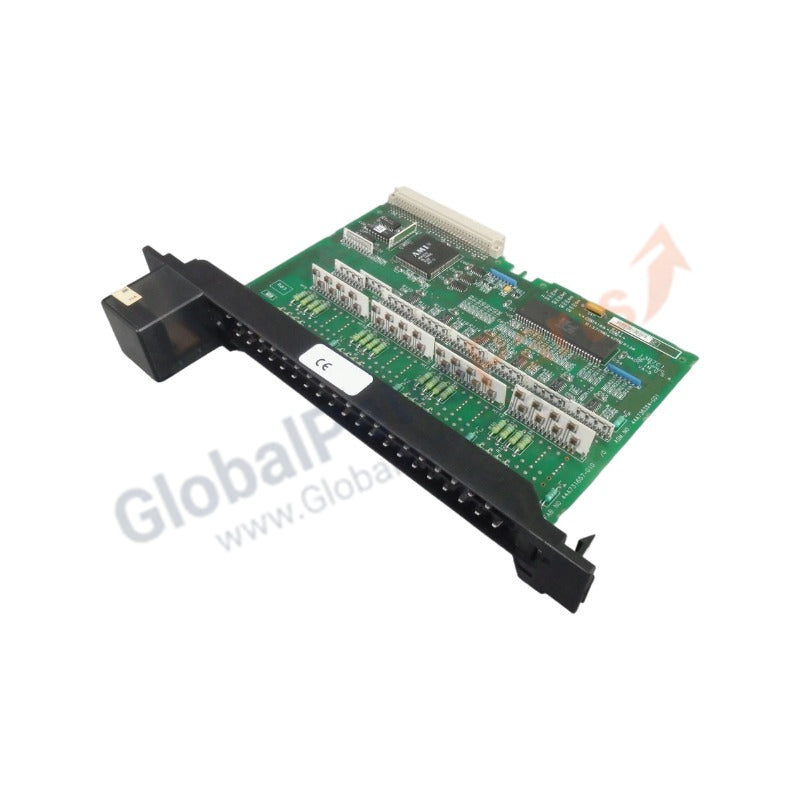

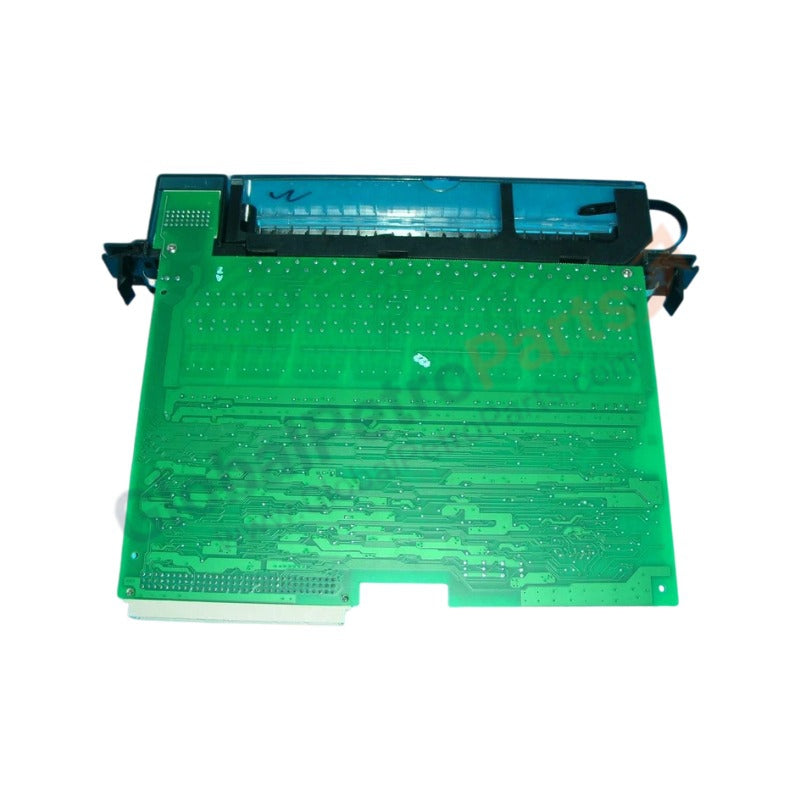

IC697MDL671 GE Digital Input Modules Series 90-70

The GE IC697MDL671 serves as the primary IC697MDL671 Input Module utilized to execute discrete state sensing across IC697 platforms. The hardware processes multi-channel physical input loops, converting external high-voltage signals into logic-level data bits mapped directly across the system parallel backplane structure.

Hardware Specifications

Backplane Bus Communication Velocity and Density Scaling

This module utilizes the parallel VME backplane framework to maintain high backplane bus communication velocity during asynchronous discrete logic sweeps. The 16 input paths accommodate multi-point density scaling within a single VME slot, mapping physical loop signals directly onto the controller register database. Configuration attributes are handled entirely through software definitions, enabling custom input filtering constants to mitigate contact bounce. The on-board memory registers align automatically with host processing sequences via factory firmware flash compatibility protocols, allowing deterministic updates without hardware jumper tuning.

Frequently Asked Questions

Q: Can the IC697MDL671 module be removed or inserted while the VME backplane is powered?

A: No. The IC697 platform does not support hot-swap capabilities. Removing or inserting this module while the chassis power supply is active will disrupt backplane bus timing and cause physical damage to the contact pins or backplane logic drivers.

Q: How does the module handle mixed AC and DC input voltages simultaneously?

A: Each channel features independent rectification circuitry, allowing the module to accept either AC or DC signals on the same terminal block. However, grouped circuits must conform to the common return constraints specified in the field wiring diagrams to prevent cross-phase leakage.

Q: What is the mechanical life constraint of the interface mechanism?

A: The physical connection relies on a heavy-duty edge card connector on the rear and a removable terminal block on the front faceplate. The terminal block must achieve full mechanical latch engagement before power is applied to the field circuits.

Field Installation Guidelines

• Chassis Alignment: Insert the module into the selected chassis slot using the upper and lower plastic guides. Press firmly until the rear connector is completely seated into the backplane, then lock the faceplate mechanical fasteners.
• Wiring Configurations: Connect field wiring using max 14 AWG conductors. Keep high-voltage field lines isolated from low-voltage data cables within the cable management trays.
• Terminal Screws Torque: Tighten all terminal screws to a maximum torque limit of 0.5 Nm to prevent high-resistance contact arcs or terminal strip degradation.
• Shield Grounding Maintenance: Route sensor shields directly to the chassis enclosure ground bar. Ensure the module faceplate maintains clean metallic contact with the grounded rack rail frame.
