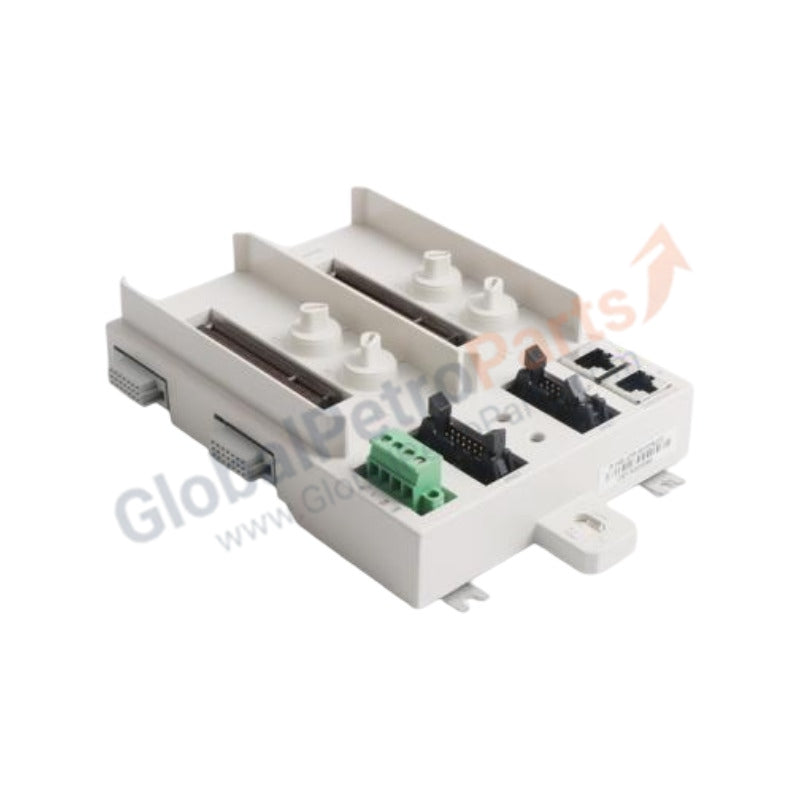

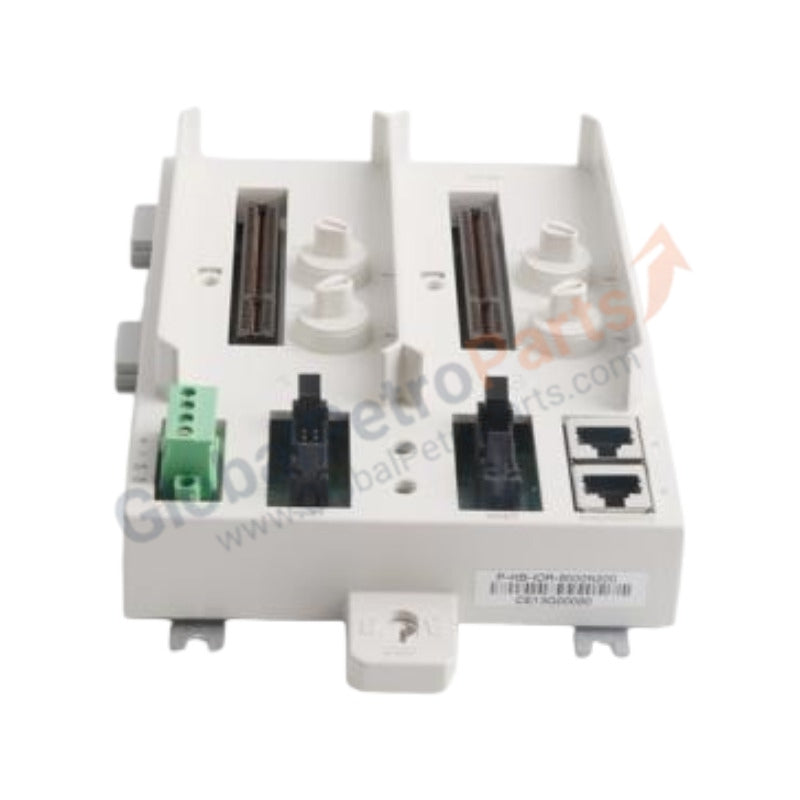

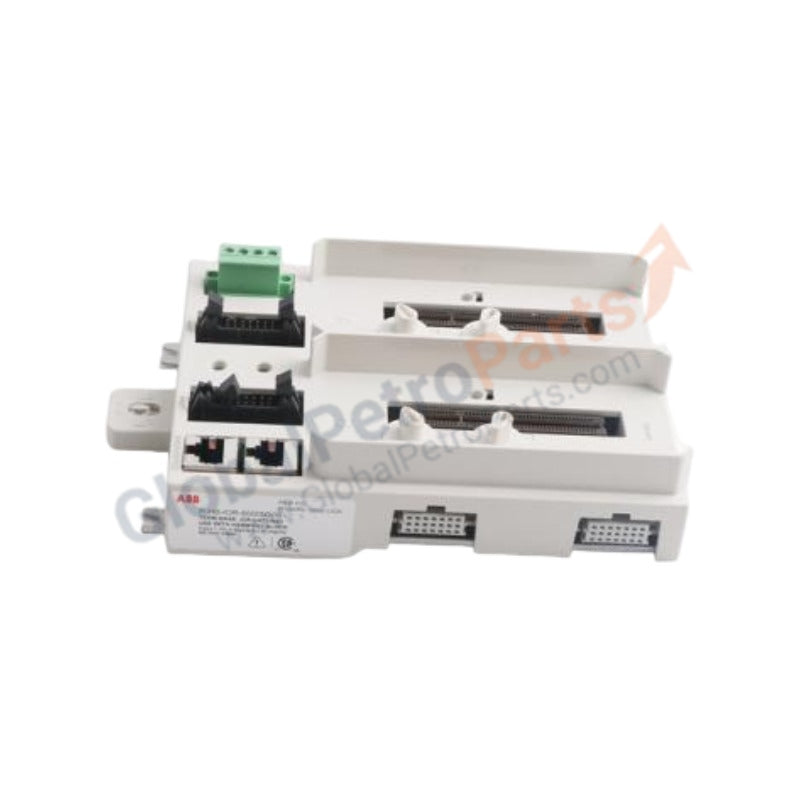

Mounting Bases ABB Harmony Series P-HB-IOR-8000N200
Manufacturer: ABB
Product No.: P-HB-IOR-8000N200
Product Type: Mounting Bases
Product Origin: USA
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months
The ABB P-HB-IOR-8000N200 serves as the primary P-HB-IOR-8000N200 Mounting Base utilized to execute physical module containment and signal interface routing across Harmony S800 I/O platforms. It establishes the electrical connectivity path for the primary gateway block to communicate with adjacent rack electronics.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P-HB-IOR-8000N200 |
| Brand | ABB |
| Origin | USA / Sweden |
| Weight | 0.65 kg |
| Dimensions | 160 mm x 120 mm x 55 mm |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | 0 W (Passive structural bus matrix) |
| Mounting Type | DIN-rail or panel-surface placement |
| Backplane Connection | Integrated multi-pin plug receptors |
| Component Alignment | Built-in guide slots and locking clips |
Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling
The passive backplane channels configured on this mounting structure provide parallel path execution for low-level logic line communication. To maintain interface integrity under demanding I/O density scaling requirements, the circuit tracks contain targeted cross-talk shielding metrics. Field data passed through the physical terminal seats transition directly onto the upper gateway transceiver, which maps local parameters to remote control frameworks running Profinet / EtherNet/IP deterministic networks without introducing transport layer delay or byte sequence corruption.
Frequently Asked Questions
Q: Can the gateway interface module be extracted from the P-HB-IOR-8000N200 mounting base while active?
A: No. Removing an active gateway module from the passive mounting base under load will sever critical data paths across the entire communication line, inducing immediate fault trips on downstream processing cards.
Q: Does the assembly feature separate onboard diagnostic LEDs?
A: No. The mounting base contains purely passive bus traces and structural terminals. Status indication indicators and error registers are executed entirely within the active processing gateway plugged into the base housing.
Field Installation Guidelines
- Electrostatic Grounding Measures: Engineering technicians must wear a verified anti-static grounding wrist strap connected to a solid chassis earth point before handling the base board or internal connectors.
- DIN-Rail Attachment Alignment: Secure the unit firmly onto standard 35 mm symmetric DIN-rails. Verify that all integrated backplane connection couplers snap into direct alignment before snapping structural lock tabs.
- Logic Cable Routing Dispersal: Route low-voltage serial bus cables through tracking paths separated from high-current AC primary feeding lines by a minimum distance of 100 mm to insulate data paths against inductive noise.
Return policy
We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.
Shipping
We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.
Warranty
We provide a 12-month warranty for all products, subject to normal use and proper installation.
